Transmission Fluid Cooler Hose/Pipe Replacement

Transmission Fluid Cooler Hose/Pipe Replacement

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Service and Repair.

2. Remove transmission fluid cooler inlet pipe. Refer to Transmission Fluid Cooler Inlet Pipe Replacement Transmission Fluid Cooler Lower Pipe Assembly Replacement - Auxiliary Cooler to Radiator.

3. Remove transmission fluid cooler outlet pipe (if equipped). Refer to Transmission Fluid Cooler Outlet Pipe Replacement Transmission Fluid Cooler Pipe Replacement - Front.

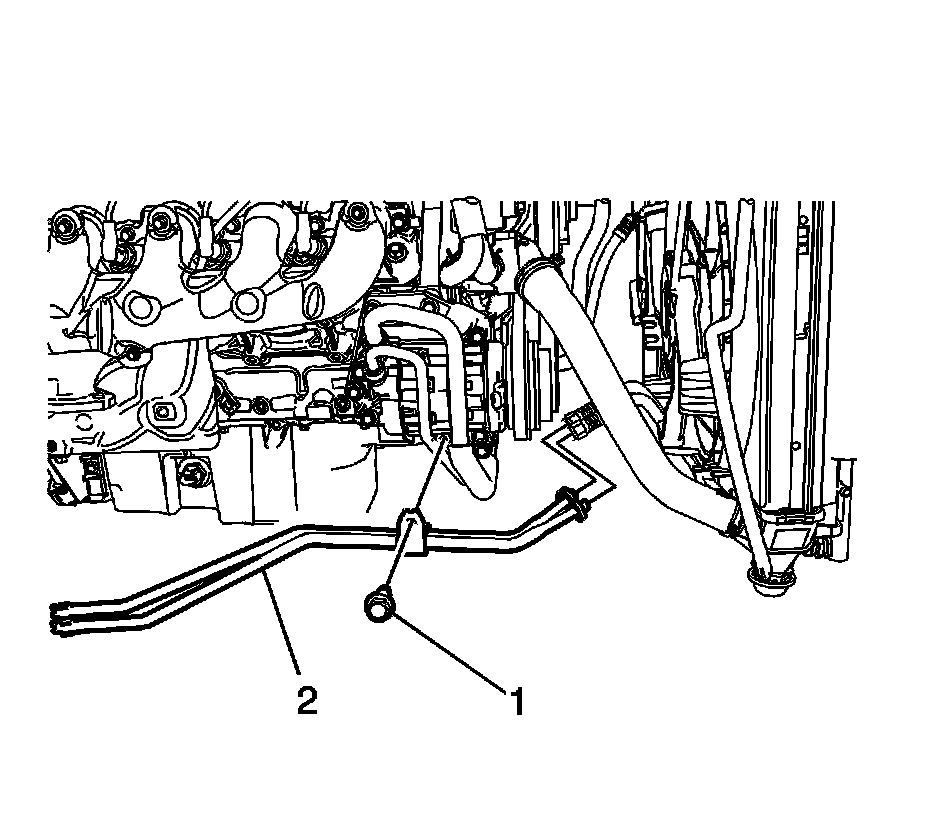

4. Remove transmission fluid cooler hose/pipe bolt (1).

5. Remove transmission fluid cooler hose/pipe (2) from air conditioning bracket.

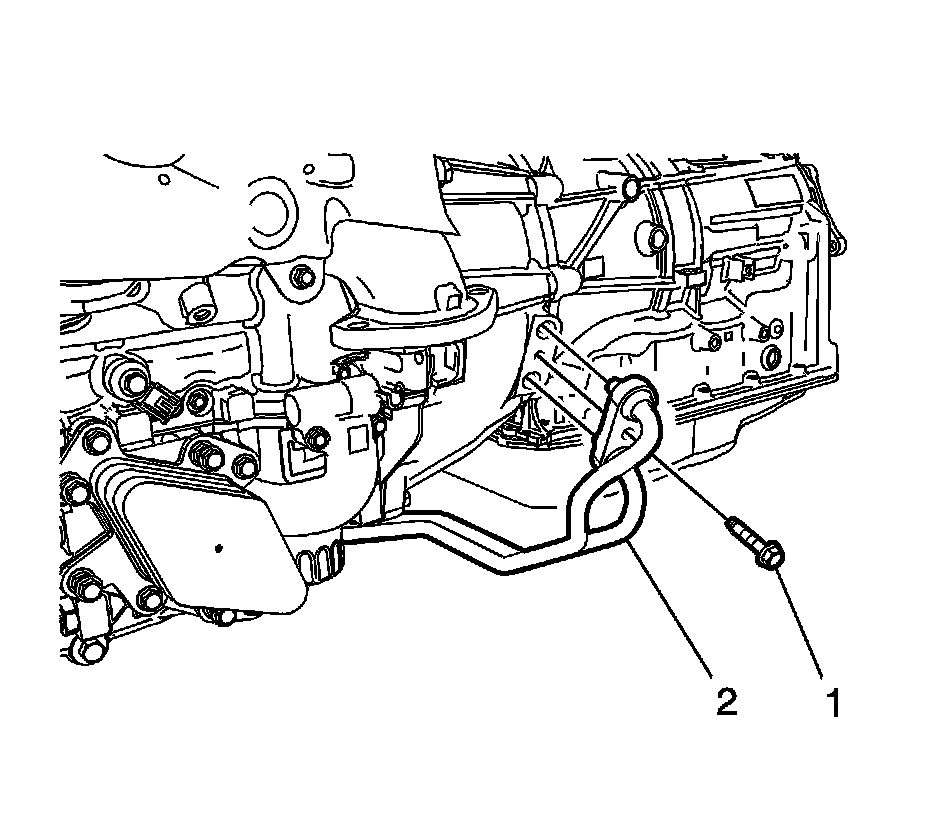

6. Remove transmission fluid cooler hose/pipe bolt (1).

7. Remove transmission fluid collar hose/pipe (2) from transmission and discard old seals.

Installation Procedure





1. Install transmission fluid collar hose/pipe (2) to the transmission with new seals.

2. Install transmission fluid cooler hose/pipe bolt (1) and tighten to 22 Nm (16 lb ft).





3. Install transmission fluid collar hose/pipe (2) to the air conditioning bracket.

4. Install transmission fluid cooler hose/pipe bolt (1) and tighten to 22 Nm (16 lb ft)

5. Install transmission fluid cooler outlet pipe (if equipped). Refer to Transmission Fluid Cooler Outlet Pipe Replacement Transmission Fluid Cooler Pipe Replacement - Front.

6. Install transmission fluid cooler inlet pipe. Refer to Transmission Fluid Cooler Inlet Pipe Replacement Transmission Fluid Cooler Lower Pipe Assembly Replacement - Auxiliary Cooler to Radiator.

7. Lower the vehicle.
