Outside Rearview Mirror Opening Cover Replacement

Outside Rearview Mirror Opening Cover Replacement

Removal Procedure

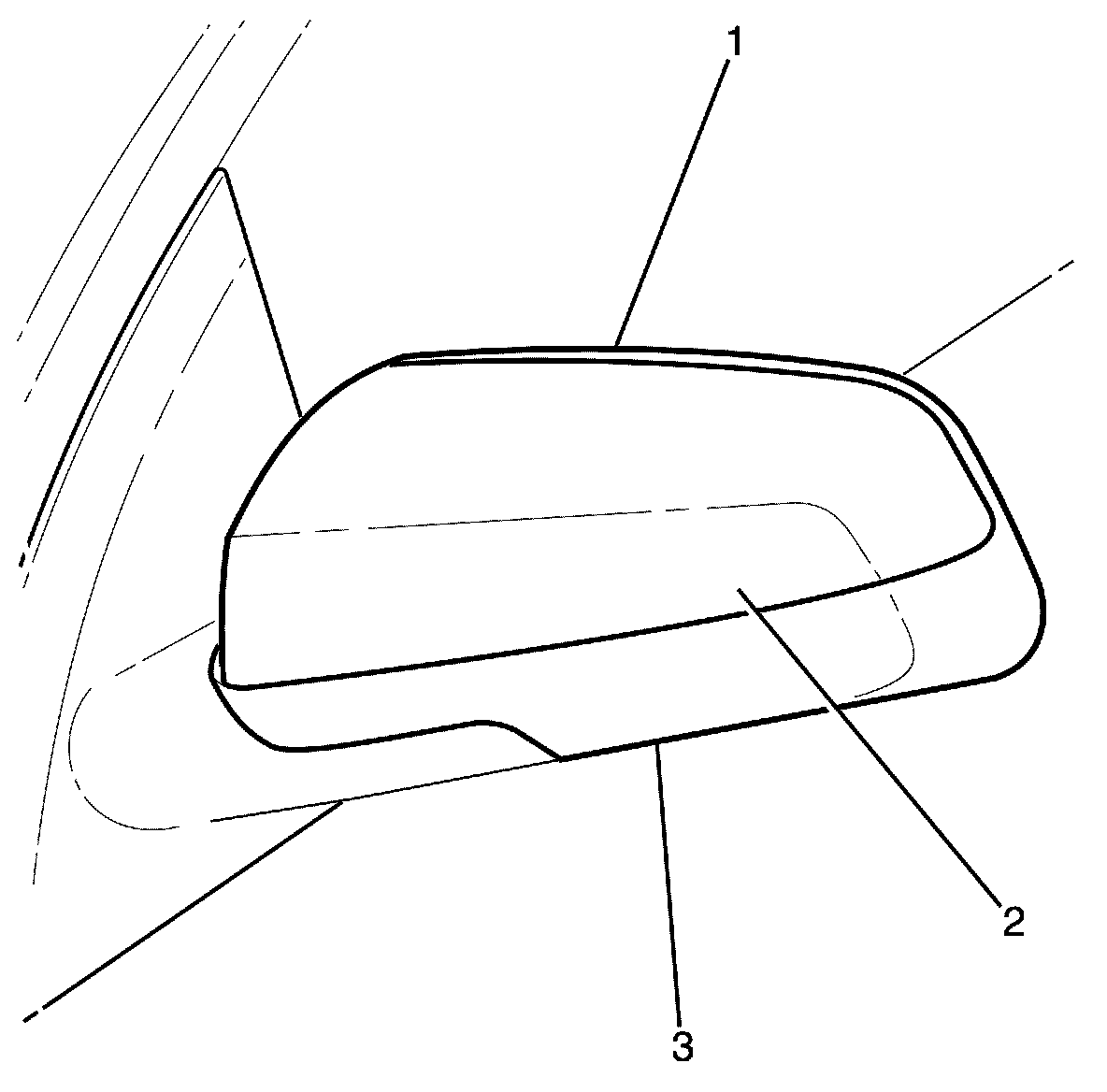

1. Firmly grasp mirror cover at (2, 1) and lift upwards then outwards from the mirror (3) to release the retainers.





2. Remove the mirror cover (1) from the mirror (2).

Installation Procedure

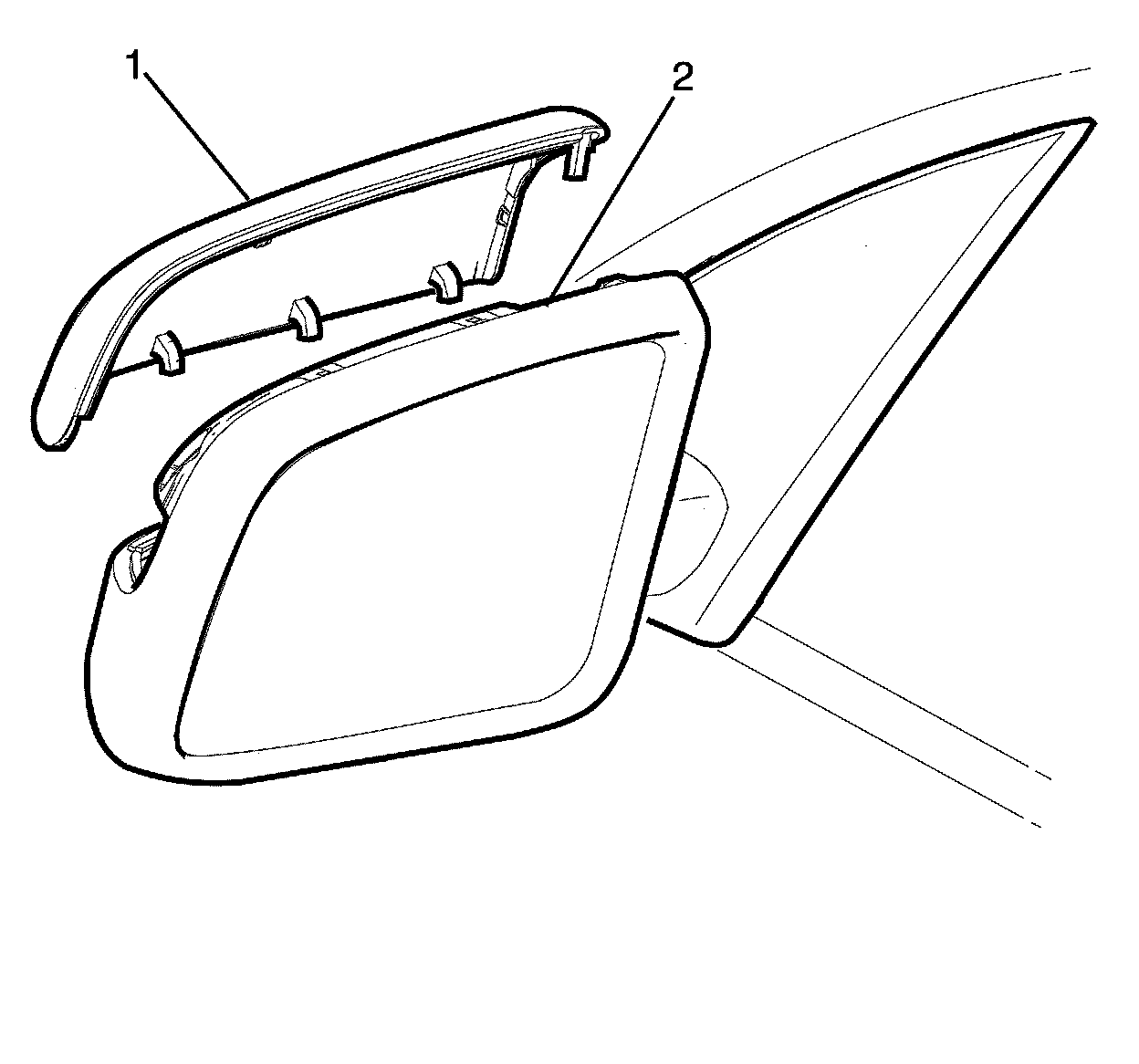

1. Push the mirror cover (1) at the top first then the lower side inwards to attach it to the mirror (2).

2. Install the mirror cover (1) to the mirror (2).
