Removal Procedure

1. Remove the door trim panel. Refer to Front Side Door Trim Panel Replacement Front Side Door Trim Panel Replacement.

2. Remove the upper auxiliary weatherstrip.





Note:

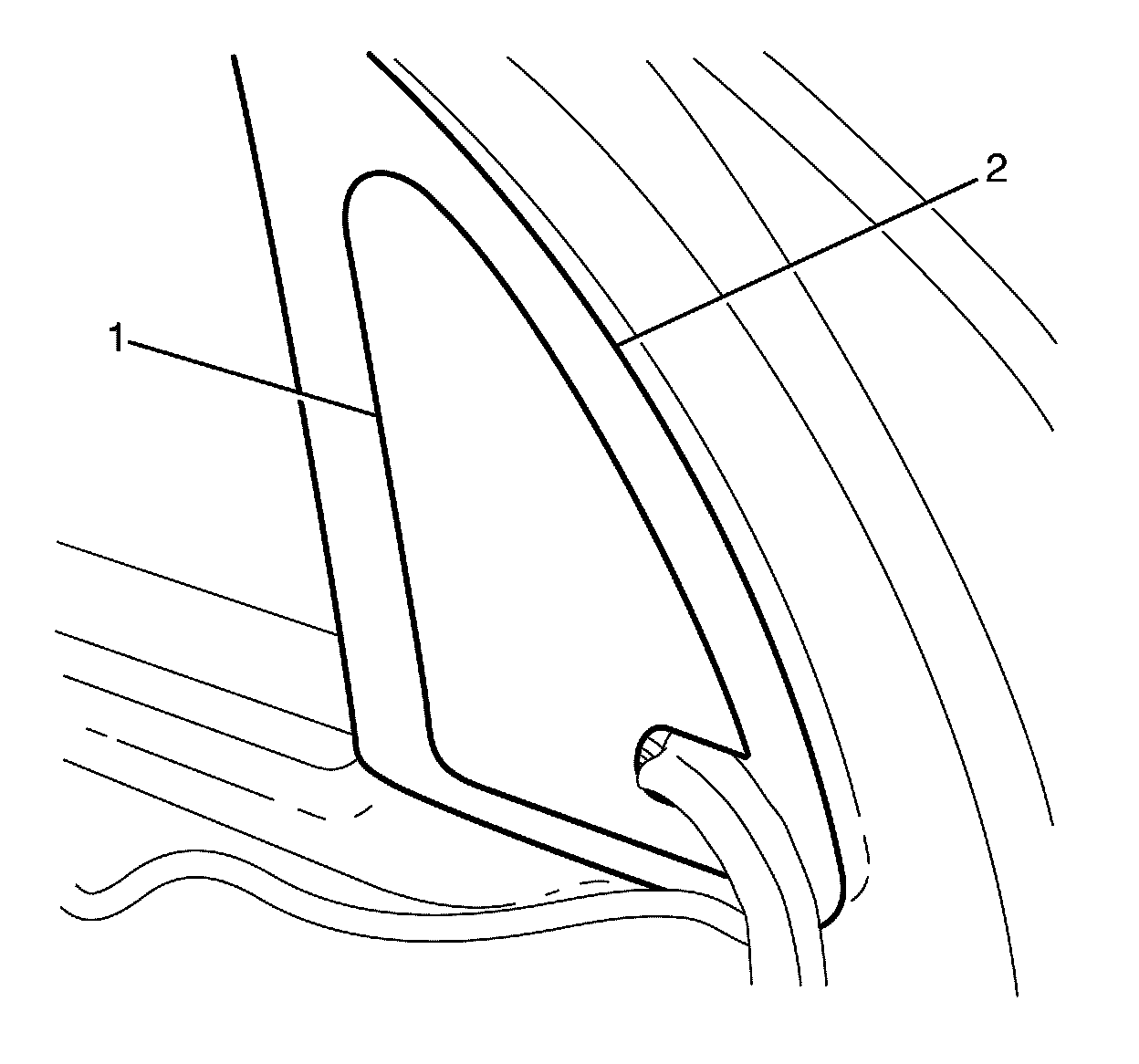

Use a suitable tool to pry open inner panel (1).

3. Remove the inner panel (1) from the door (2).

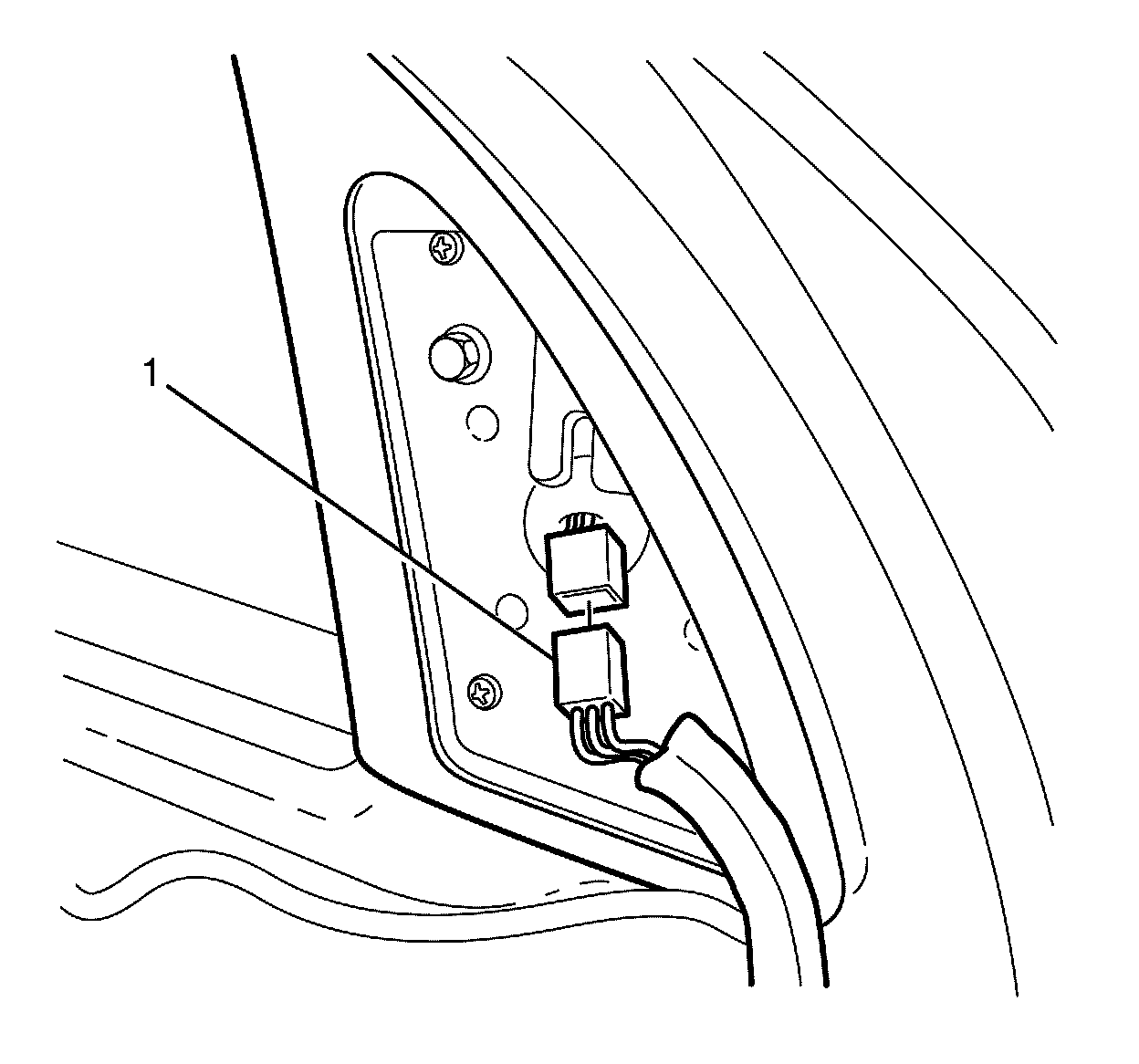

4. Disconnect the mirror to door harness electrical connector (1).





Note:
Position aside upper auxiliary weatherstrip to locate the front mirror to door retaining screw.

Note:

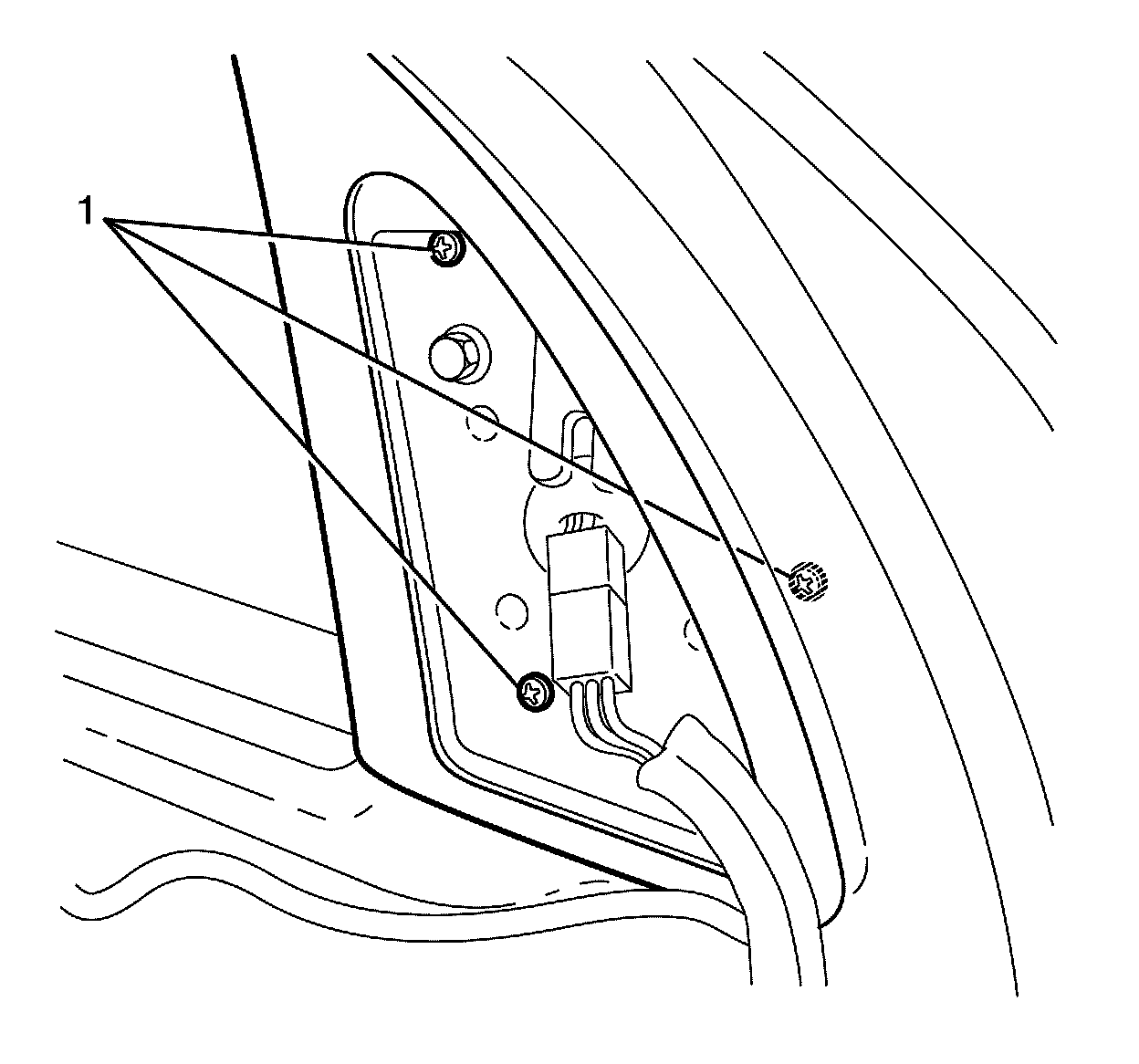

Support the mirror when removing retaining screws (1).

5. Remove the mirror to door retaining screws (1).

6. Remove the mirror from the door.

Installation Procedure

1. Position the mirror to the door.





Caution:
Refer to Fastener Caution Fastener Caution.

2. Install the mirror to door retaining screws (1) and tighten to 3 Nm (27 lb in).





3. Connect the mirror to door harness electrical connector (1).





Note:
Push the inner panel (1) to attach the retainers.

4. Install the inner panel (1) to the door (2).

5. Install the upper auxiliary weatherstrip.

6. Install the door trim panel. Refer to Front Side Door Trim Panel Replacement Front Side Door Trim Panel Replacement.
