Driver Door Harness Routing

Harness Routing Views

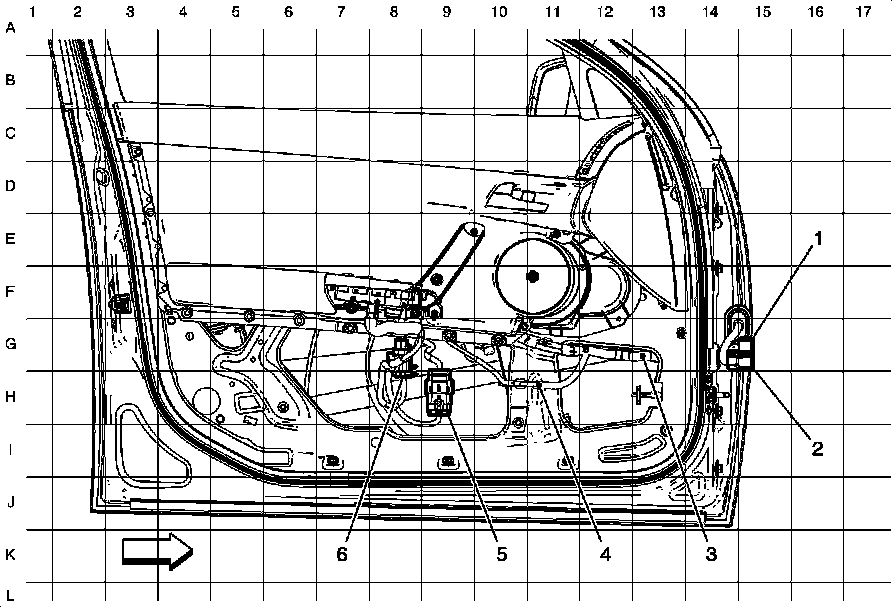

Driver Door Harness Routing





1 - X500 Body Harness to the Left Front Door Harness

2 - X503 Body Harness to the Left Front Door Harness

3 - J510

4 - J511

5 - X505 Left Front Door Harness to the Window Patch Harness

6 - X504 Window Patch Harness to the Left Front Door Harness
