J200

Harness Routing Views

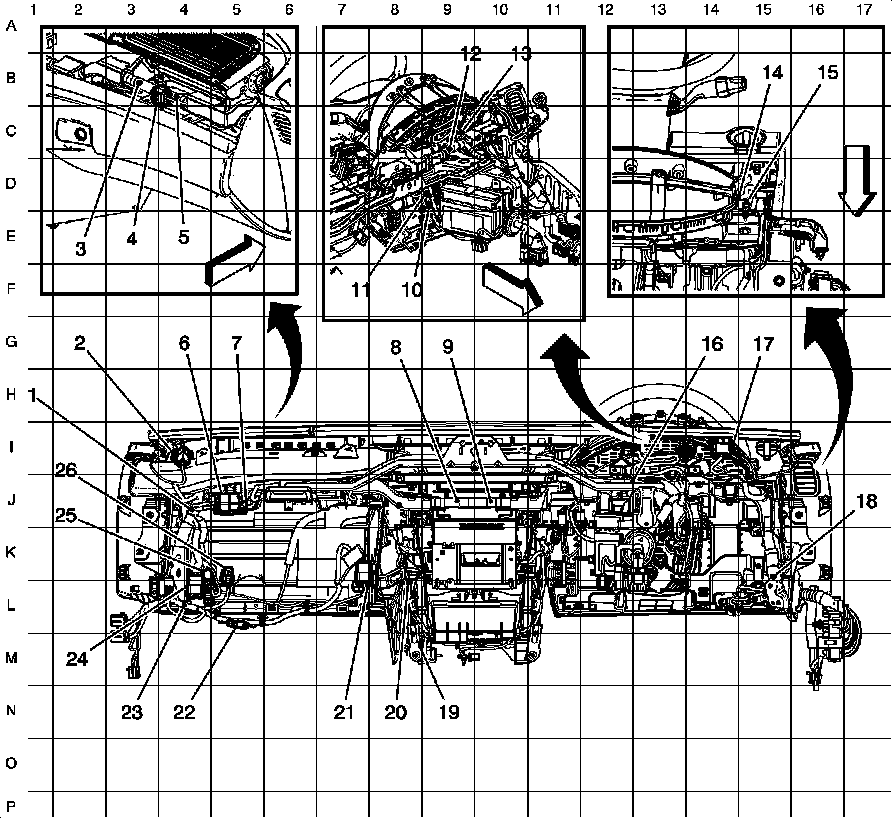

Behind the Instrument Panel Harness Routing





1 - J205

2 - X213

3 - J211

4 - JX200

5 - J208

6 - X229 Instrument Panel Harness to the Instrument Panel Harness

7 - X228

8 - J299

9 - J214

10 - J216

11 - J215

12 - J236

13 - J239

14 - J221

15 - J222

16 - J269

17 - X212 Headliner Harness to the Instrument Panel Harness

18 - J223

19 - X223 Instrument Panel Harness to the Console Ground Harness

20 - J240

21 - J209

22 - X205 Instrument Panel Harness to the Instrument Panel Harness

23 - X274 Instrument Panel Harness to the Instrument Panel Harness
