1. Draining Fluids and Oil Filter Removal

Draining Fluids and Oil Filter Removal

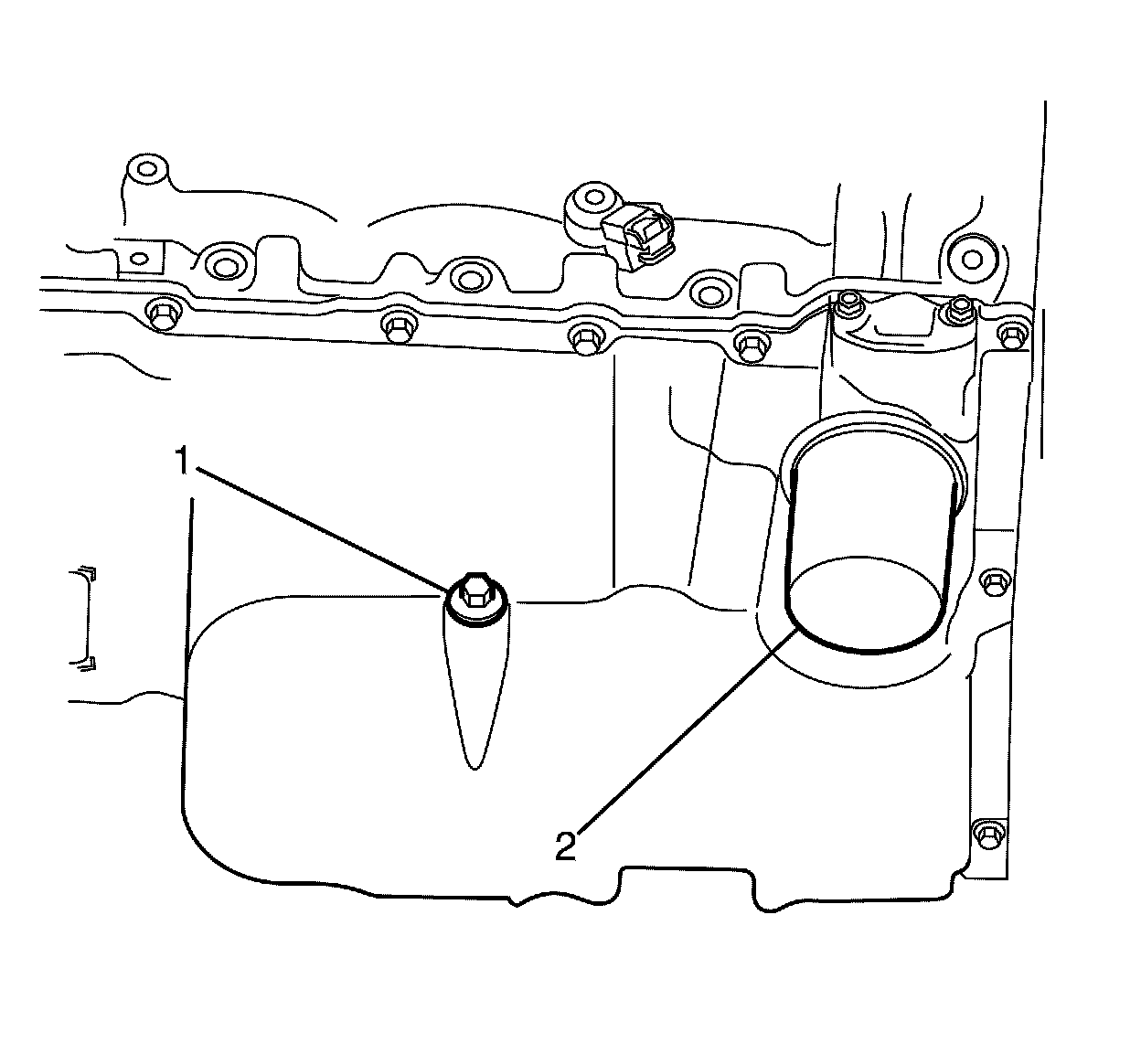

1. Remove the oil pan drain plug (1).

2. Drain the engine oil into an appropriate container.

3. Remove the engine oil filter (2).

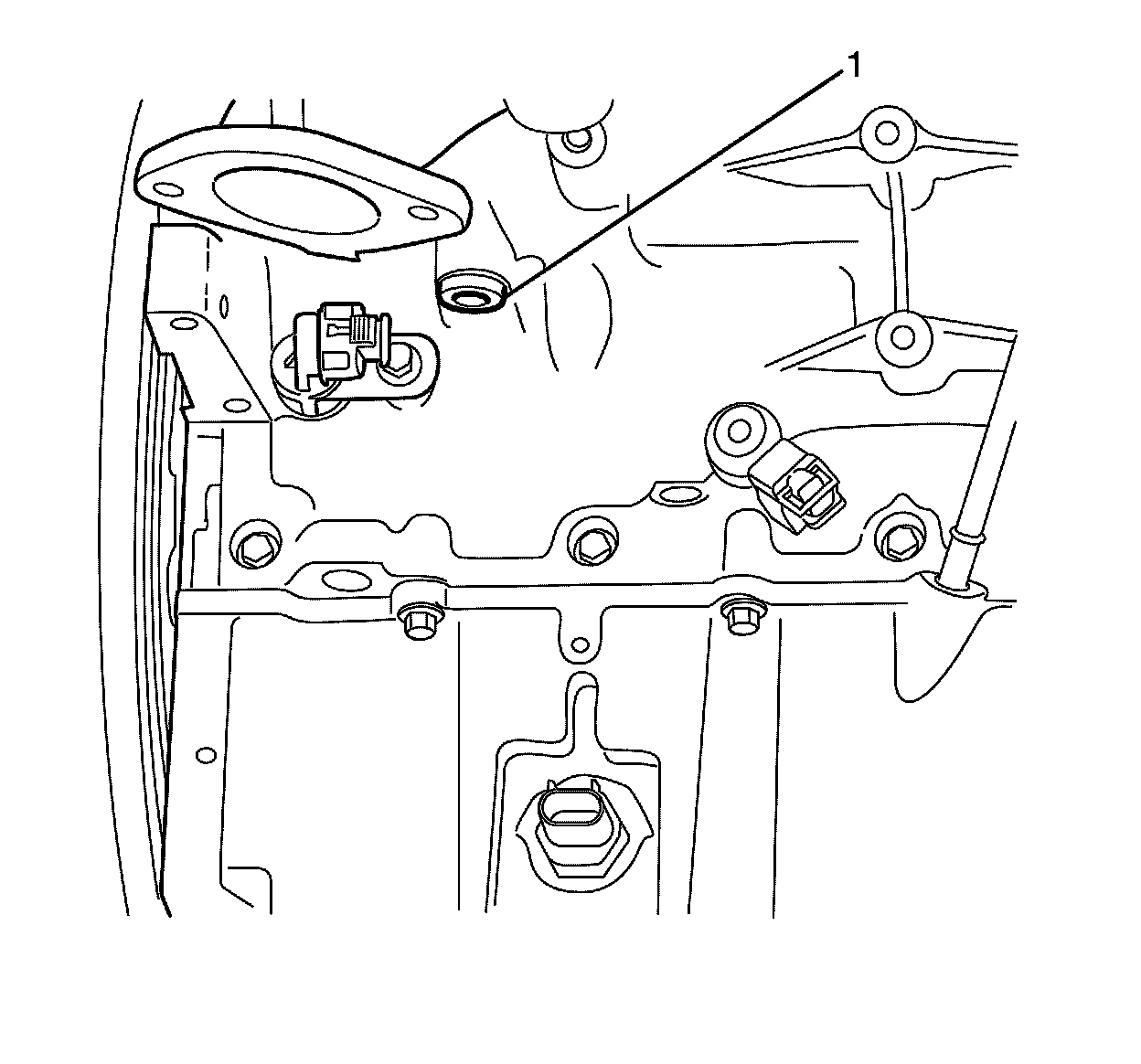

4. Remove the right side rear engine block coolant drain hole plug and washer (1).
