88. Valve Lifter Oil Manifold Installation

Valve Lifter Oil Manifold Installation





1. Do not lift the manifold assembly by the electrical lead frame.





Note:

* All gasket surfaces should be free of oil or other foreign material during assembly.

* Do not allow dirt or debris to enter the manifold. Plug, as required.

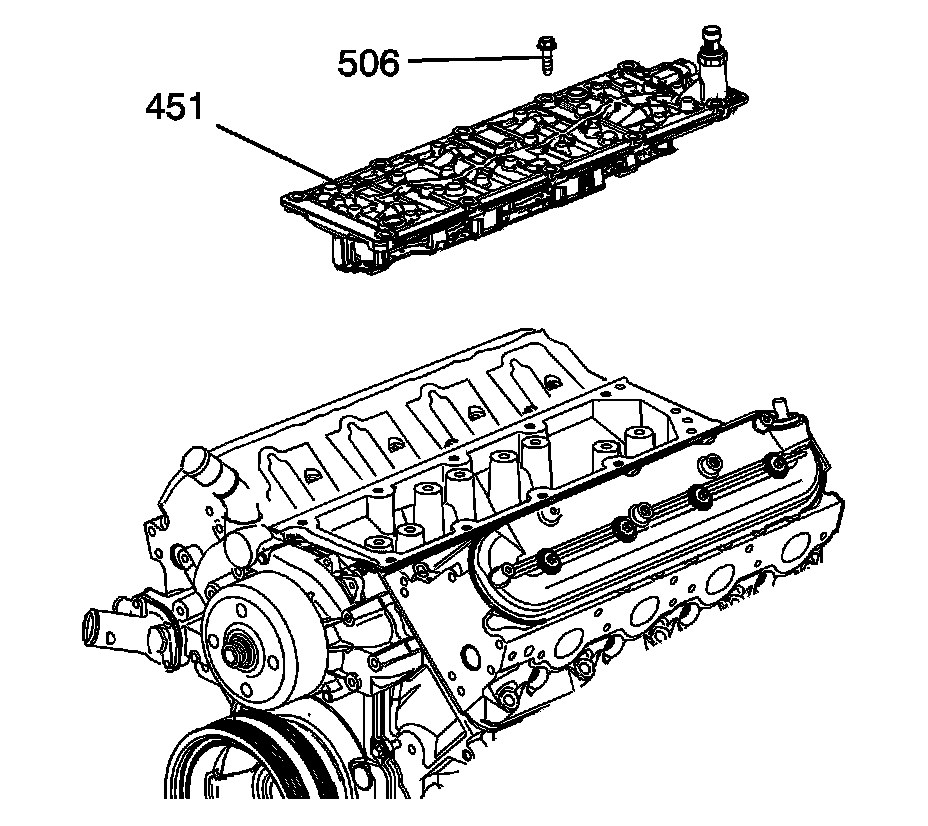

2. Install the service gasket (556) onto the manifold.





3. Install the manifold (451) with gasket.

Caution:
Refer to Fastener Caution Fastener Caution.

4. Install the manifold bolts (506) and tighten to 25 Nm (18 lb ft).
