89. Engine Coolant Air Bleed Pipe and Hole Cover Installation

Engine Coolant Air Bleed Pipe and Hole Cover Installation





Note:
Position the O-ring seal (308) onto the nipple portion of the pipe.

1. Install the seals onto the engine coolant air bleed pipe and covers.

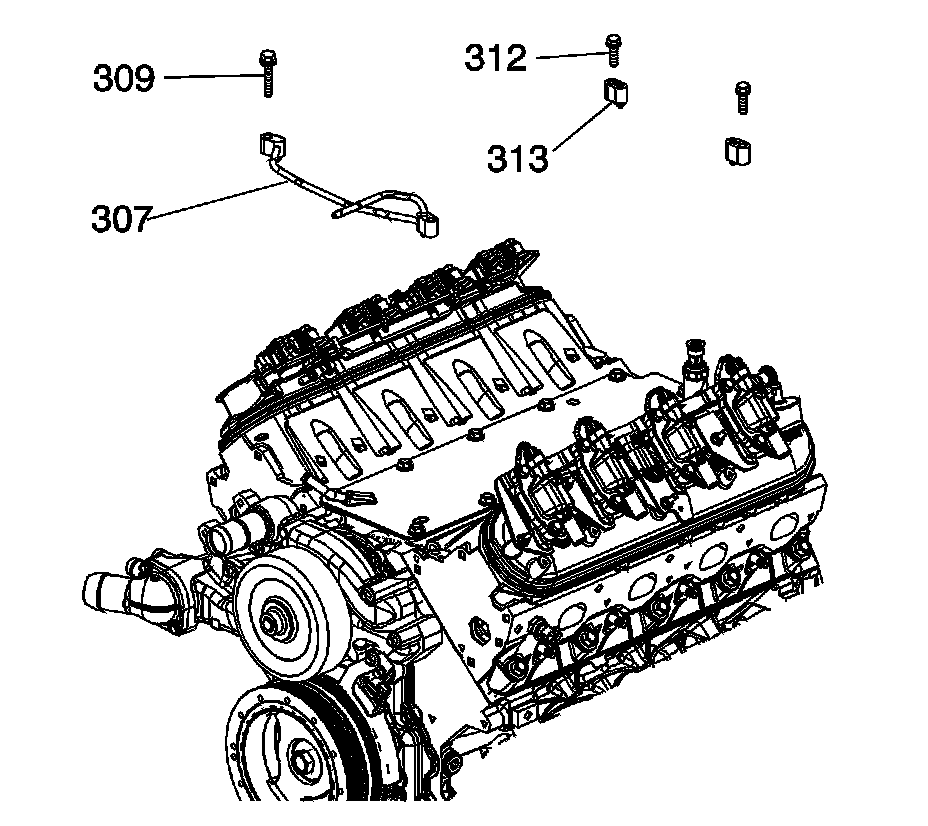

2. Install the pipe (307) and seals (308).

Caution:
Refer to Fastener Caution Fastener Caution.

3. Install the bolts (309) and tighten to 12 Nm (106 lb in).





Note:
Production engines use a rivet-type plug at the top rear coolant passage of each cylinder head. If service of a leaking plug is required, it is necessary to remove the cylinder head from the engine to properly remove the plug prior to cover installation.

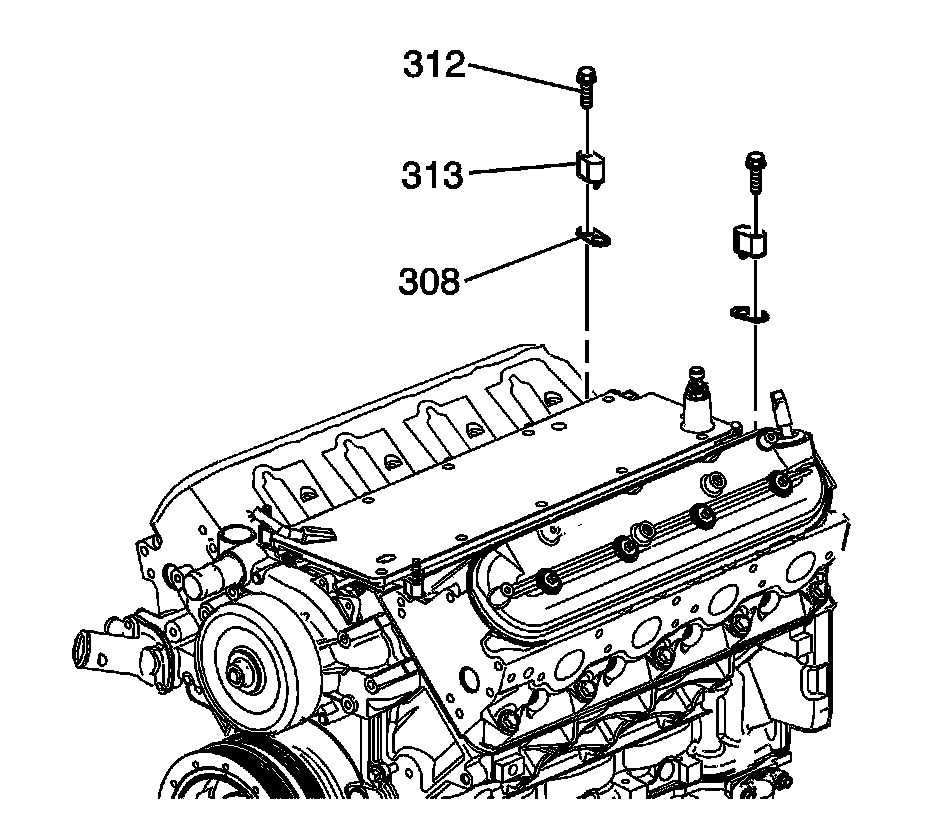

4. Install the covers (313) and seals (308).

5. Install the bolts (312) and tighten to 12 Nm (106 lb in).
