J448

Harness Routing Views

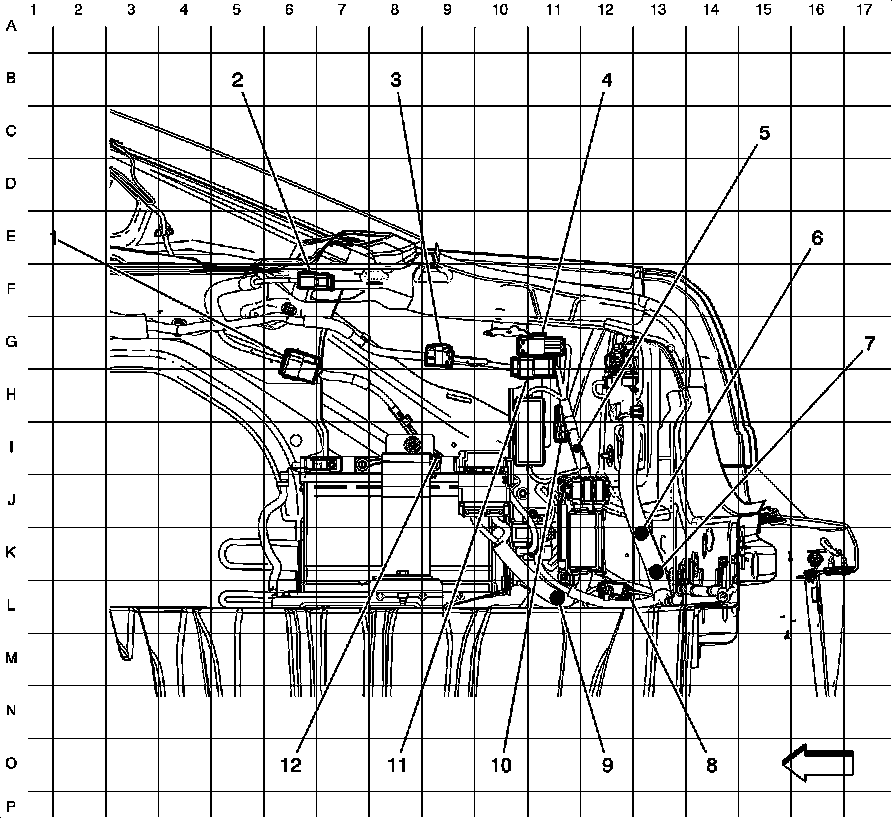

Right Side of the Rear Compartment Harness Routing





1 - X404 Body Harness to the Rear Body Harness

2 - X483 Rear Compartment Lid Harness to the Body Harness

3 - X447 Body Harness to the Auxiliary Power Harness (Female)

4 - X447 Body Harness to the Auxiliary Power Harness (Male)

5 - J448

6 - J408

7 - J451

8 - X448 Rear Body Harness to the Auxiliary Power Harness

9 - J406

10 - U1 Battery Isolator

11 - X446 Body Harness to the Auxiliary Power Harness

12 - J422
