Electrical Diagrams
Engine Controls Schematics (LFW)

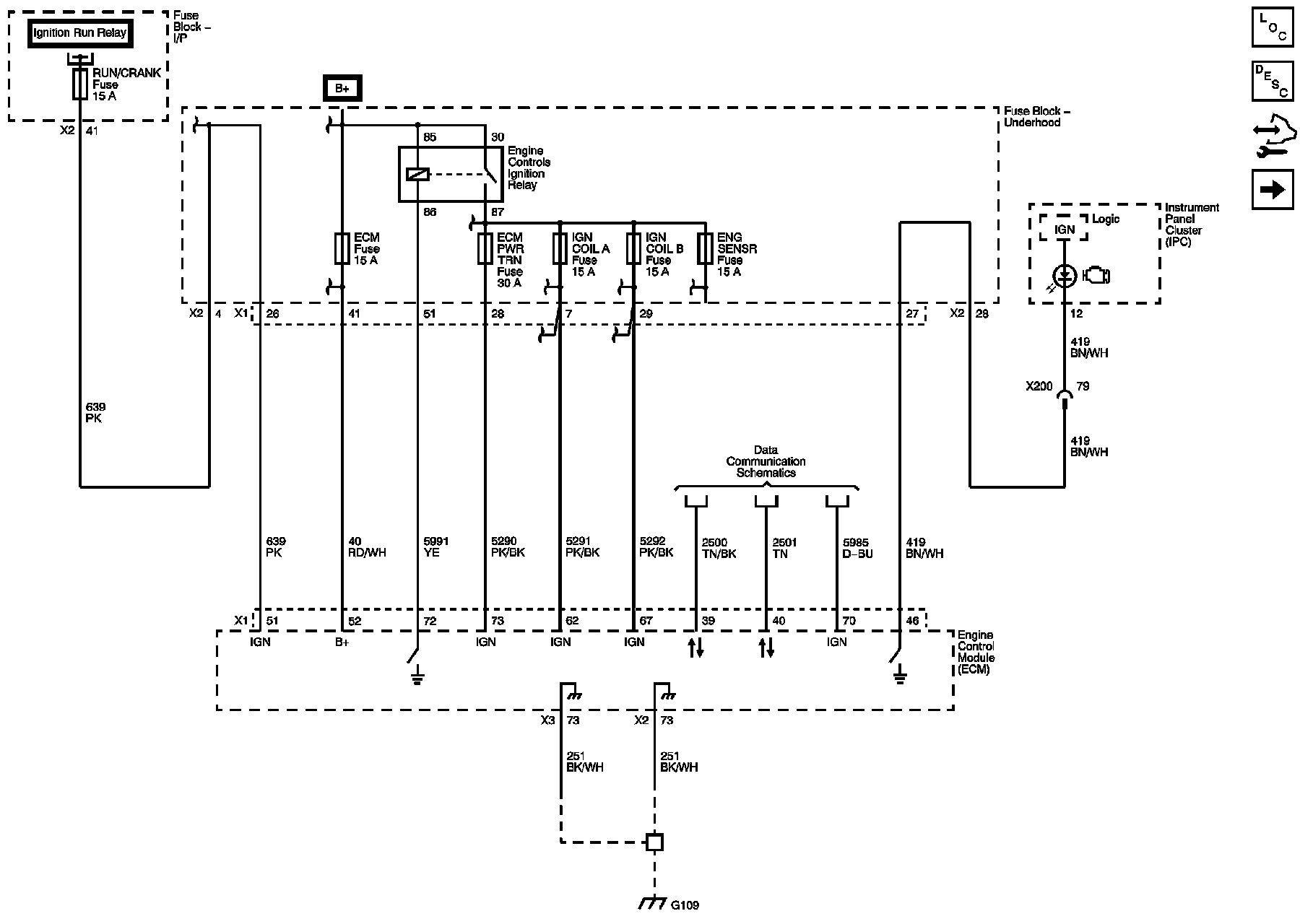

Module Power, Ground, Serial Data, and MIL

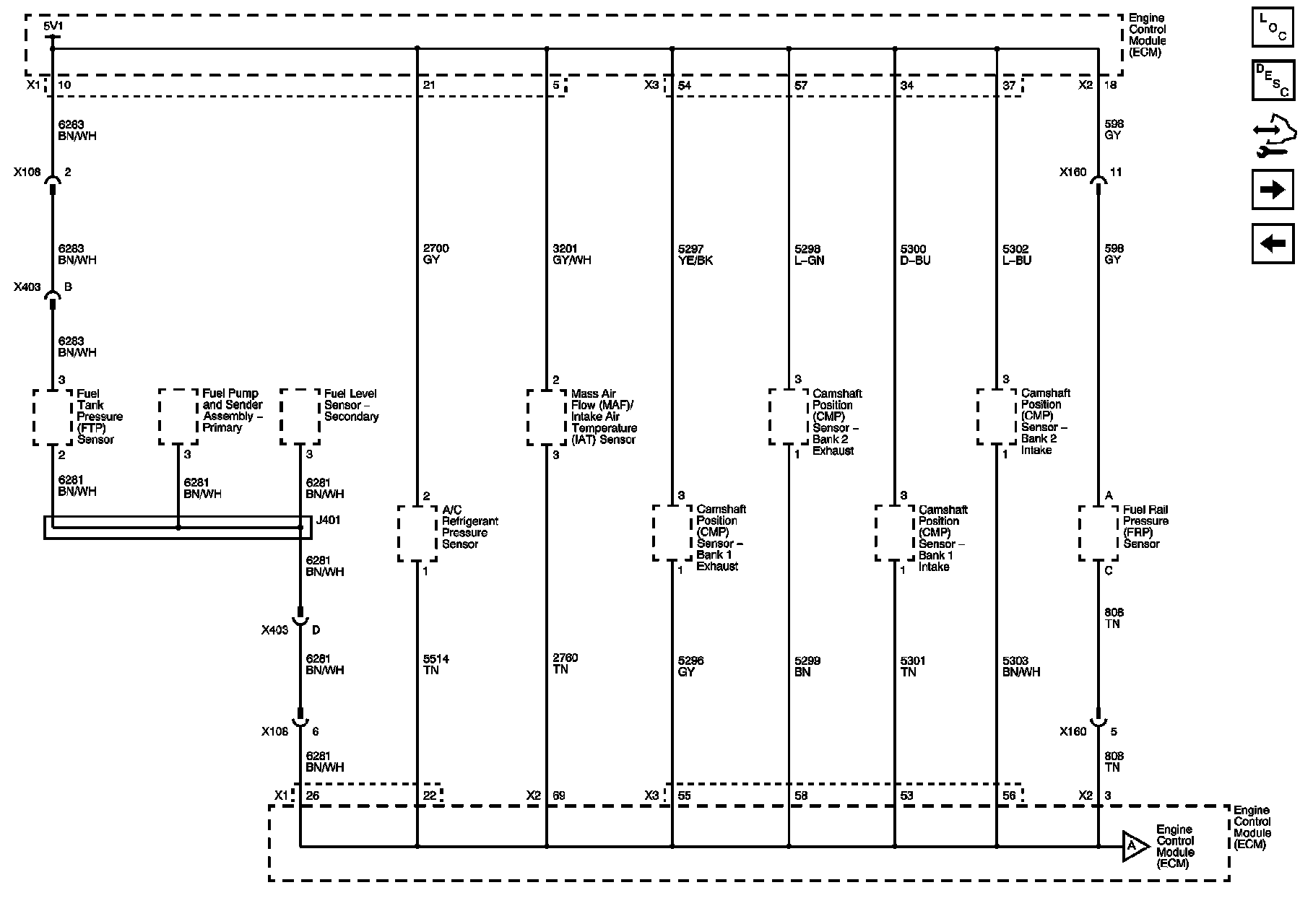

5V1, and Low Reference Bus (1 of 3)

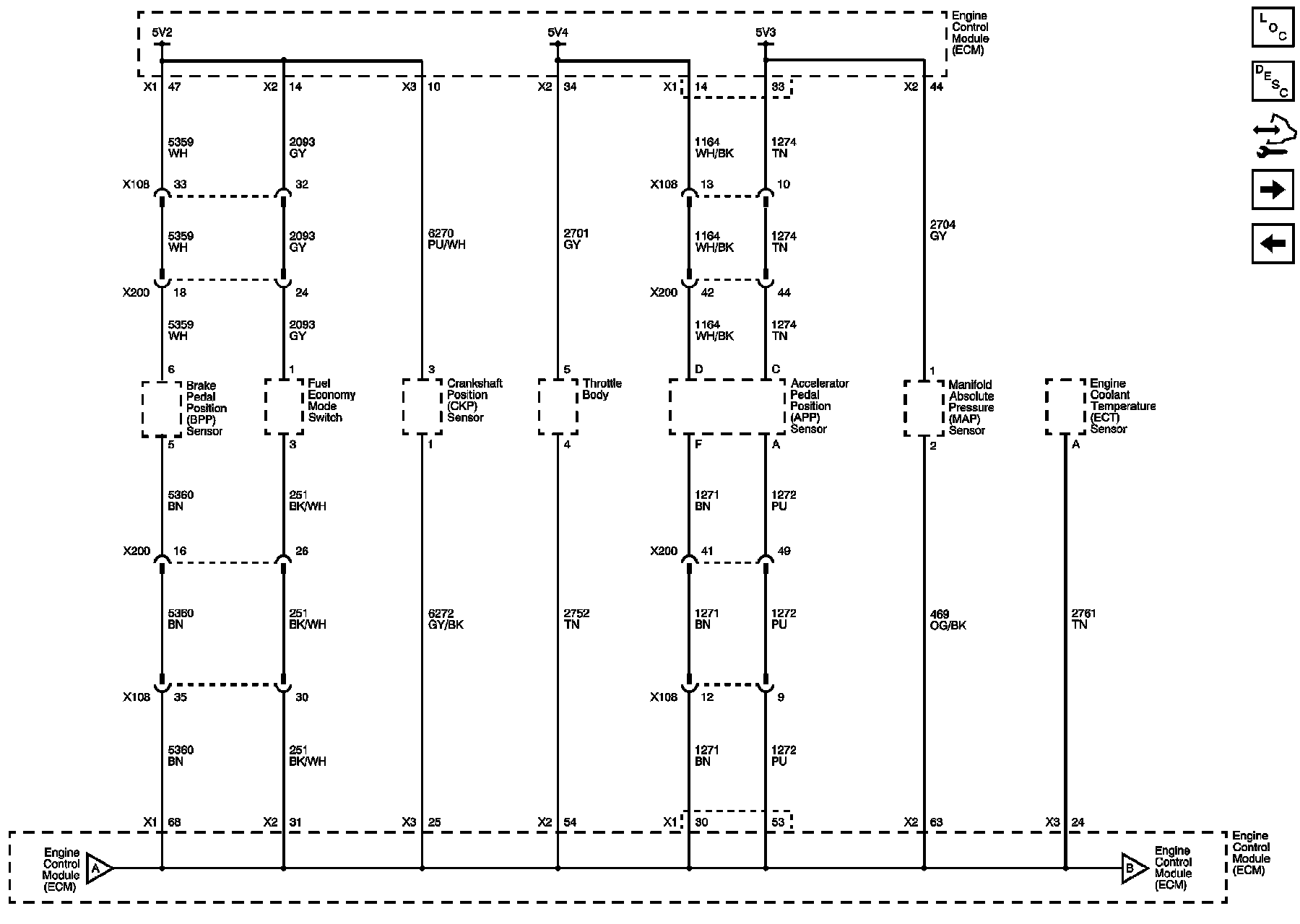

5V2, 5V3, 5V4, and Low Reference Bus (2 of 3)
Low Reference Bus (3 of 3)

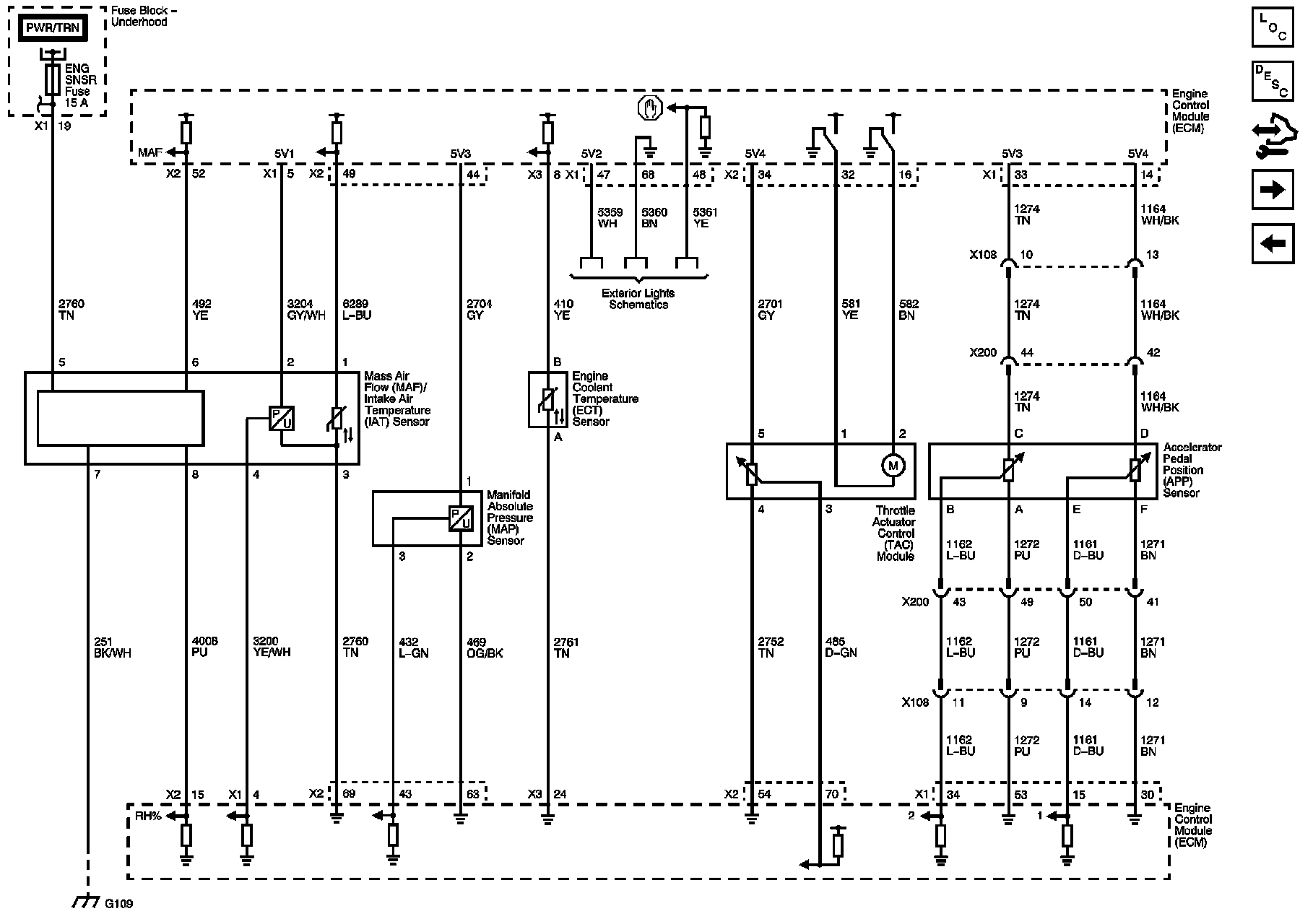

Engine Data Sensors- Pressure, Temperature, and Throttle Controls
Engine Data Sensors- Heated Oxygen Sensors
Ignition Controls- Bank 1 Ignition System
Ignition Controls- Bank 2 Ignition System

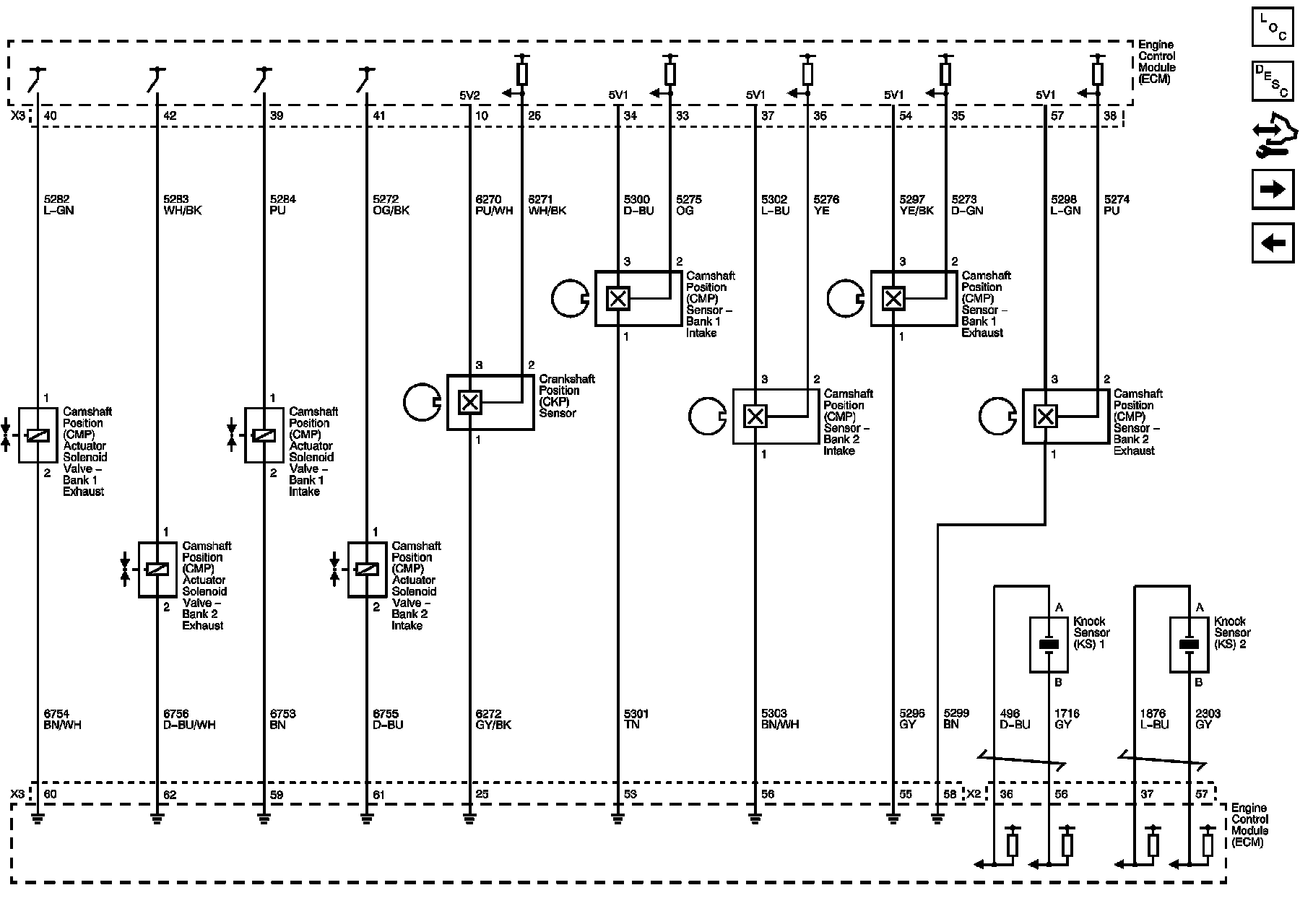

Ignition Controls - Camshaft, Crankshaft, and Knock Sensors, Camshaft Actuators

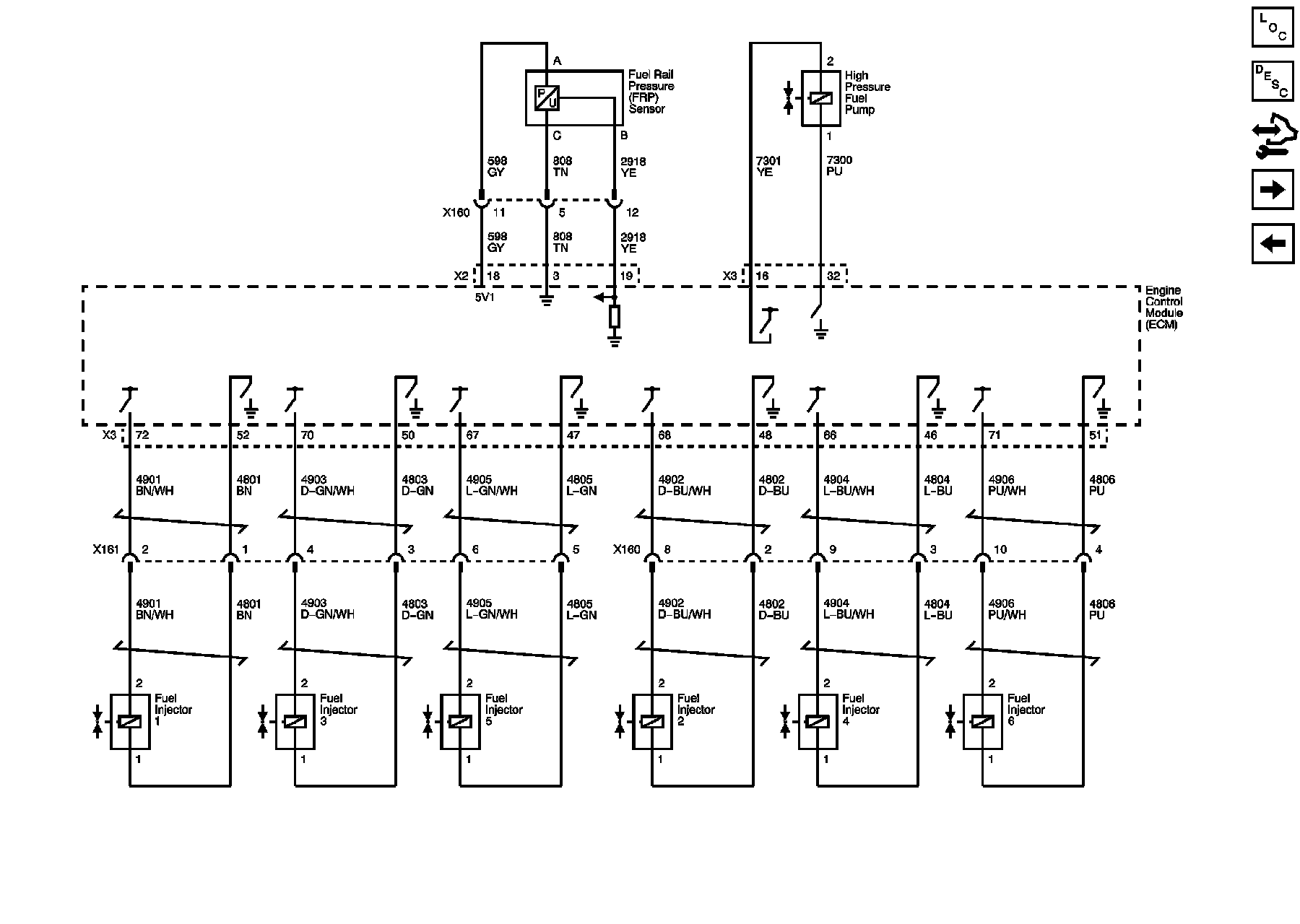

Fuel Controls- Fuel Injectors, Fuel Rail Pressure Sensor, and High Pressure Fuel Pump

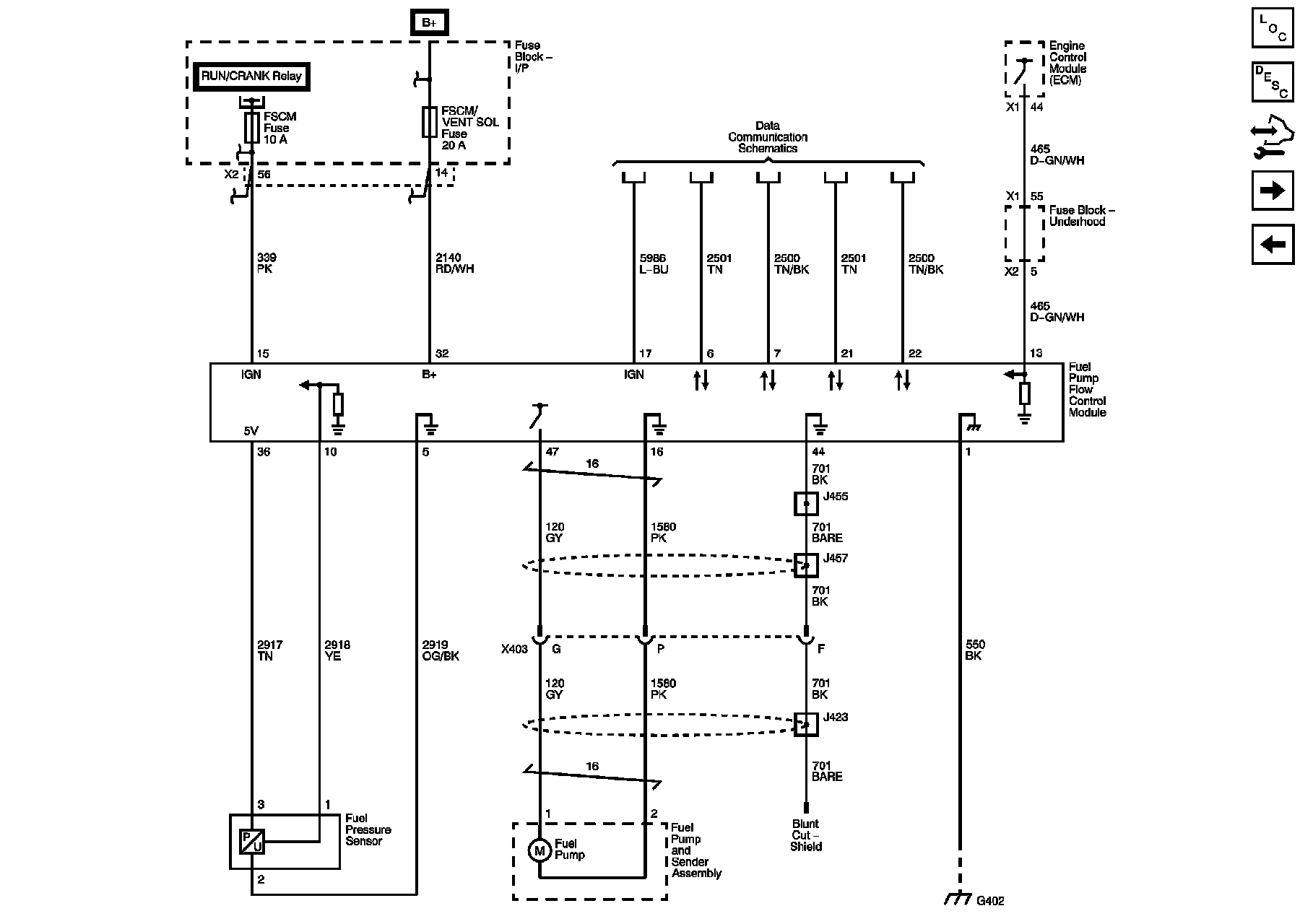

Fuel Controls- Fuel Pump Controls

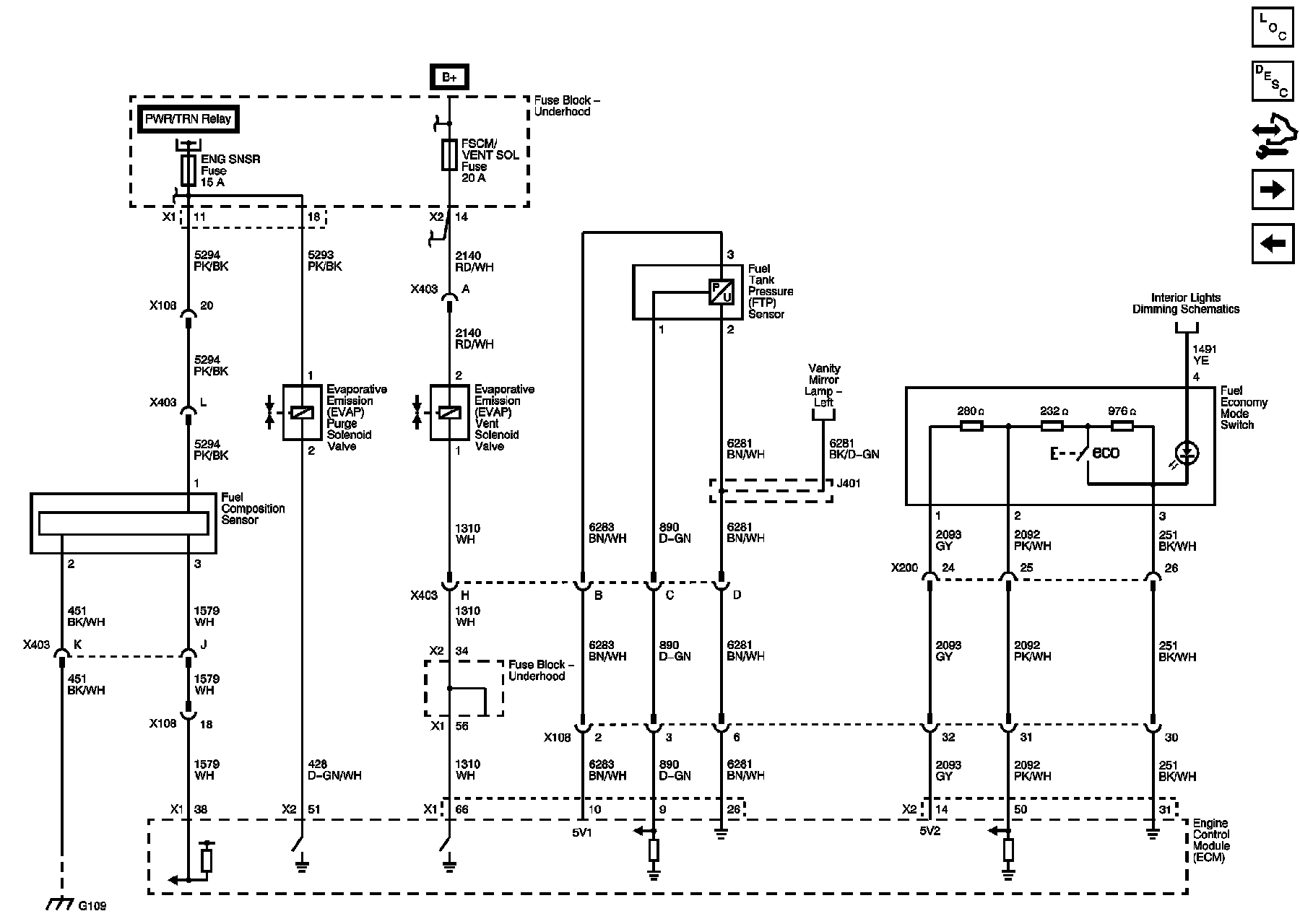

Fuel Controls - Evaporative Emissions Controls
Controlled/Monitored Subsystem References
