Battery Negative Cable Replacement




Battery Negative Cable Replacement (7.0L)

Removal Procedure

1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (LS7 or LS9) Battery Negative Cable Disconnection and ConnectionBattery Negative Cable Disconnection and Connection (LS3) Battery Negative Cable Disconnection and Connection.

2. Remove the rear compartment carpet. Refer to Rear Compartment Floor Panel Carpet Replacement (Convertible) Rear Compartment Floor Panel Carpet Replacement (Convertible)Rear Compartment Floor Panel Carpet Replacement (Coupe) Rear Compartment Floor Panel Carpet Replacement (Coupe).

3. Remove the passenger rear compartment front side trim panel. Refer to Rear Compartment Side Trim Panel Replacement Rear Compartment Side Trim Panel Replacement.

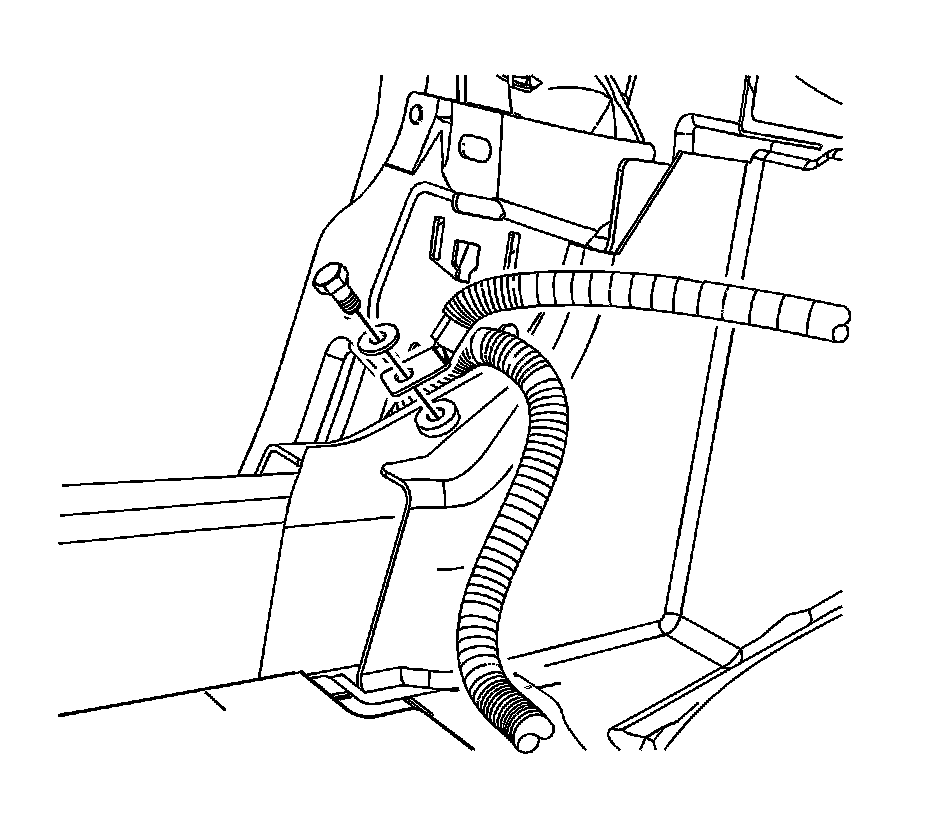

4. Remove the negative cable ground bolt from the chassis.

5. Remove the negative battery cable.

Installation Procedure

1. Install the negative battery cable.





Caution:
Refer to Fastener Caution Fastener Caution.

2. Install the negative cable ground bolt to the chassis.

Tighten the battery negative cable ground bolt to 25 Nm (18 lb ft).

3. Install the passenger rear compartment front side trim panel. Refer to Rear Compartment Side Trim Panel Replacement Rear Compartment Side Trim Panel Replacement.

4. Install the rear compartment carpet. Refer to Rear Compartment Floor Panel Carpet Replacement (Convertible) Rear Compartment Floor Panel Carpet Replacement (Convertible)Rear Compartment Floor Panel Carpet Replacement (Coupe) Rear Compartment Floor Panel Carpet Replacement (Coupe).

5. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (LS7 or LS9) Battery Negative Cable Disconnection and ConnectionBattery Negative Cable Disconnection and Connection (LS3) Battery Negative Cable Disconnection and Connection.
