Floor Air Outlet Replacement




Floor Air Outlet Replacement

Removal Procedure

1. Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement Instrument Panel Assembly Replacement.




2. Remove the instrument panel wiring harness (2) from the instrument panel tie bar (1).
Disconnect the electrical connectors.




3. Remove the instrument panel tie bar (2).

* Remove the 4 instrument panel tie bar bolts (3, 4).
* Remove the 2 instrument panel tie bar nuts (1).

4. Remove the heater wiring harness.

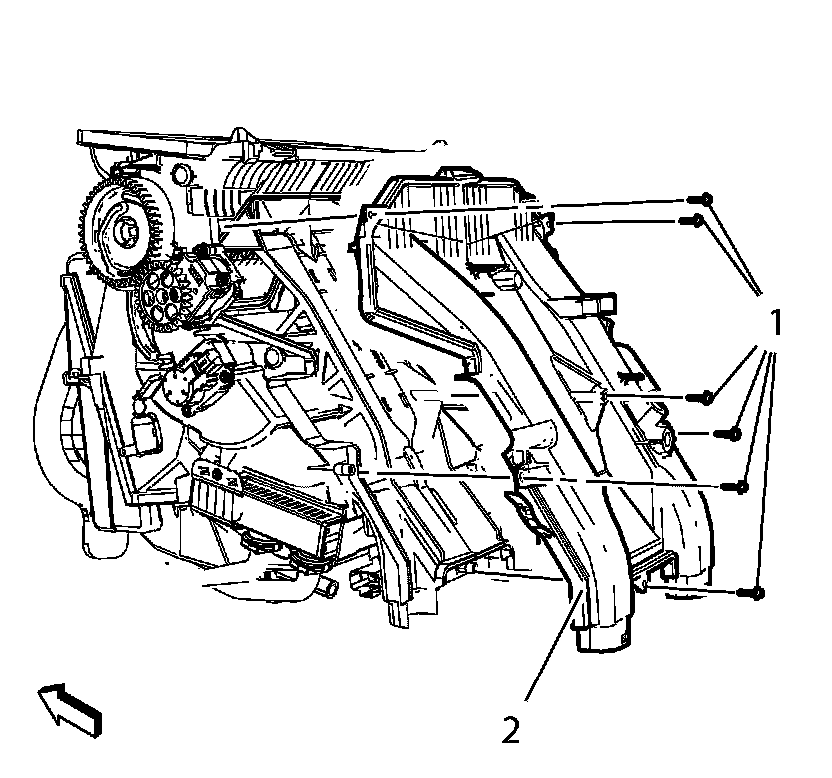

5. Remove the floor air outlet (2).
Remove the 6 floor air outlet bolts (1).

Installation Procedure





Caution: Refer to Fastener Caution Fastener Caution.

1. Install the floor air outlet (2).
Install the 6 floor air outlet bolts (1) and tighten to 2.5 Nm (23 lb in).
2. Install the heater wiring harness.




3. Install the instrument panel tie bar (2).

* Install the 4 instrument panel tie bar bolts (3, 4) and tighten to 22 Nm (17 lb ft).
* Install the 2 instrument panel tie bar nuts (1) and tighten to 9 Nm (80 lb in).




4. Attach the instrument panel wiring harness (2) to the instrument panel tie bar (1).
Connect the electrical connectors.
5. Install the instrument panel assembly. Refer to Instrument Panel Assembly Replacement Instrument Panel Assembly Replacement.
