Passenger Compartment Air Filter Replacement




Passenger Compartment Air Filter Replacement

Removal Procedure

1. Remove instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement - Right Side Instrument Panel Outer Trim Cover Replacement - Right Side.
2. Remove instrument panel compartment. Refer to Instrument Panel Compartment Replacement Instrument Panel Compartment Replacement.

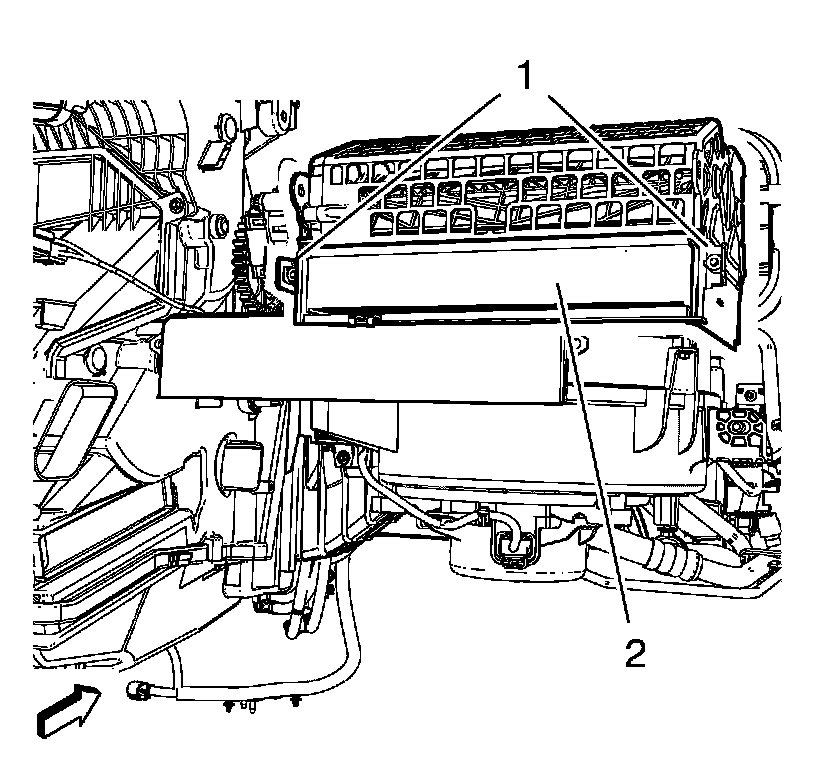

3. Unclip 2 clips (1) and remove passenger compartment air filter (2).

Installation Procedure




1. Install passenger compartment air filter (2) and clip in 2 clips (1).
2. Install instrument panel compartment. Refer to Instrument Panel Compartment Replacement Instrument Panel Compartment Replacement.
3. Install instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement - Right Side Instrument Panel Outer Trim Cover Replacement - Right Side.
