Service Manual Procedures
Passenger Compartment Air Filter Replacement
Removal Procedure 1.
Remove instrument panel outer trim cover.
2.
Remove instrument panel compartment.
3.

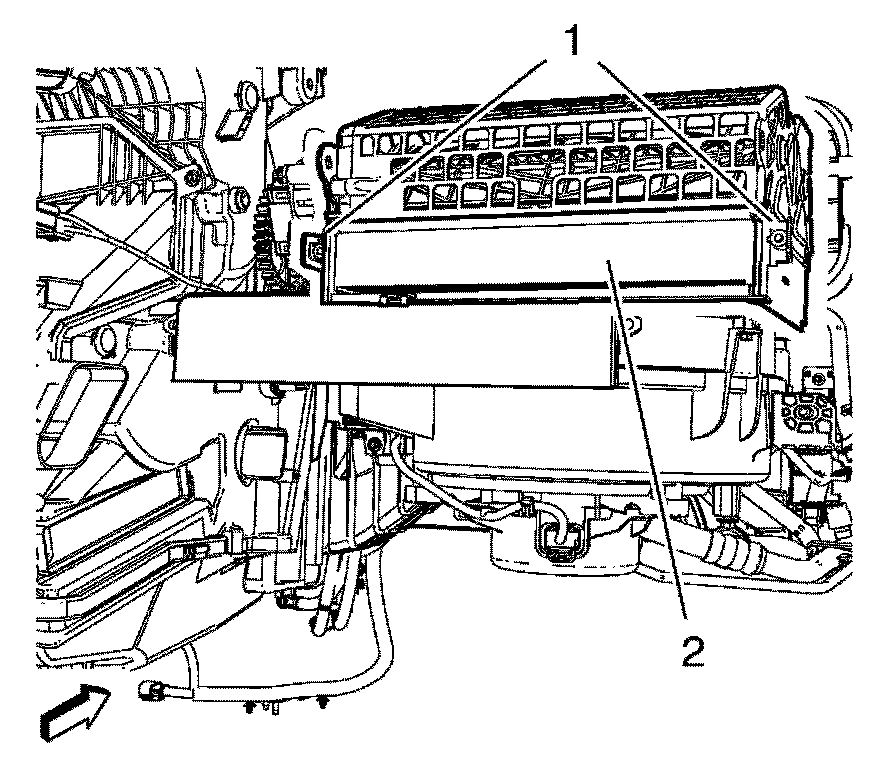

Unclip 2 clips (1) and remove passenger compartment air filter (2).
Installation Procedure 1.
Install passenger compartment air filter (2) and clip in 2 clips (1).
3.
Install instrument panel outer trim cover.
2.
Install instrument panel compartment.
