136. Water Outlet Installation

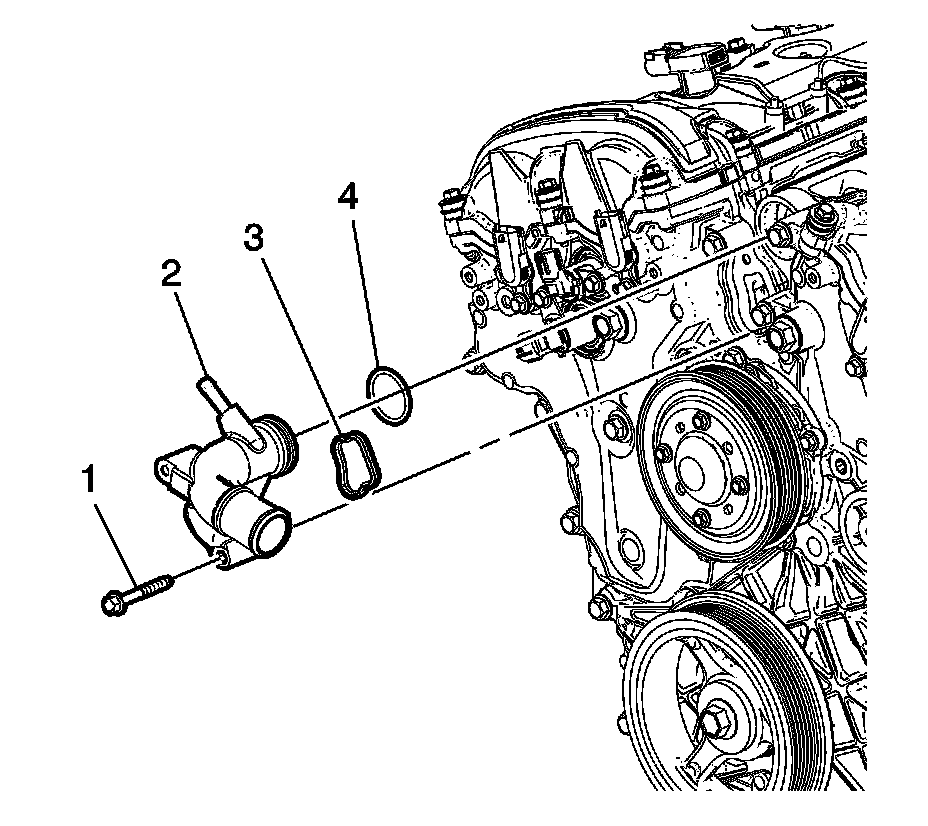

Water Outlet Installation 1.
Install the NEW water outlet seals (3) and (4).
2.
Install the water outlet (2).
Caution: Refer to Fastener Caution
Fastener Caution.
3.
Install the water outlet bolts (1) and tighten to
10 Nm (89 lb in).
