6. Intake Manifold Removal
Intake Manifold Removal 1.
Disconnect and remove the positive crankcase ventilation (PCV) tube (1) from the
intake manifold and right camshaft cover.
2.

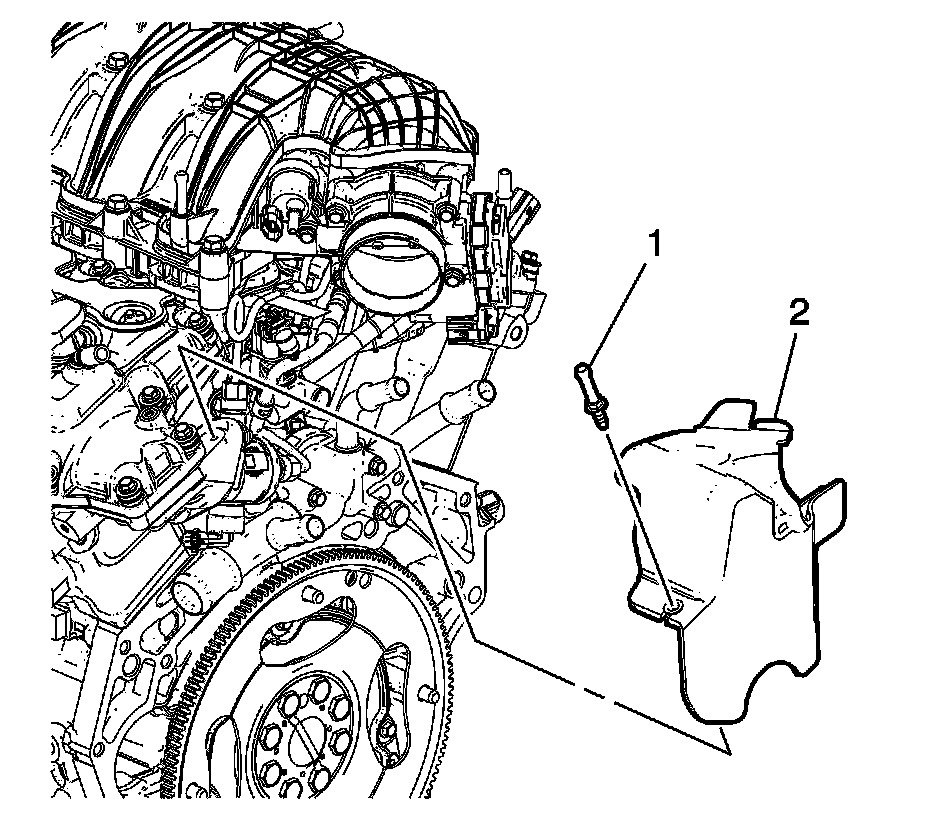

Remove the fuel pump cover stud (1).
3.
Remove the fuel pump cover (2).

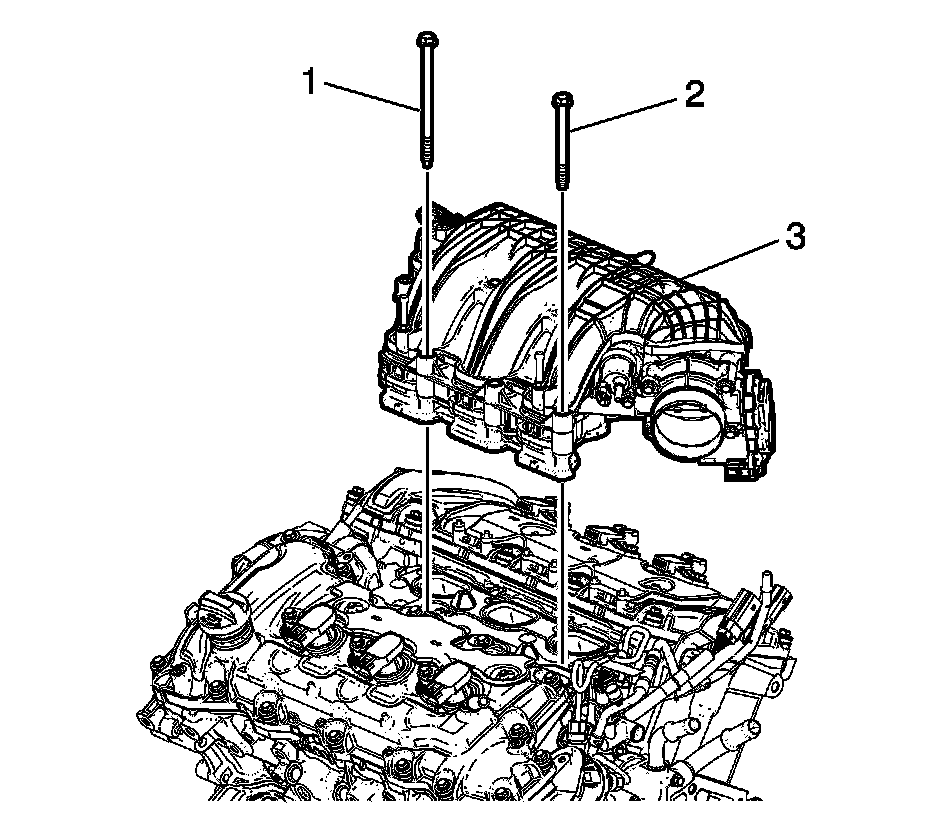

4.
Remove the
intake manifold bolts (1, 2).
5.
Remove the
intake manifold assembly (3).
6.

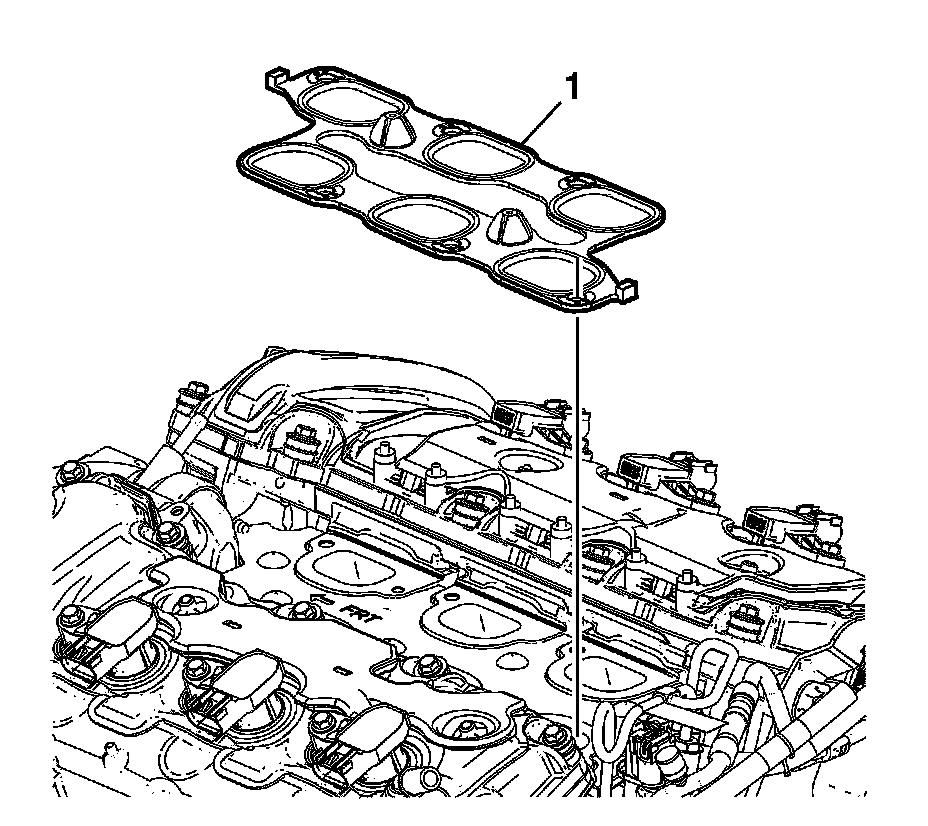

Remove and discard the intake manifold gasket (1).
