Instrument Panel Harness Routing

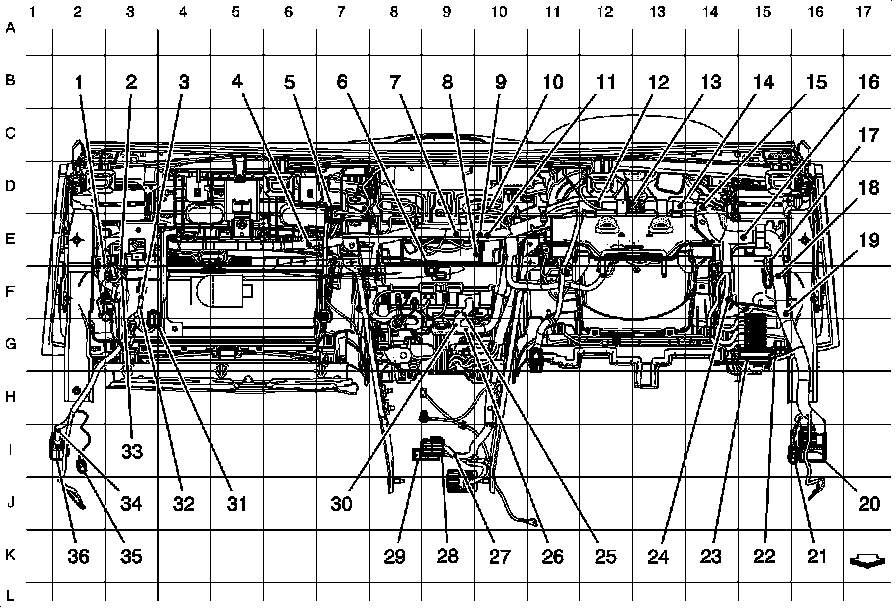

Harness Routing Views
Instrument Panel Harness Routing
1 - J202
2 - J247 (KTA)
3 - J249 (UPH)
4 - J204
5 - X215
6 - X216
7 - J245
8 - J213
9 - J239 (UEY, UFJ or UFW)
10 - J240 (UZZ)
11 - J206
12 - J211
13 - J214
14 - J207
15 - J201
16 - JX200
17 - J203
18 - J200 (C32)
19 - X210
20 - X222 (UEY or UFJ)
21 - J209
22 - J208
23 - J212
24 - J244
25 - J242
26 - J241
27 - X300
28 - X301 (USR)
29 - J243
30 - X205
31 - J250 (UPH)
32 - J249 (KTA)
33 - J252 (UVC)
35 - X221
36 - X220 (UQA or UVC)
