Window Motor - Passenger

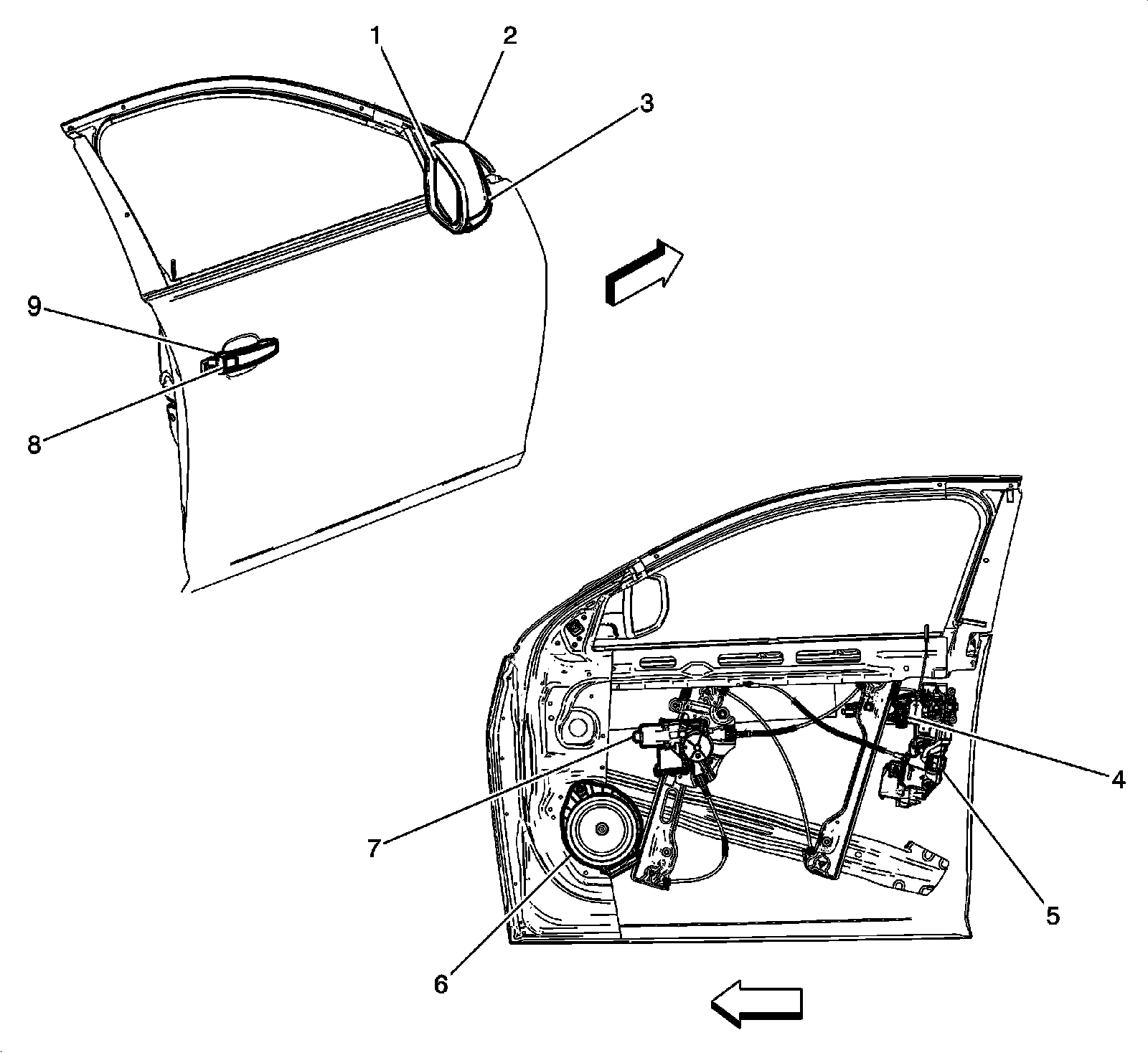

Door Component Views

Passenger Door Components





1 - E17P Outside Rearview Mirror Glass - Passenger

2 - A9B Outside Rearview Mirror - Passenger

3 - E4Z Turn Signal Repeater Lamp - Right

4 - B27P Door Handle Switch - Passenger Exterior

5 - A23P Door Latch Assembly - Passenger

6 - P19AH Speaker - Right Front Door

7 - M74P Window Motor - Passenger

8 - B210P Door Handle Touch Sensor - Passenger Exterior (ATS)

9 - A24P Door Handle Assembly - Passenger Exterior (ATS)
