Hydraulic Control Assembly - Antilock Brakes: Service and Repair

Brake Pressure Modulator Valve Bracket Replacement

Removal Procedure

1. Without separating the brake pressure modulator valve (BPMV) from the electronic brake control module (EBCM), remove the EBCM. Refer to Electronic Brake Control Module Replacement Electronic Brake Control Module Replacement.

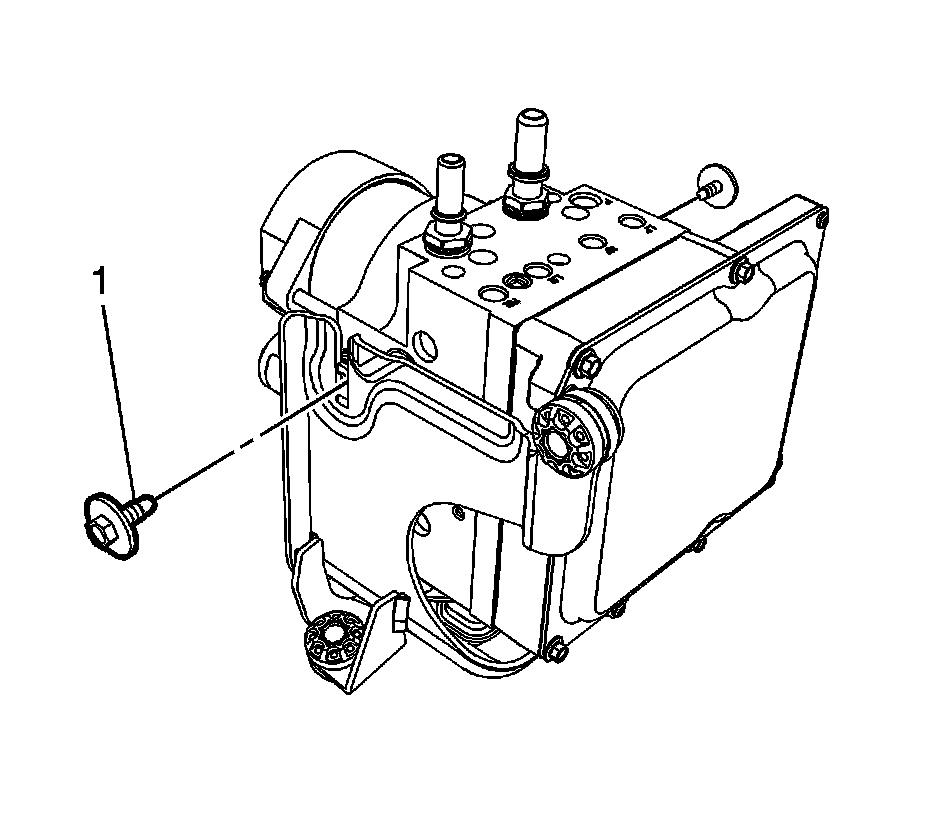

2. Remove the 2 BPMV bolts (1).




3. Remove the bracket (1) from the BPMV/EBCM assembly.

Installation Procedure




1. Install the bracket (1) to the BPMV/EBCM assembly.





Caution: Refer to Fastener Caution Fastener Caution.

2. Install the 2 BPMV bolts (1) and tighten to 8 Nm (71 lb in).
3. Install the BPMV/EBCM assembly. Refer to Electronic Brake Control Module Replacement Electronic Brake Control Module Replacement.
