Rear Fender Liner: Service and Repair

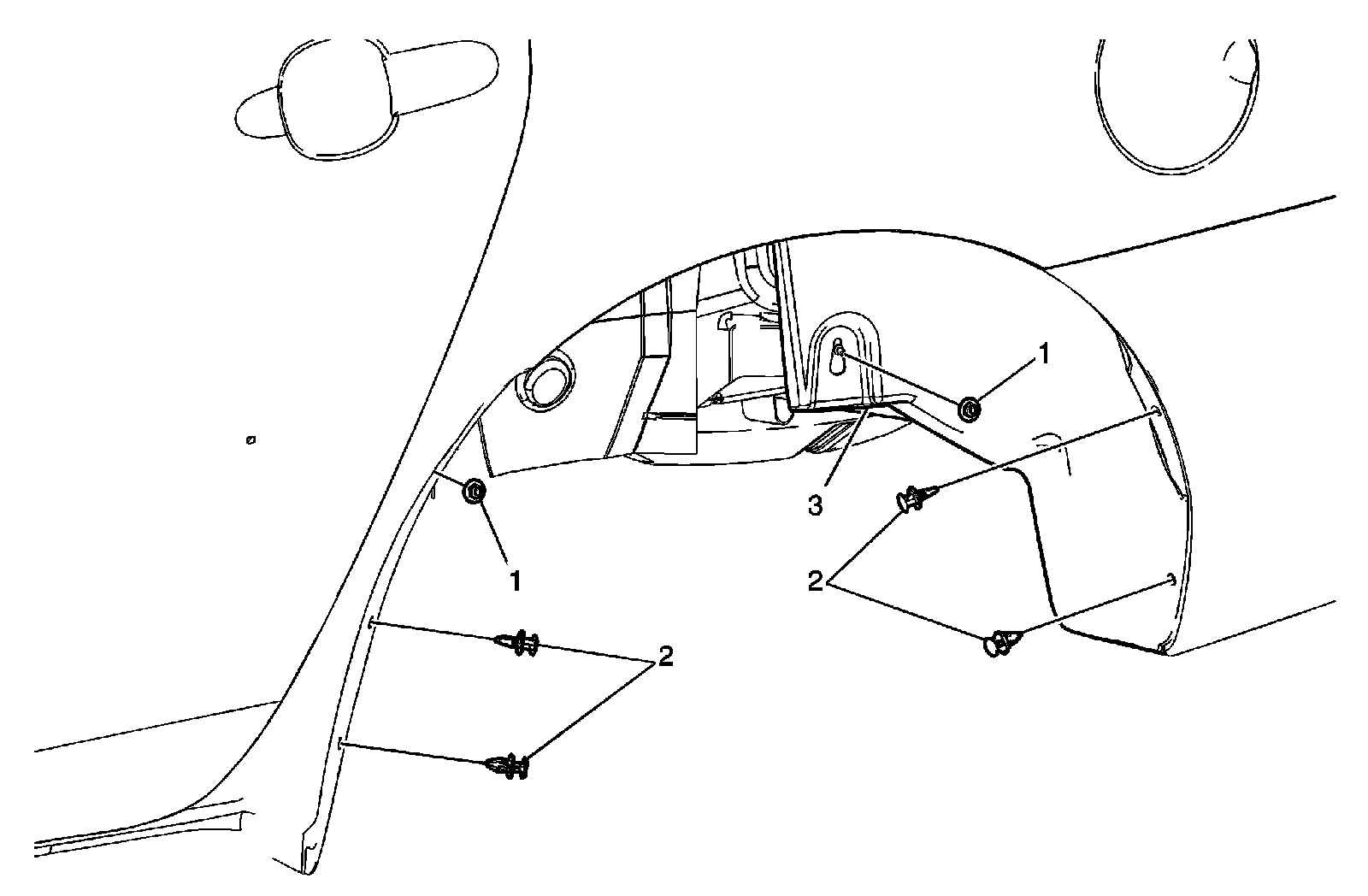

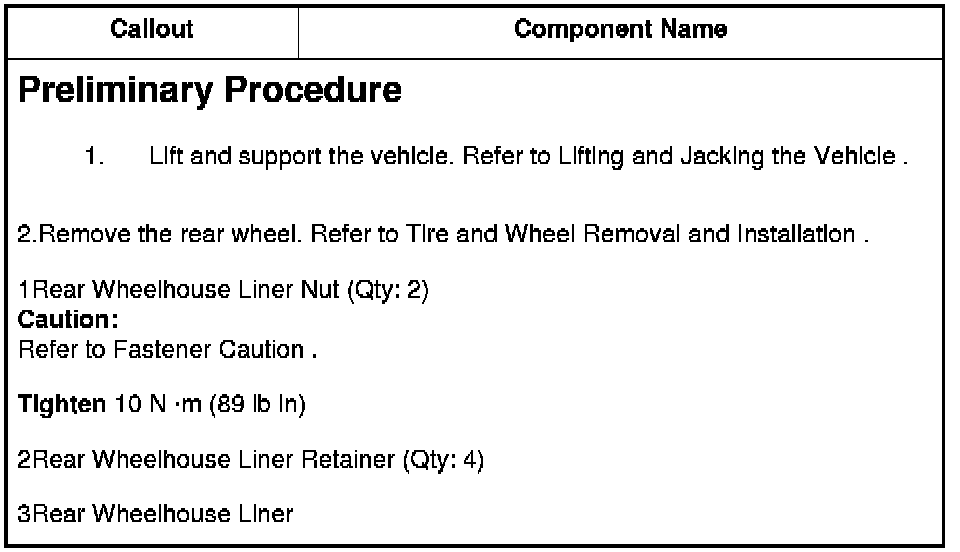

Rear Wheelhouse Panel Liner Replacement 2.Remove the rear wheel. Refer to Tire and Wheel Removal and Installation .
1Rear Wheelhouse Liner Nut (Qty: 2)
Caution:Refer to Fastener Caution .
Tighten 10 N �m (89 lb in)
2Rear Wheelhouse Liner Retainer (Qty: 4)
3Rear Wheelhouse Liner
