Cabin Air Filter / Purifier: Service and Repair

Passenger Compartment Air Filter

The filter remove dust, pollen, and other airborne irritants from outside air that is pulled into the vehicle.

The filter should be replaced as part of routing scheduled maintenance.

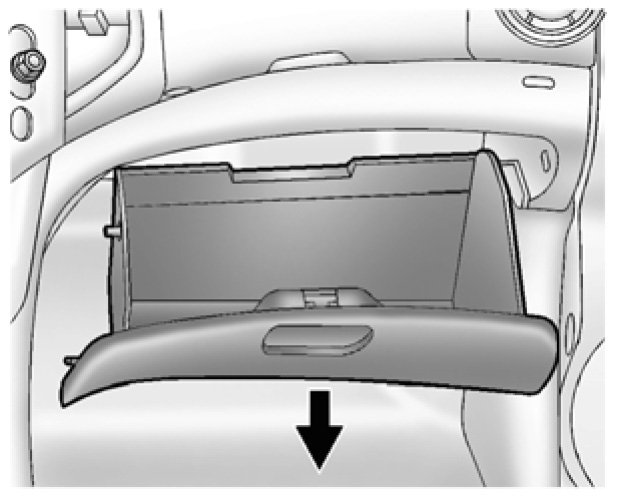

1. Open the glove box completely and pull it to remove.

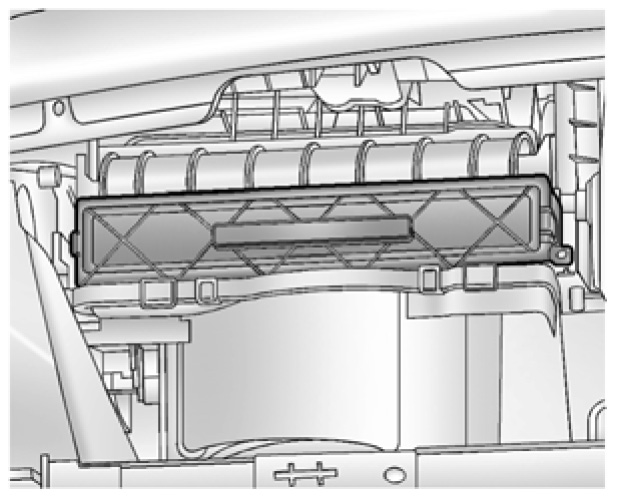

2. Remove the filter cover by unscrewing both sides of the cover.

3. Install the new air filter.
4. Reinstall the air filter cover and glove box is reverse order.
