Cruise Control Switch: Testing and Inspection

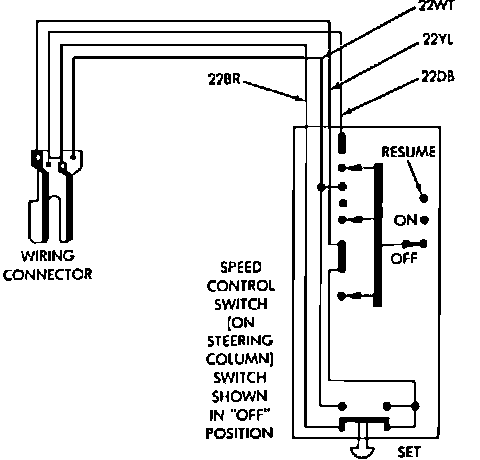

Fig. 84 Four-way Electrical Connector RWD:

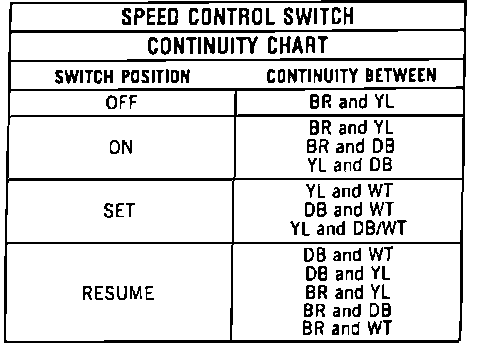

Fig. 85 Continuity Chart RWD:
1.
Disconnect 4-way electrical connector from base of steering column
2.
Using an ohmmeter or continuity tester, check for continuity according to chart at connector wires.
3.
If correct results are not attained, replace the switch.
