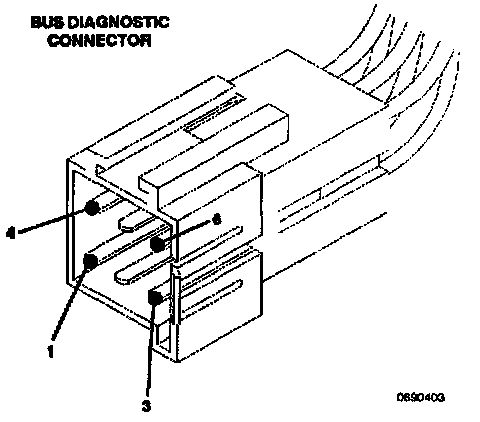

Data Link Connector: Diagrams





CAV CIRCUIT FUNCTION
1 D11 20WT/VT Data In
2 F30 18RD Battery12V
3 D02 20WT/BK Serial Data Bus (-)
4 D01 20VT/BR Serial Data Bus (+)
5 D12 20OR Data Out
6 Z02 18BK/LG Ground
