Drive Belt: Service and Repair

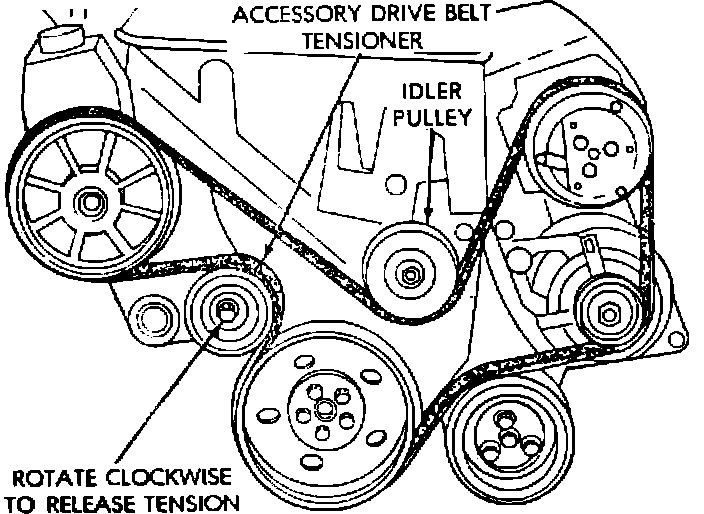

Fig. 50 Accessory Drive Belt Routing:

1. Raise vehicle on hoist.
2. Remove right front splash shield.
3. Release tension by rotating tensioner clockwise, Fig. 50.
4. Reverse procedure to install.
