Engine/Steering/Interior/SRS - Manual Revisions

NUMBER: 26-08-96B

GROUP: Miscellaneous

DATE: August, 1996

REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN

Models:
1995 Sebring/Avenger - Publication Number 81-370-5117

DESCRIPTION OF CHANGES

Revisions to the crankshaft bearing installation procedures.

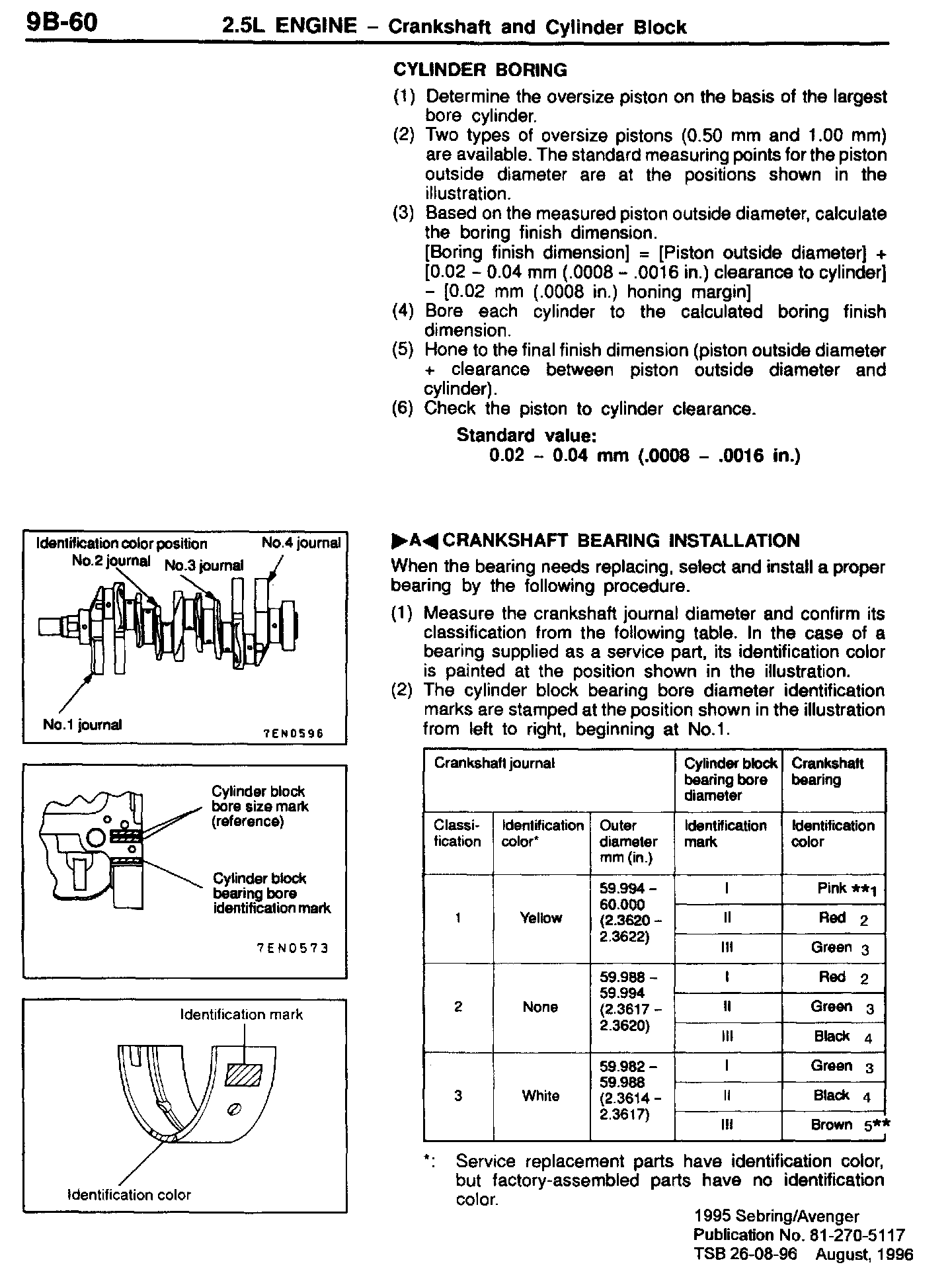

9B-60

Revisions to the power steering system graphics.

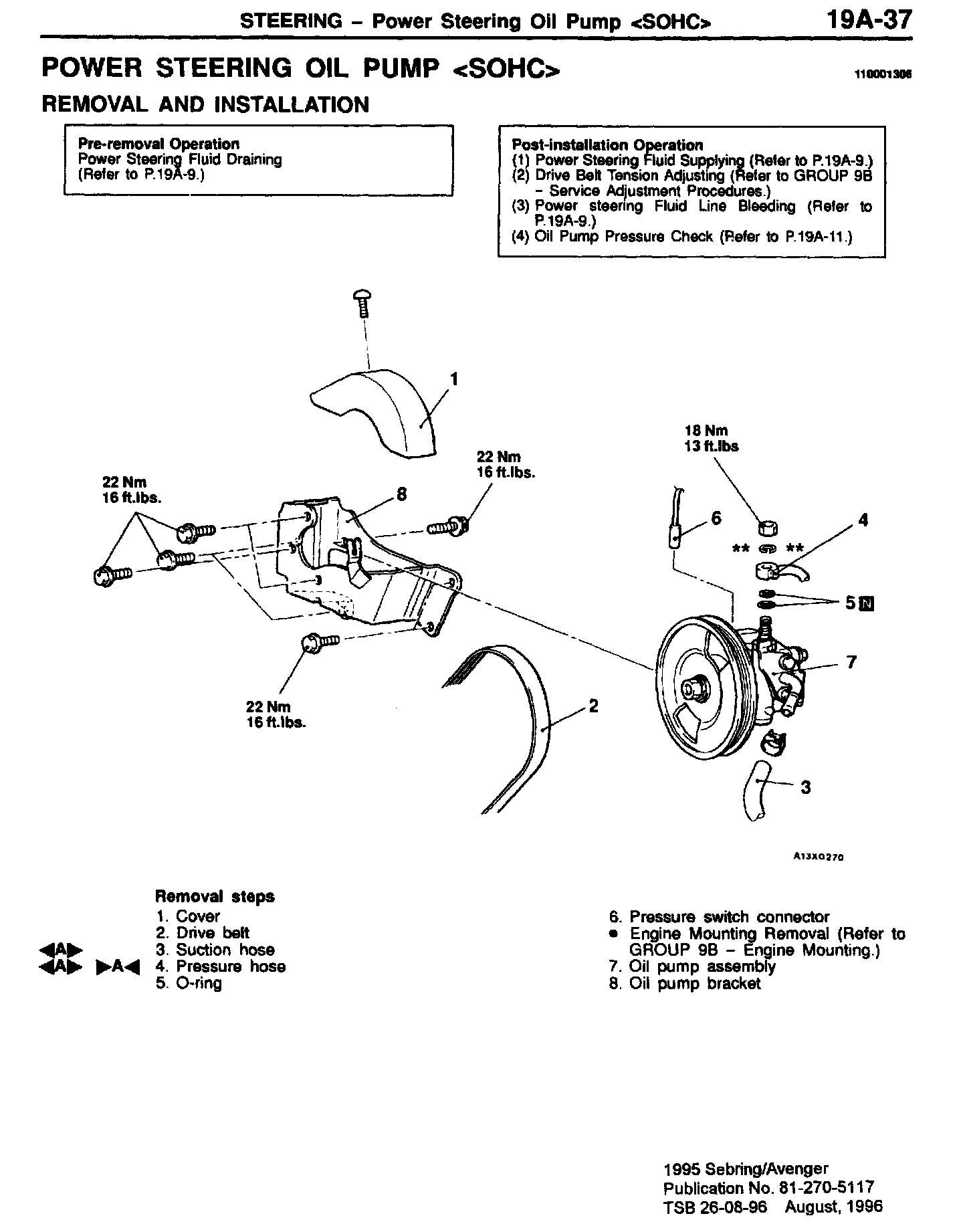

19A-37

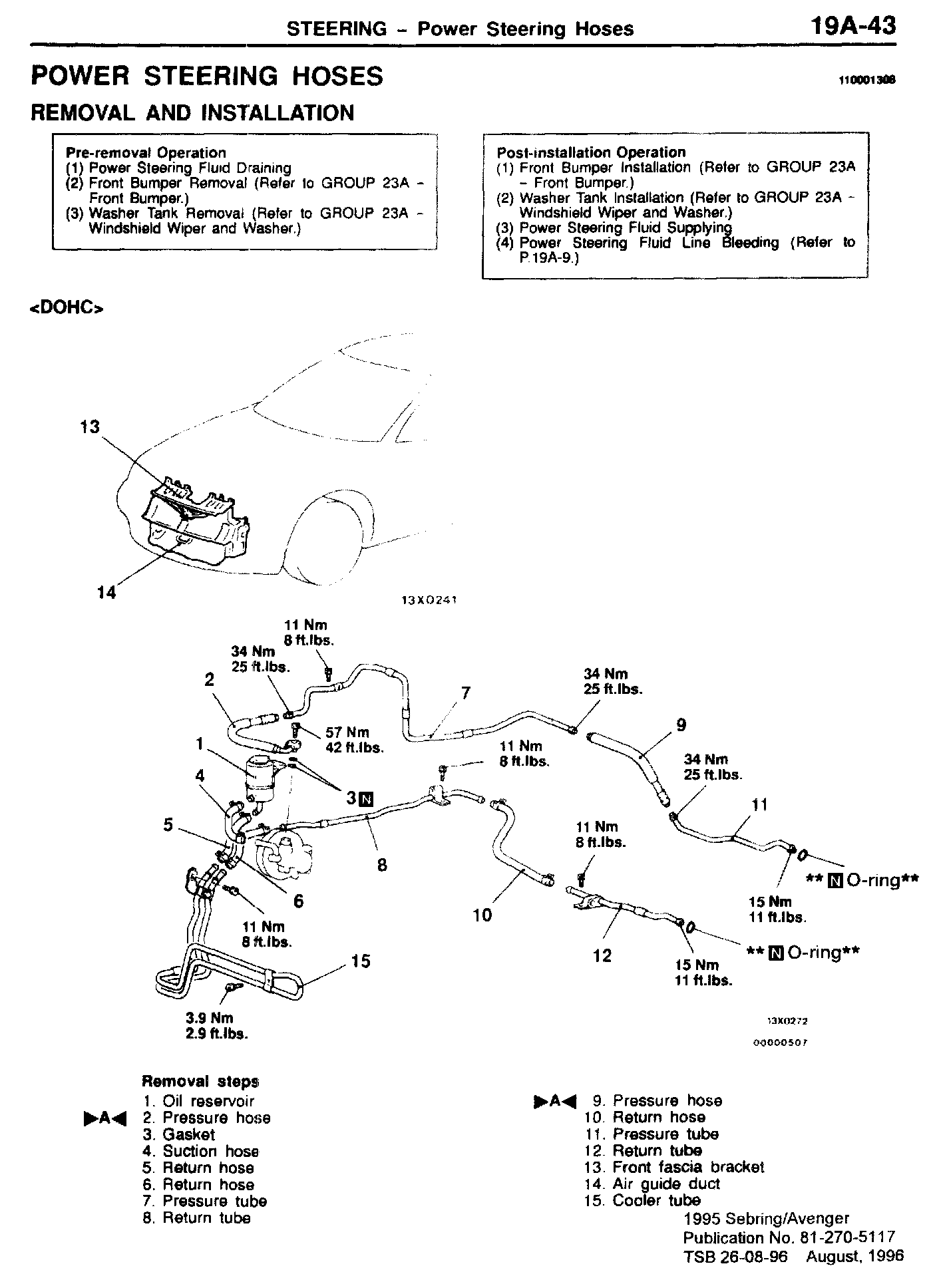

19A-43

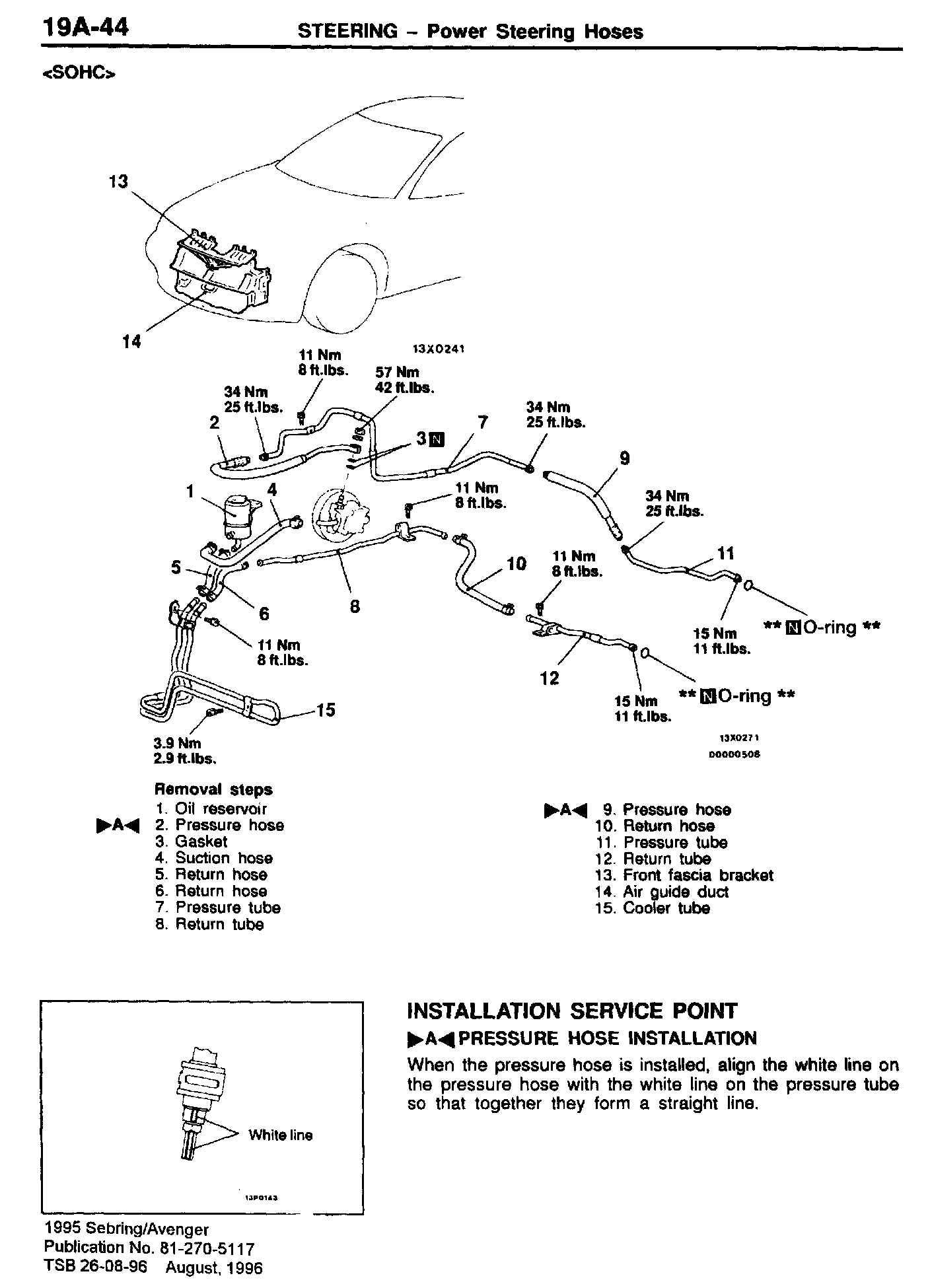

19A-44

Revisions to the power seat system diagnostics.

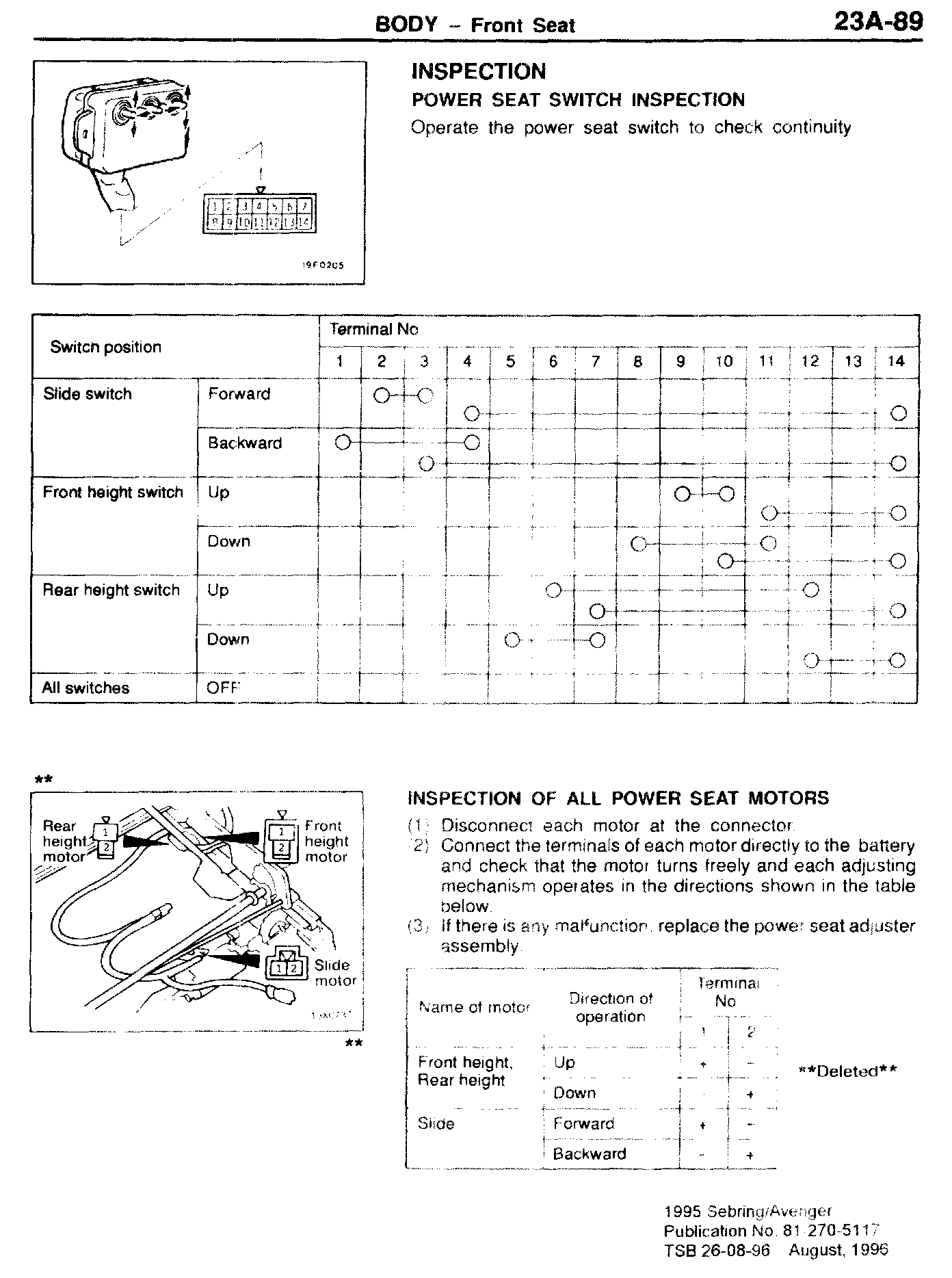

23A-89

Revision to the SRS system wiring pin locations.

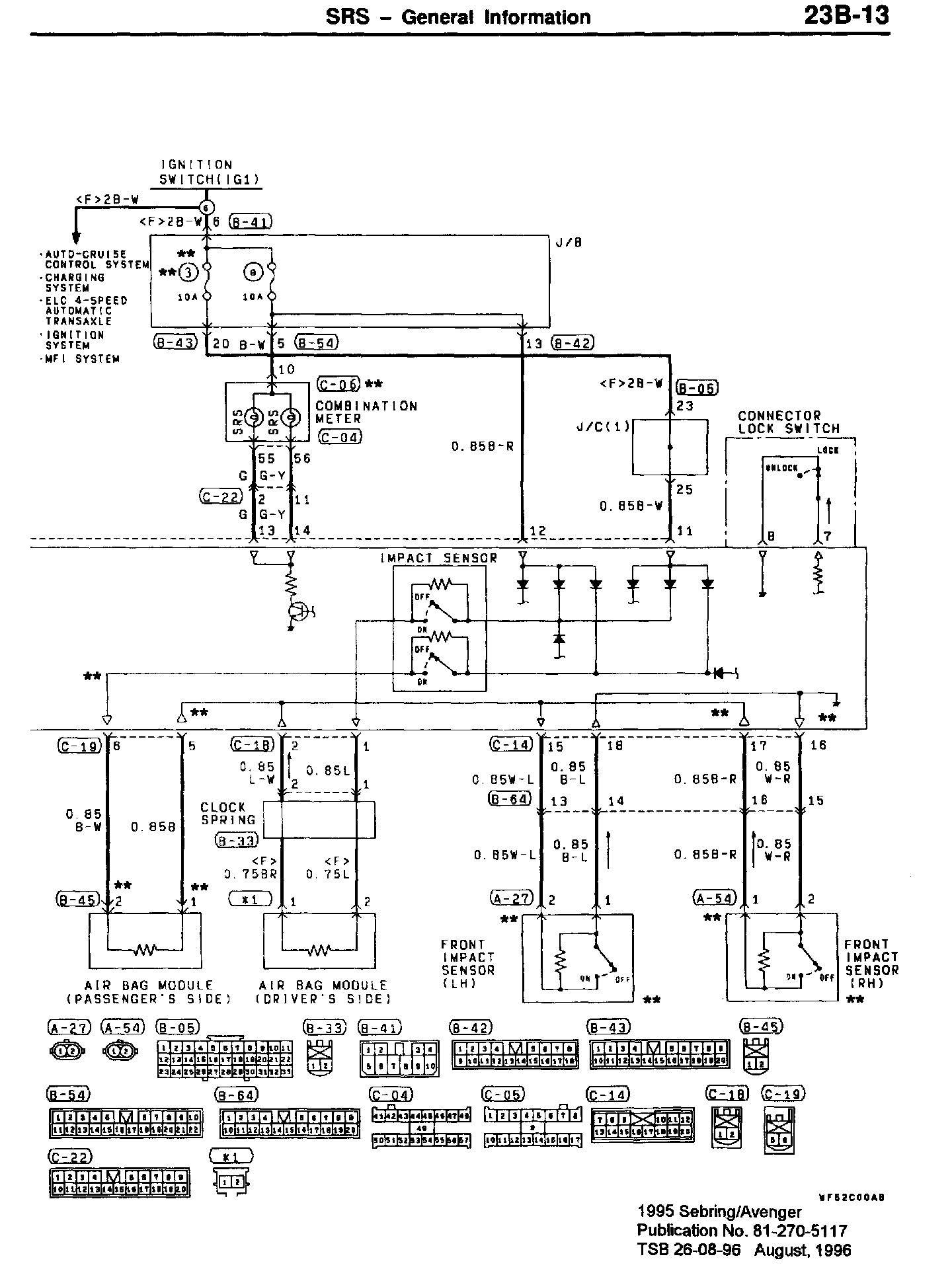

23B-13

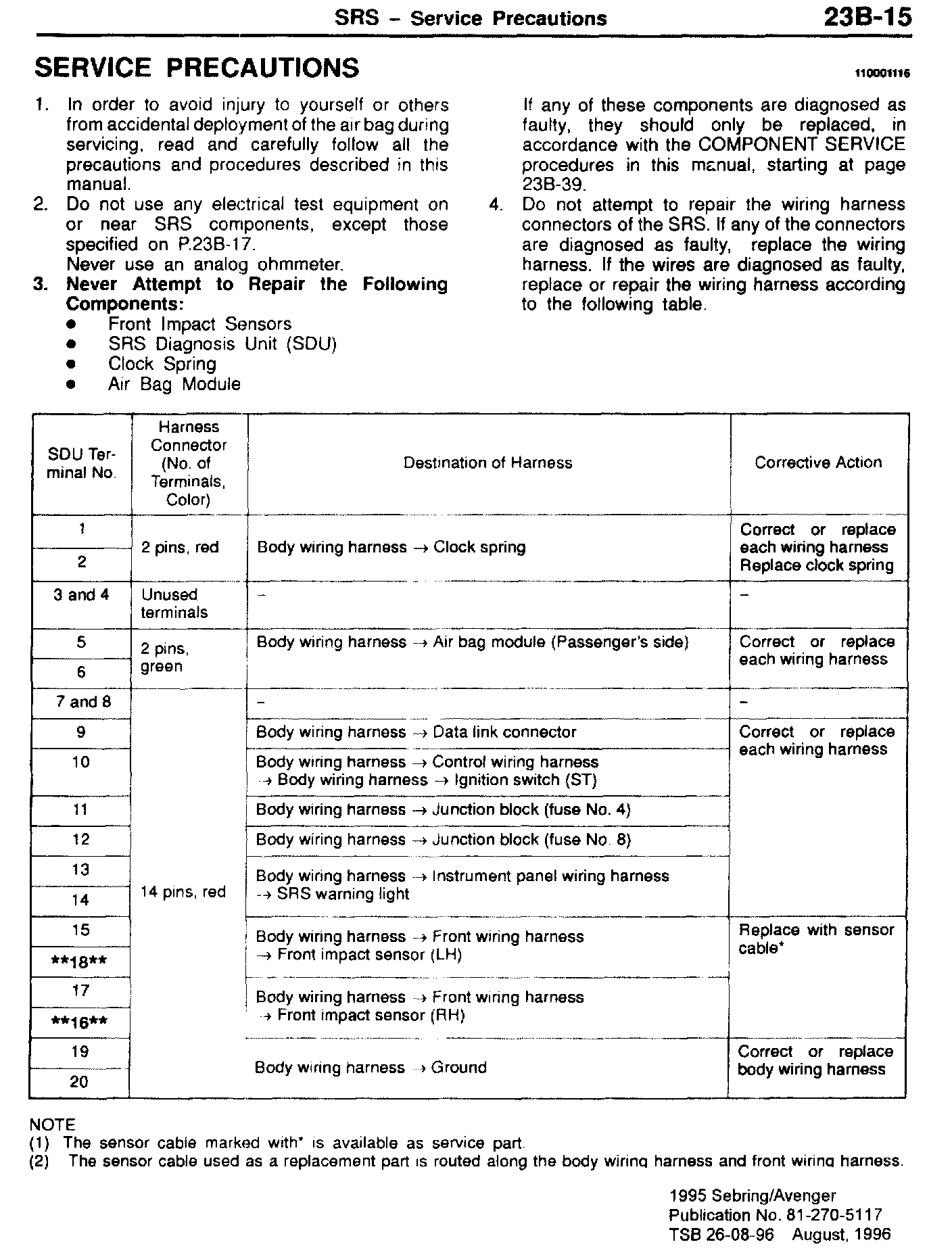

23B-15
