Fuel Tank Unit: Service and Repair










NOTE: When replacing the fuel pump assembly or the fuel gauge unit only, it is possible to work from the service holes underneath the rear seat cushion without having to remove the fuel tank.


FUEL GAUGE UNIT AND PUMP ASSEMBLY REPLACEMENT
1. Remove the rear seat cushion.
2. Remove the protector.

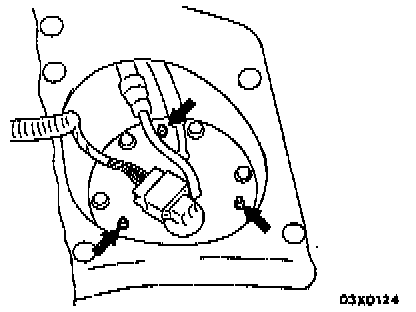

3. Disconnect the hoses and connectors to remove the fuel pump assembly or fuel gauge unit.
4. Align the packing positioning projections with the holes in the fuel pump assembly.
