Oxygen Sensor(s)
Alldata editor's note: The following images are provided by OE but contain conflicting information. All images are provided to aid in the location of a particular sensor. Verify the sensor in question by its wiring color or pinout.
Heated Oxygen Sensor 1:
Heated Oxygen Sensor 2:
Heated Oxygen Sensor 3 & 4:
Rear Bank Oxygen Sensor 1/1:

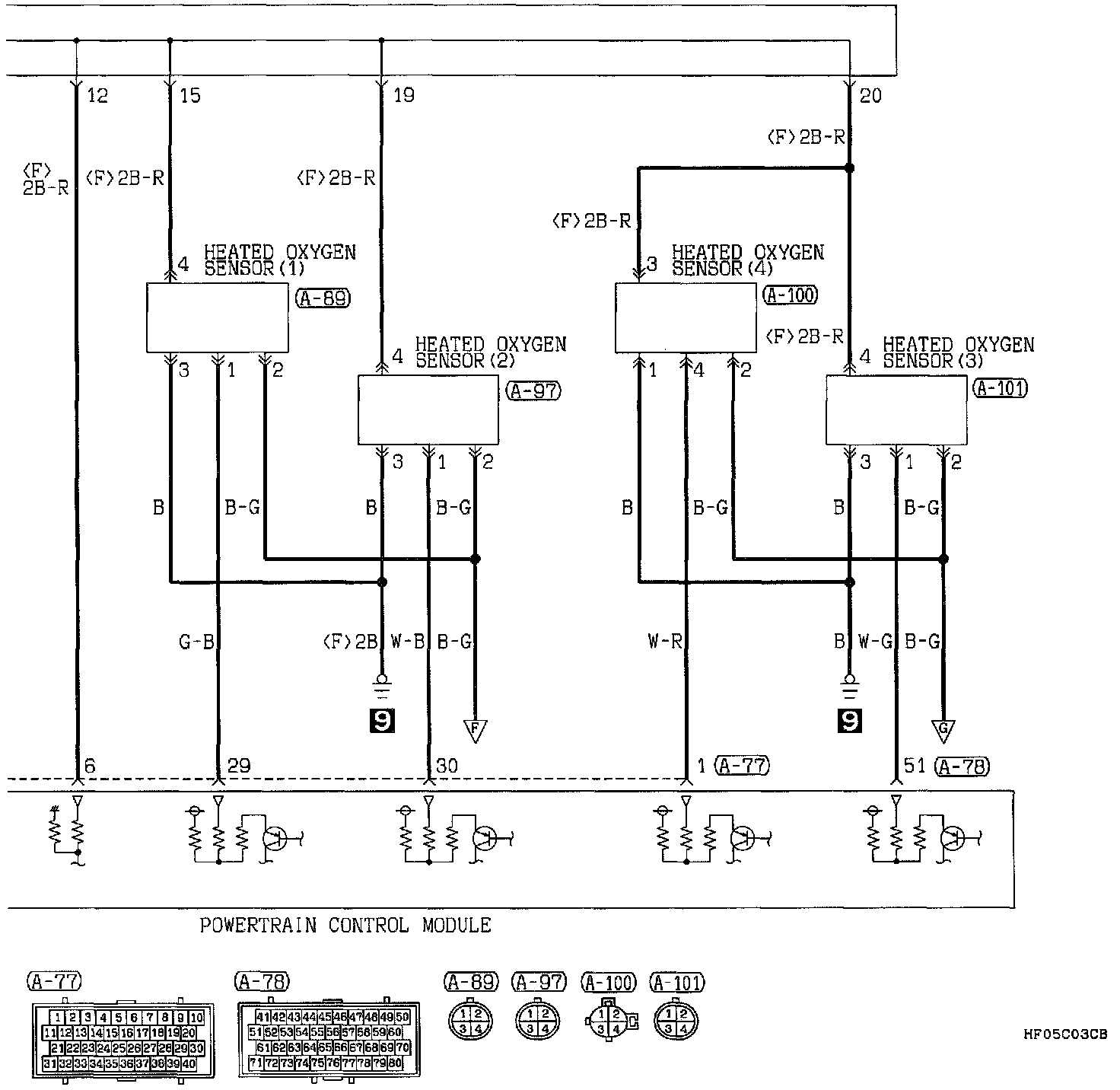

MFI System (Part 6 Of 10):
PCM Connector View:

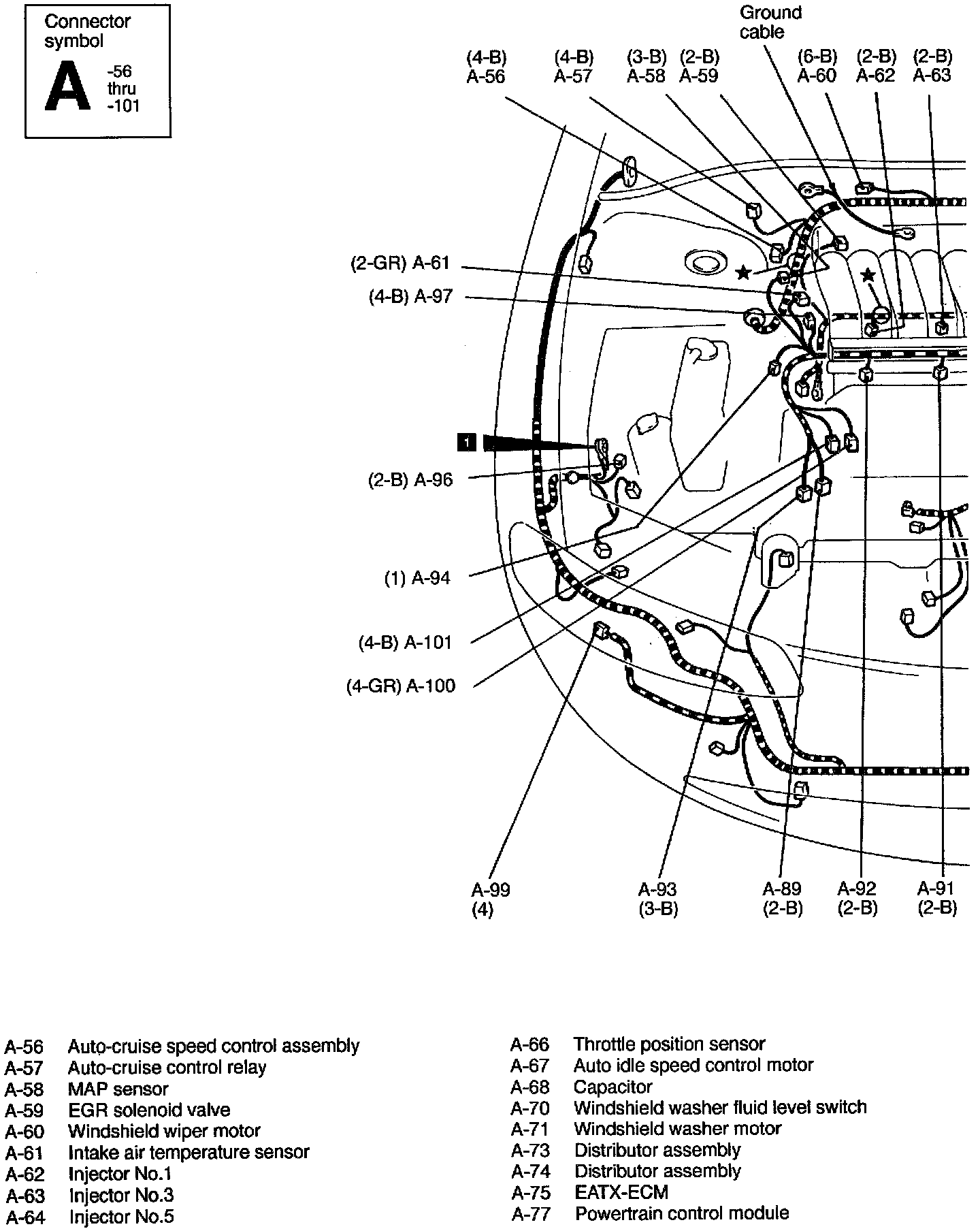

A Connectors - Engine Compartment Harness (Part 3 Of 4):

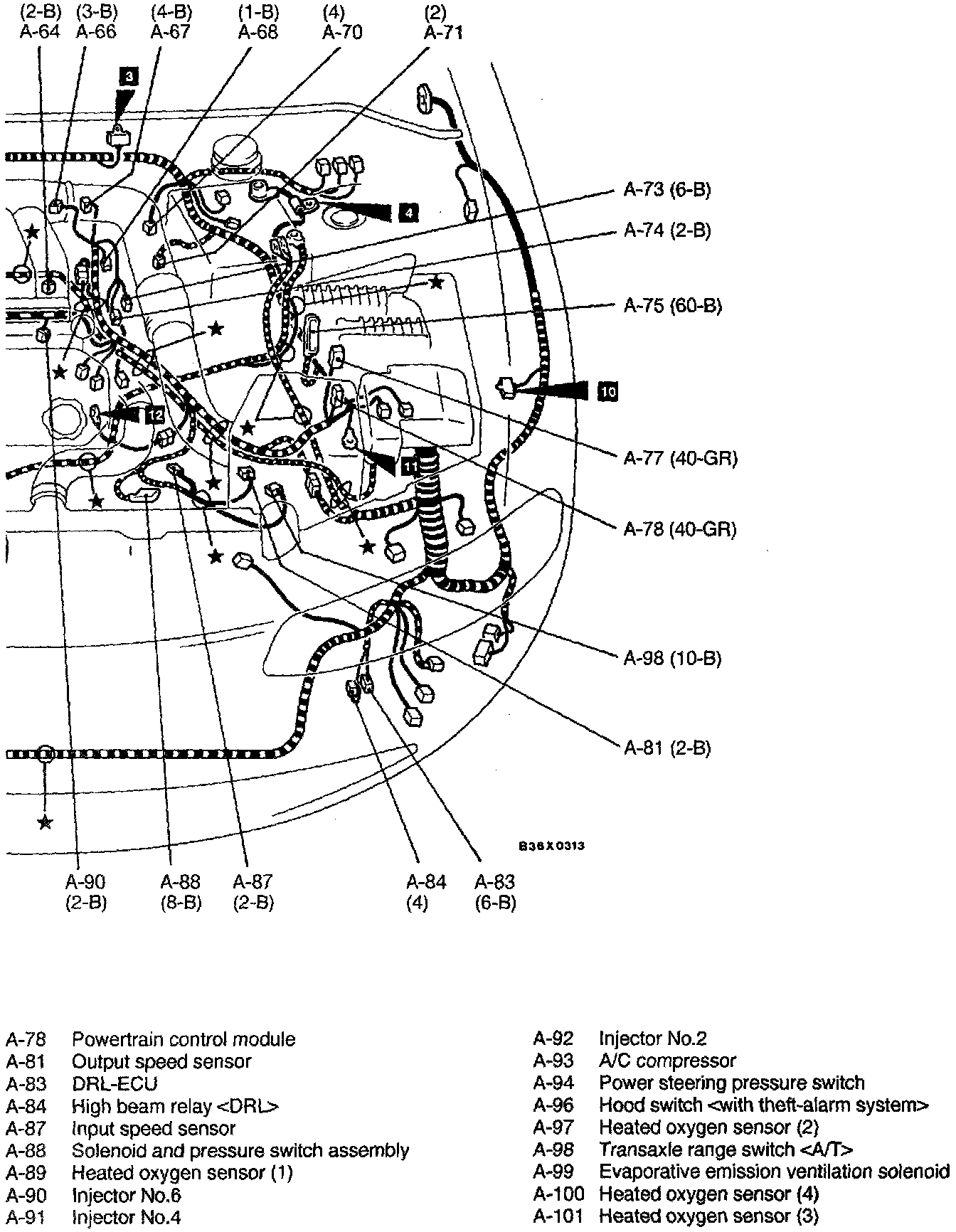

A Connectors - Engine Compartment Harness (Part 4 Of 4):
