Timing Cover: Service and Repair

REMOVAL
1. Remove right inner splash. shield.
2. Remove the accessory drive belts.
3. Remove right engine mount.
4. Remove crankshaft damper.

NOTE: To remove engine mount bracket the lower timing belt cover must be removed first.

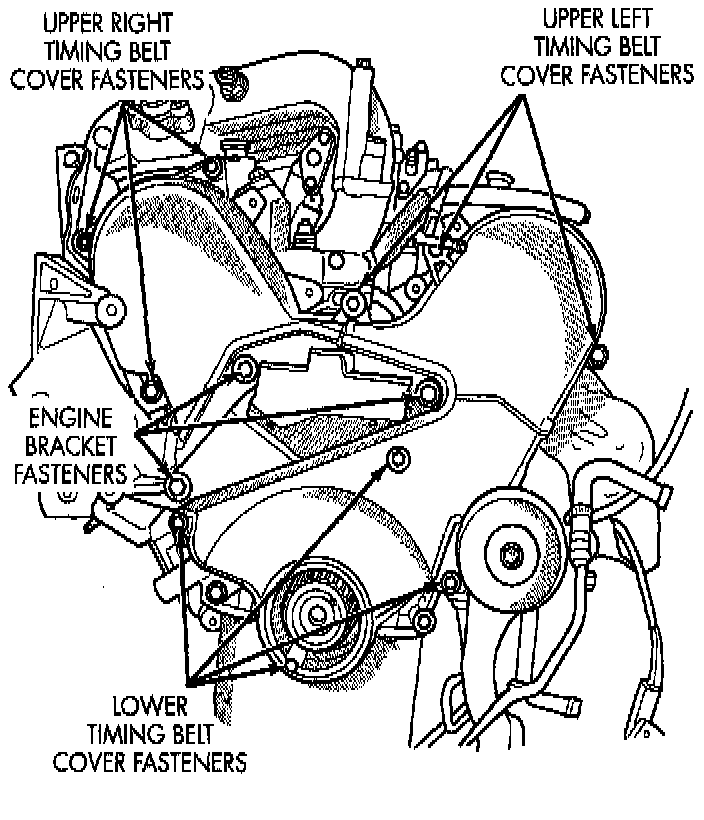

Timing Belt Covers:

5. Remove the right engine mount bracket.
6. Remove the timing belt covers. Remove covers in this order:
a. Upper left cover.
b. Lower cover.
c. Upper right cover.

NOTE: To remove right/rear timing belt cover, the power steering pump bracket must be removed.

7. To install, reverse removal procedures.
