Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
1998
>>
LHS V6-3.5L VIN G
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Heating and Air Conditioning
>>
Automatic Temperature Control (ATC) HVAC System
>>
10A Mode Door Output Shorted to GroundTrouble Code
10A Mode Door Output Shorted to GroundTrouble Code
Related Images:

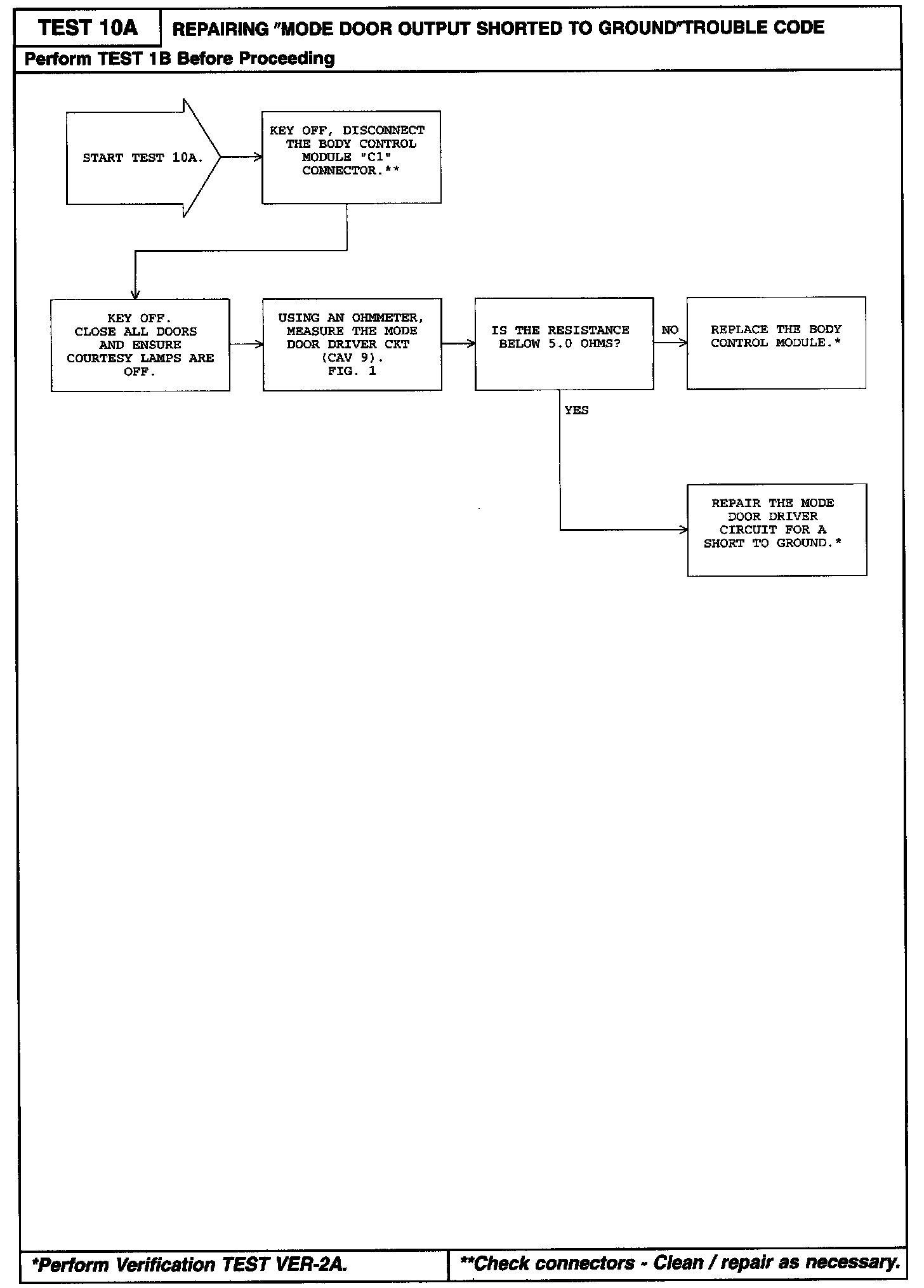

Diagnostic Chart:
