Marker Lamp: Service and Repair

Front Side Marker Lamp

REMOVAL
1. Remove screw attaching side marker lamp.

Tail Lamp Connector:

2. Remove housing by pulling rearward and away from fascia.
3. Rotate lamp socket counterclockwise one quarter turn.

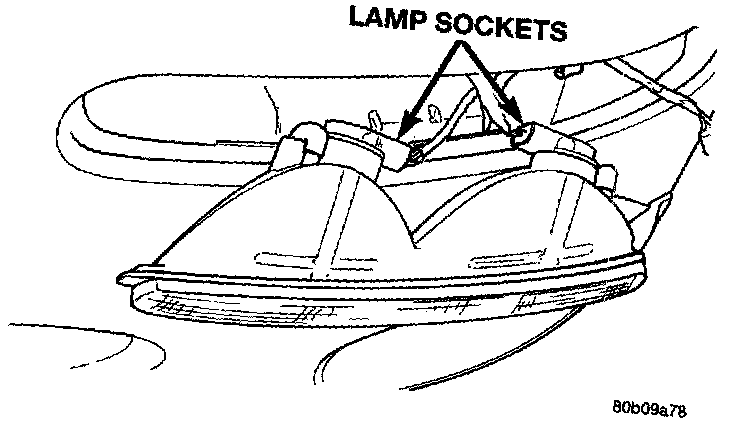

Front Side Marker Lamp Sockets:

4. Pull bulb socket from the rear of lamp.
5. Remove side marker housing from vehicle.

INSTALLATION
1. Insert bulb socket into rear of housing.
2. Rotate park and turn signal socket clockwise one quarter turn.
3. Verify bulb(s) operation.
4. Install screw attaching side marker lamp.
