Oil Filter: Service and Repair

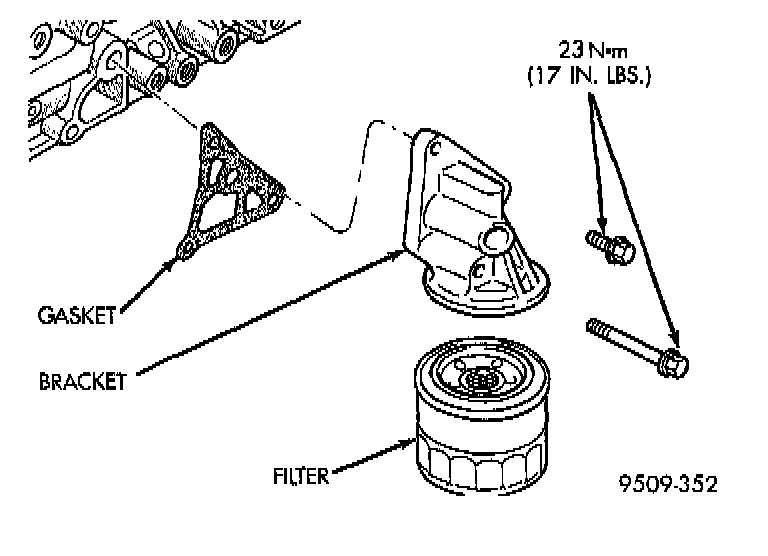

Oil Filter And Bracket:

CAUTION: When servicing the oil filter avoid deforming the filter can by installing the remove/install tool band strap against the can-to-base lockseam. The lockseam joining the can to the base, is reinforced by the base plate.

1. Turn filter counterclockwise to remove.
2. To install; lubricate new filter gasket. Screw filter on until gasket contacts base. Tighten to 14 Nm (10 ft. lbs.)
