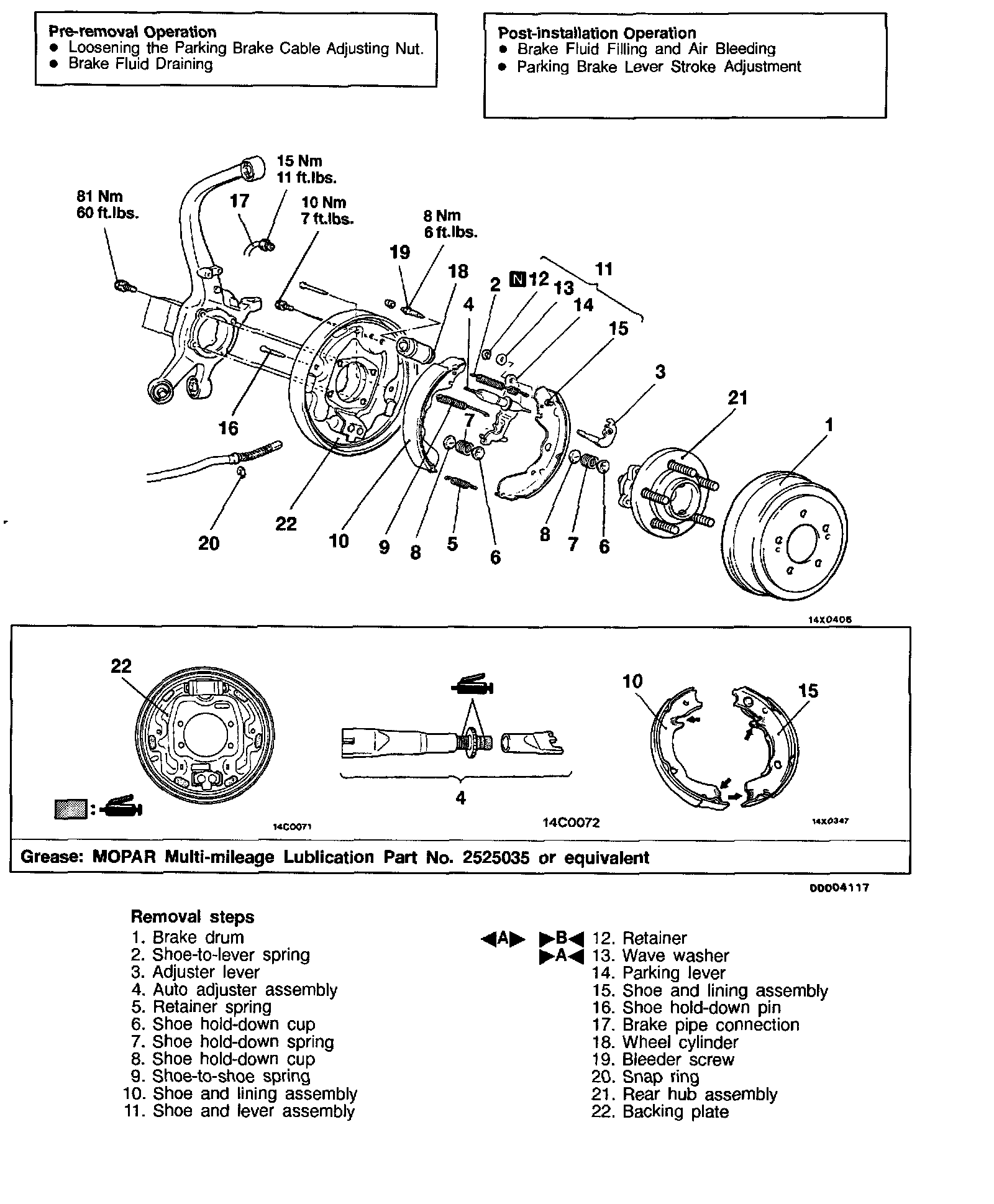

Drum Brake System: Service and Repair
REMOVAL Removal Service Point Retainer Removal Use a flat-tipped screwdriver or the like to open up the retainer joint, and remove the retainer.
INSTALLATION Installation Service Points >A< Wave Washer Installation Install the washer in the direction shown.
B< Retainer Installation Use pliers or the like to install the retainer on the pin.
