Valve Guide: Testing and Inspection
(1)

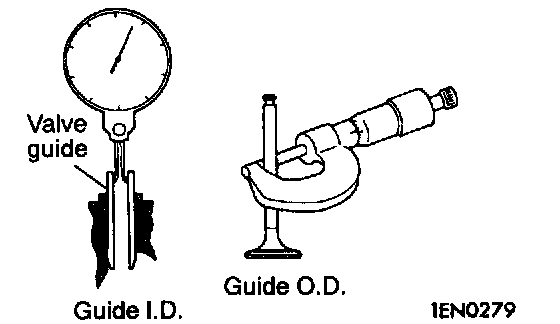

Measure the clearance between the
valve guide and valve stem. If the limit is exceeded, replace the valve guide or valve, or both.
Standard value:
Intake:
0.02 - 0.05 mm (0.0008 - 0.0020 inches) Exhaust:
0.04 - 0.07 mm (0.0016 - 0.0028 -inches) Limit:
Intake:
0.10 mm (0.004 inches) Exhaust:
0.15 mm (0.006 inches)
