Transmission Mount: Service and Repair

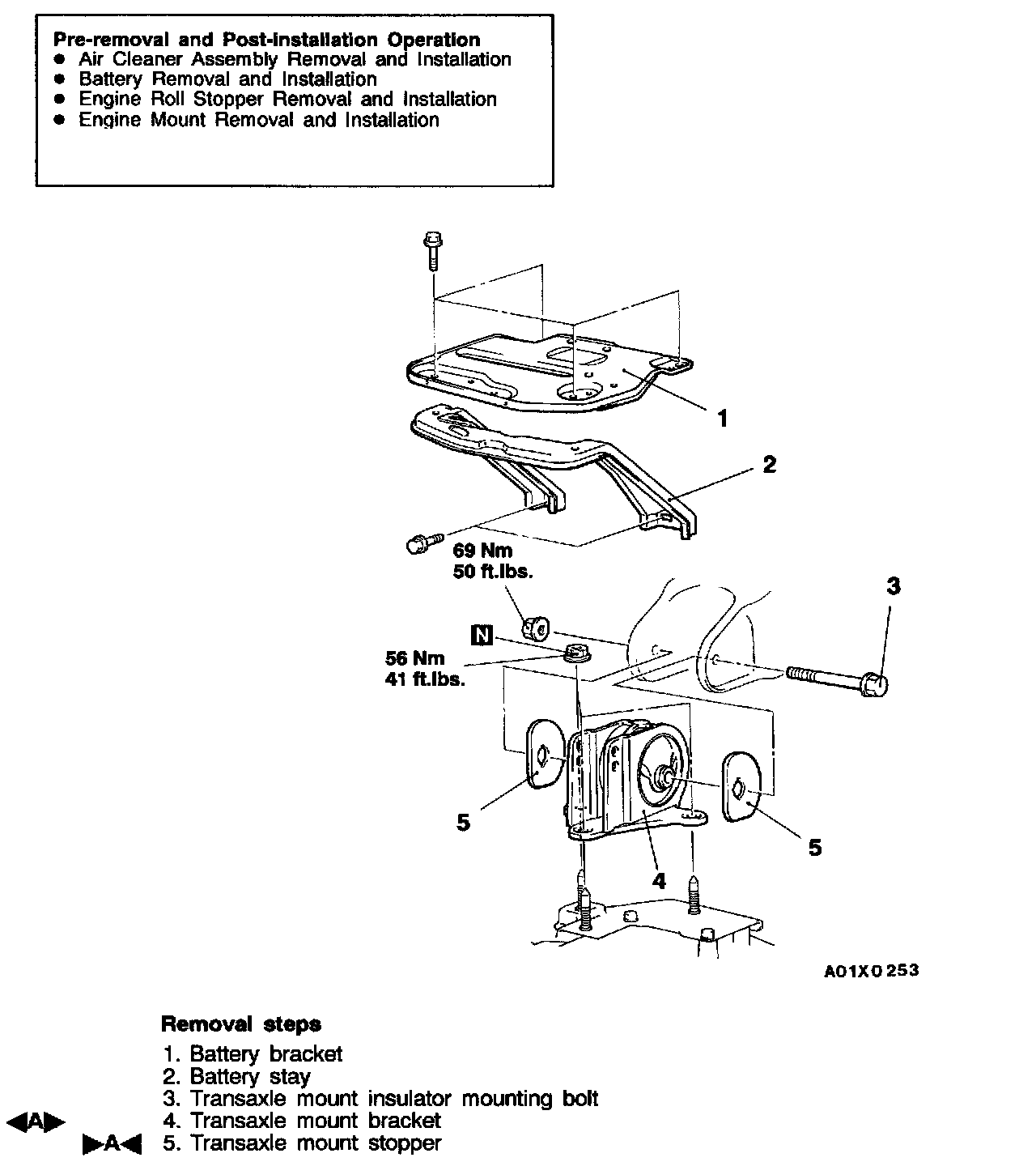

TRANSAXLE MOUNTING

REMOVAL SERVICE POINT

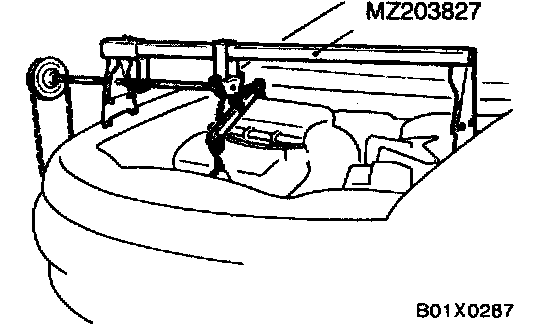

TRANSAXLE MOUNT BRACKET REMOVAL

Slightly lower the transaxle, and then remove the transaxle mount bracket.

INSTALLATION SERVICE POINT

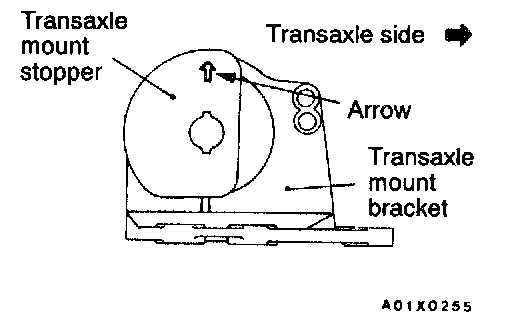

>A< TRANSAXLE MOUNT STOPPER INSTALLATION

Clamp the transaxle mount stopper so that the arrow points in the shown direction.

INSPECTION
- Check each insulator for cracks or damage.
- Check each bracket for deformation or damage.
