Installation

INSTALLATION

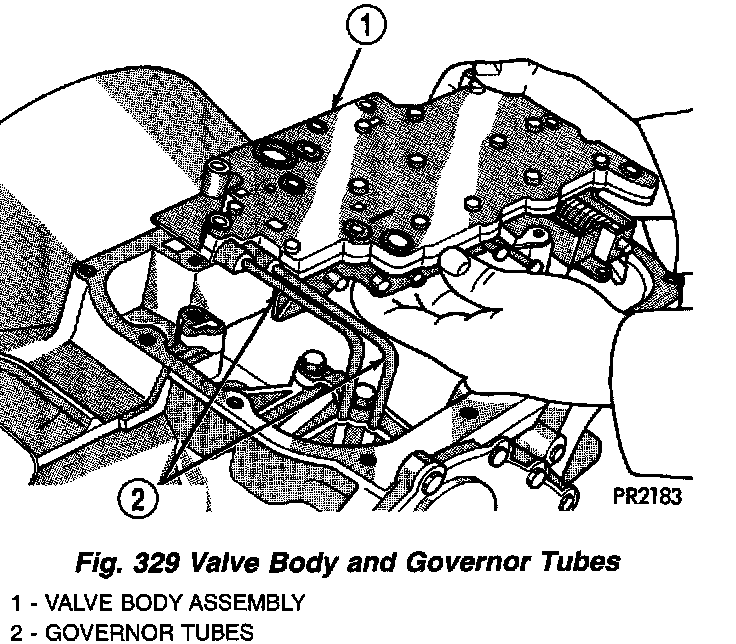

1. Install valve body to transaxle. Position governor tubes into case (Fig. 329).

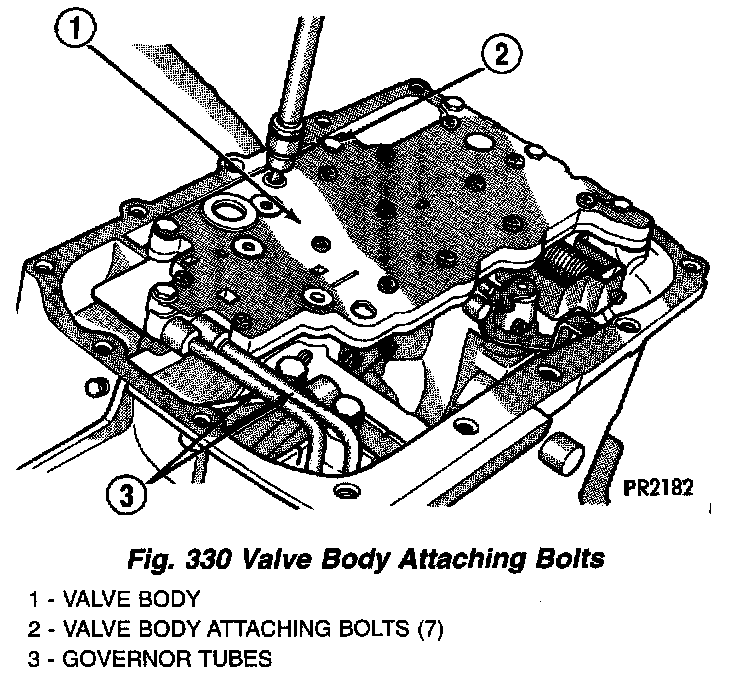

2. Install valve body-to-case bolts (Fig. 330) and torque to 12 Nm (105 inch lbs.).

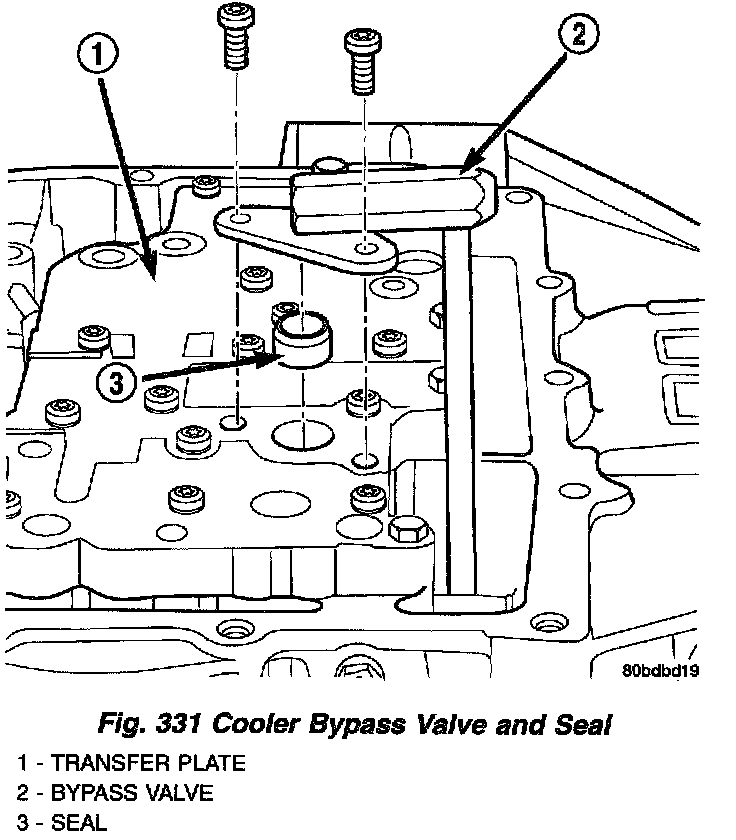

3. Install cooler bypass valve and seal (Fig. 331).

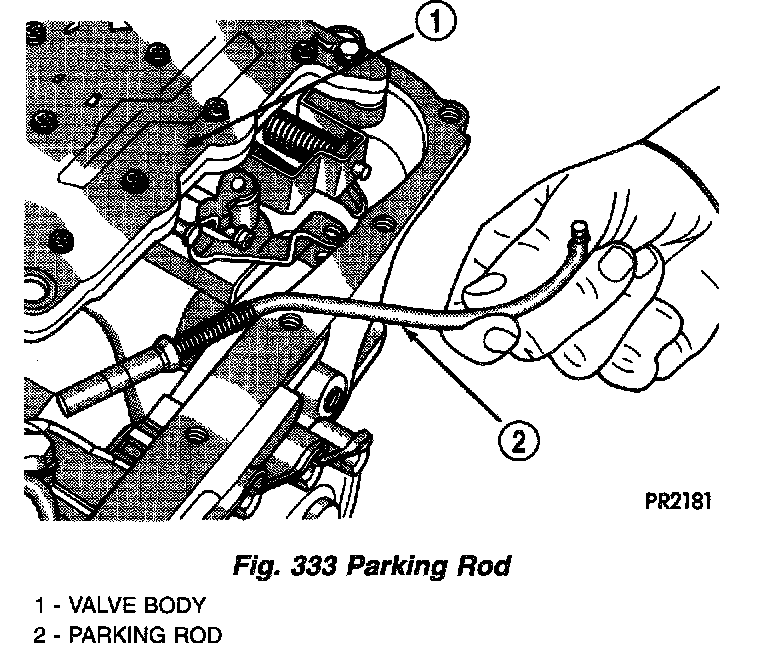

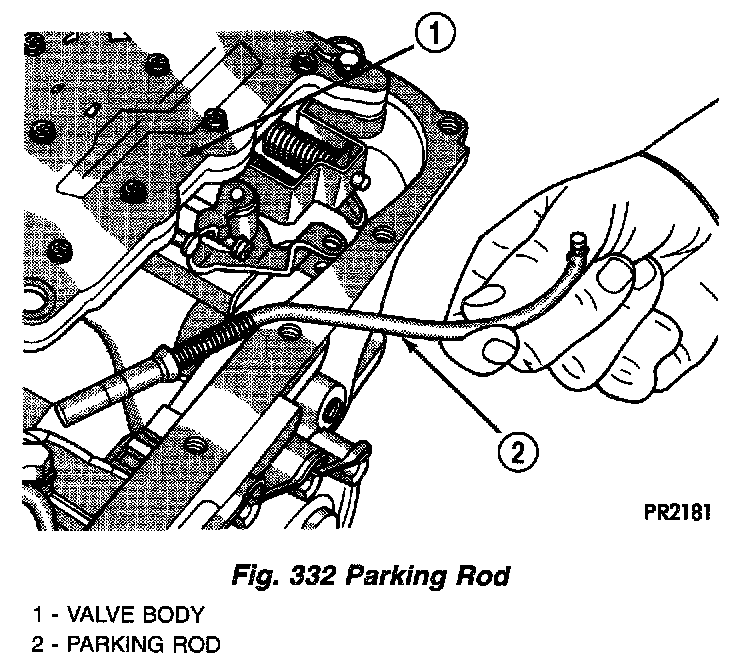

4. Install park rod to valve body and install e-clip (Fig. 332) (Fig. 333).

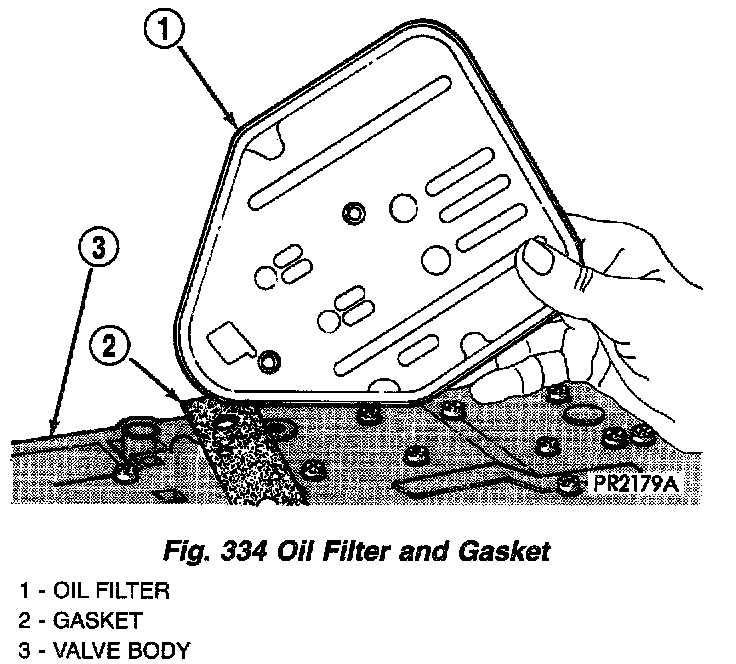

5. Install oil filter and gasket (Fig. 334).

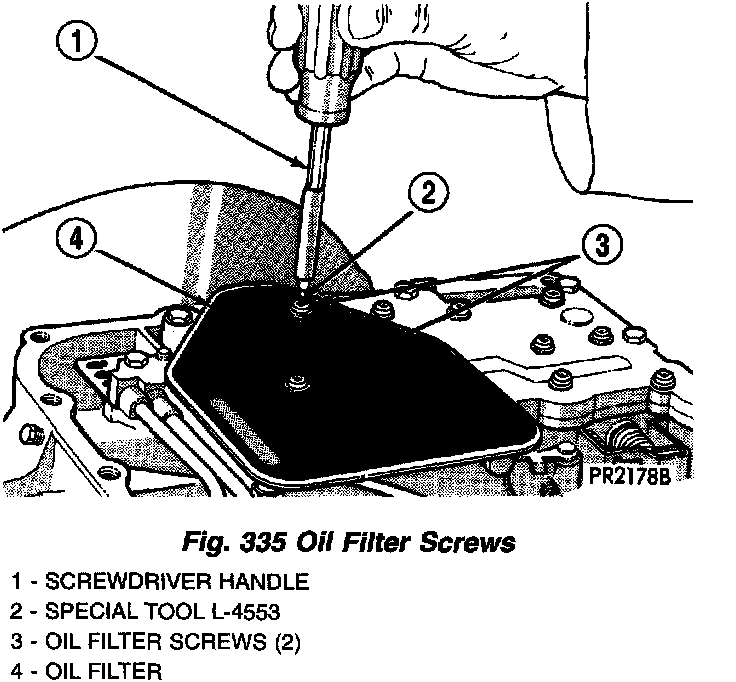

6. Install oil filter-to-valve body screws (Fig. 335) to 5 Nm (45 inch lbs.).

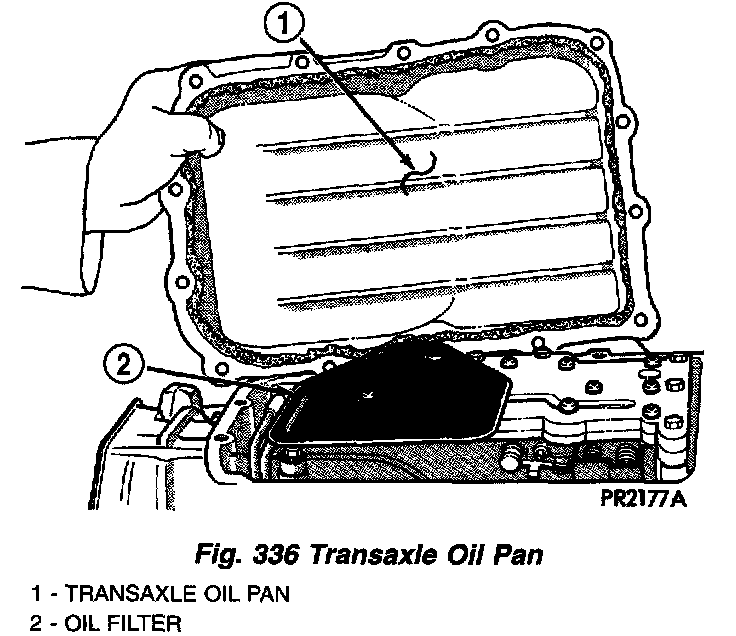

7. Install a bead of Mopar(R) Silicone Rubber Adhesive Sealant to oil pan (Fig. 336) and immediately install to case.

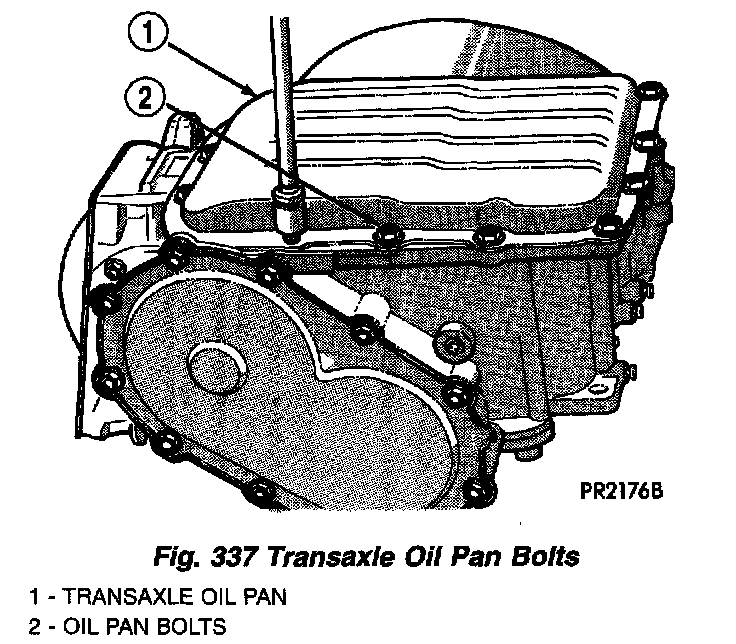

8. Install and torque oil pan-to-transaxle bolts (Fig. 337) to 19 Nm (165 inch lbs.).
9. Lower vehicle.
10. Connect torque converter clutch solenoid.
11. Connect gearshift cable to manual valve lever.
12. Connect throttle valve cable to throttle valve lever at transaxle.
13. Connect battery negative cable.
