Access Cover: Service and Repair
REMOVAL 1.
Grab the cover at the ends and pull straight up.

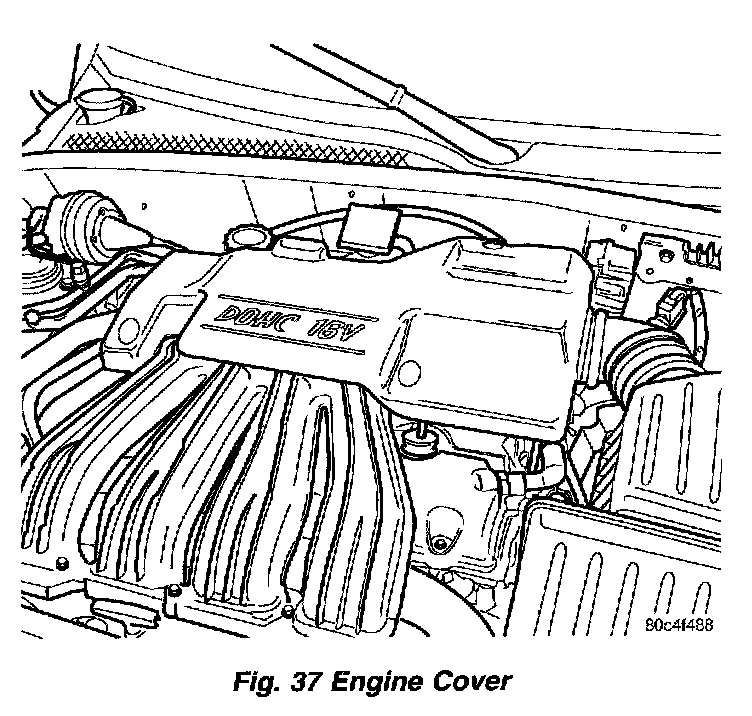

INSTALLATIONFig.37 Engine Cover:

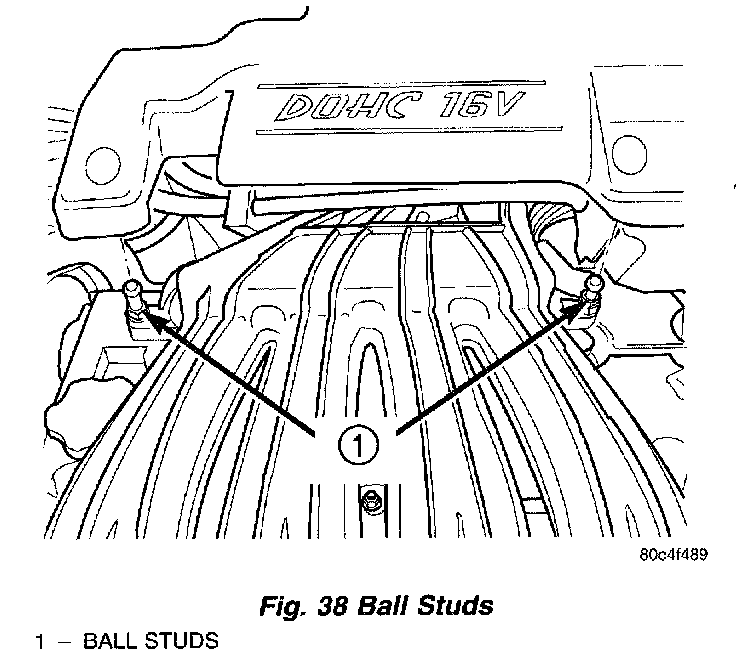

Fig.38 Ball Studs:

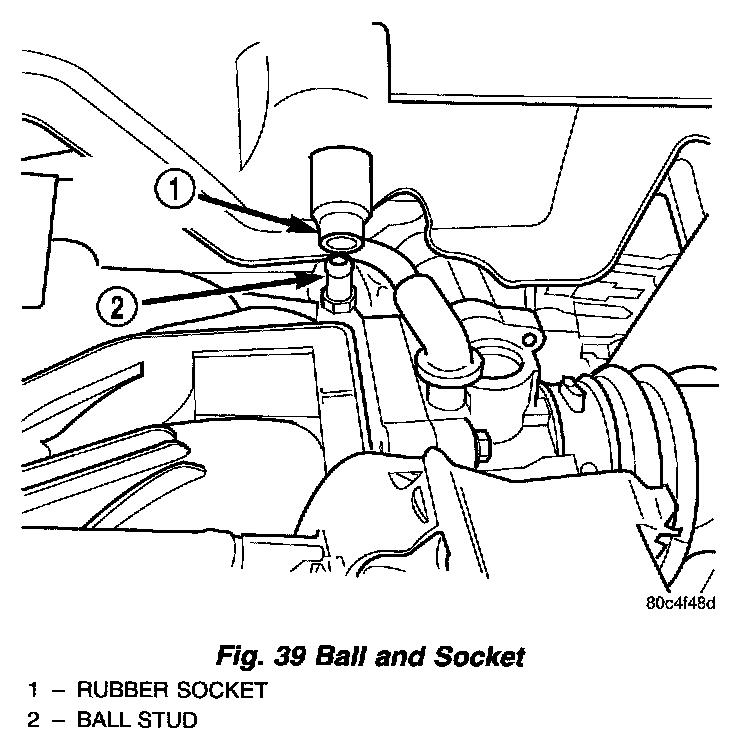

Fig. 39 Ball And Socket:
1.
Line up the rubber sockets with the ball stud (Fig. 39).
2.
Push down on cover until all 3 ball studs are seated in the rubber sockets.
