Procedures

REMOVAL
1. Open hood.

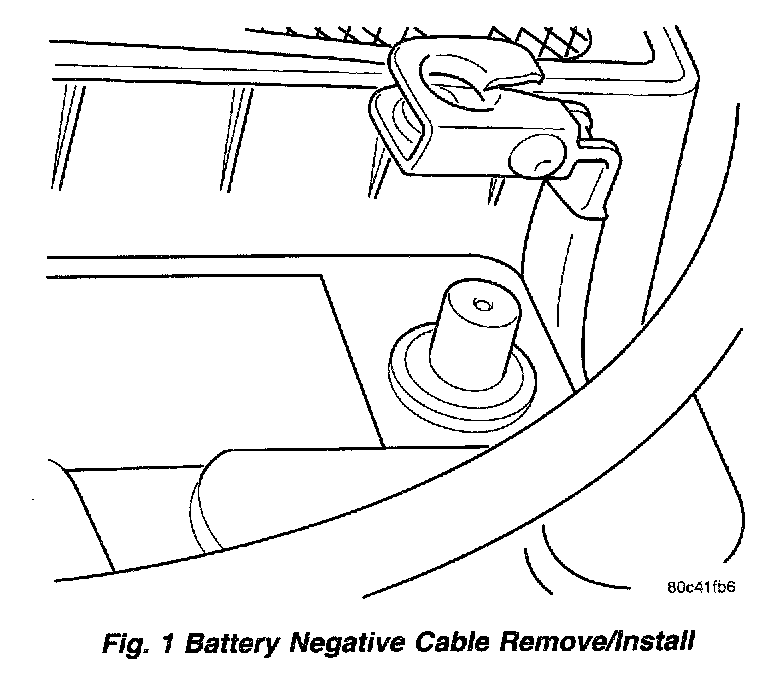

Fig.1 Battery Negative Cable Remove/Install:

2. Disconnect and isolate the battery negative cable.
3. Remove Front Seat assembly from vehicle.
4. Separate power seat switch and harness from seat adjuster.
5. Remove four power seat adjuster mounting screws from cushion pan and remove from seat assembly.

INSTALLATION
1. Install power seat adjuster and four power seat adjuster mounting screws to cushion pan.
2. Route and install the power seat switch and harness to the seat adjuster.
3. Install the front seat assembly.
4. Connect the battery negative cable.
5. Close hood.
6. Verify vehicle and system operation.
