Automatic Transmission/Transaxle

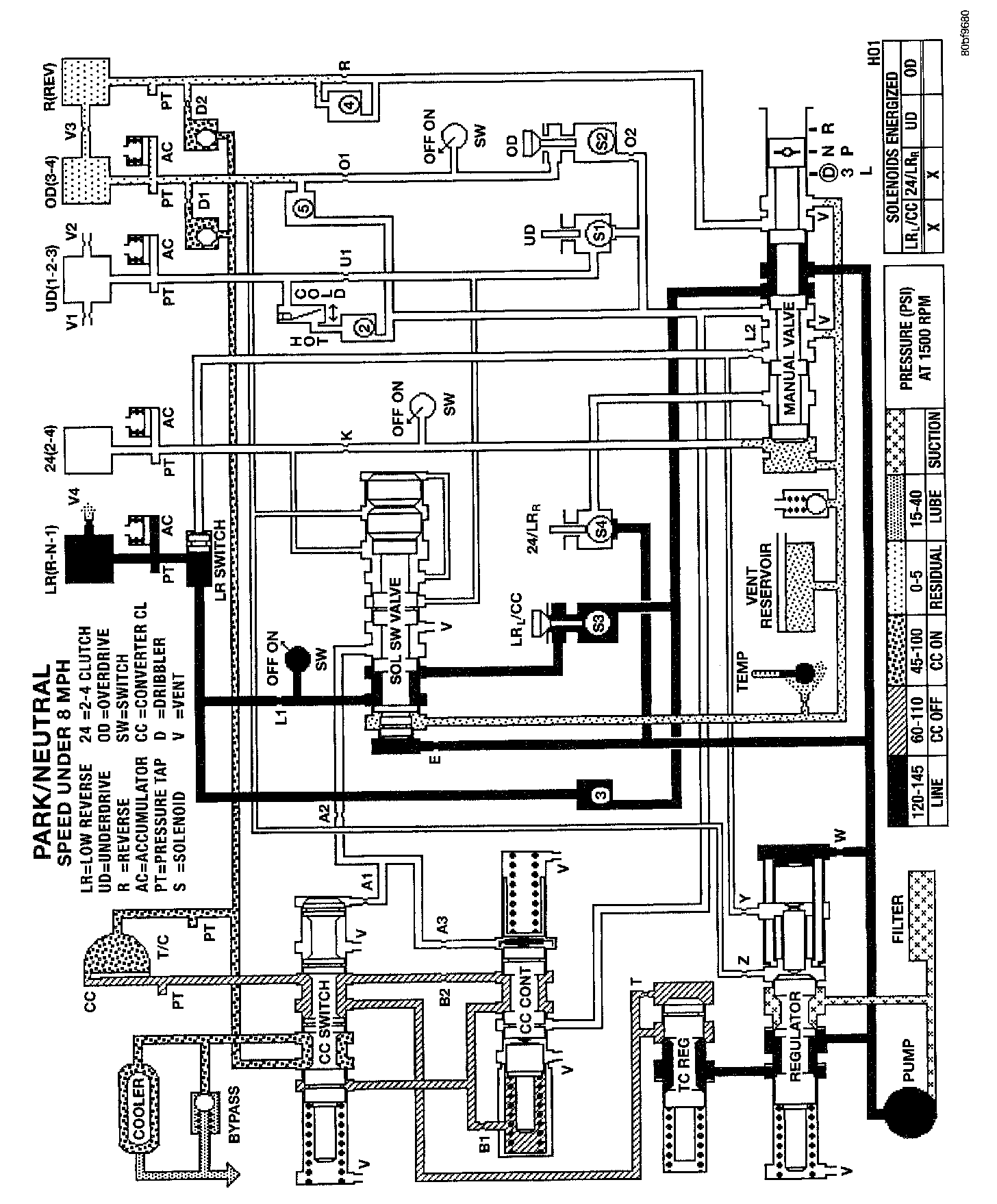

PARK/NEUTRAL - (Speed Under 8 mph)

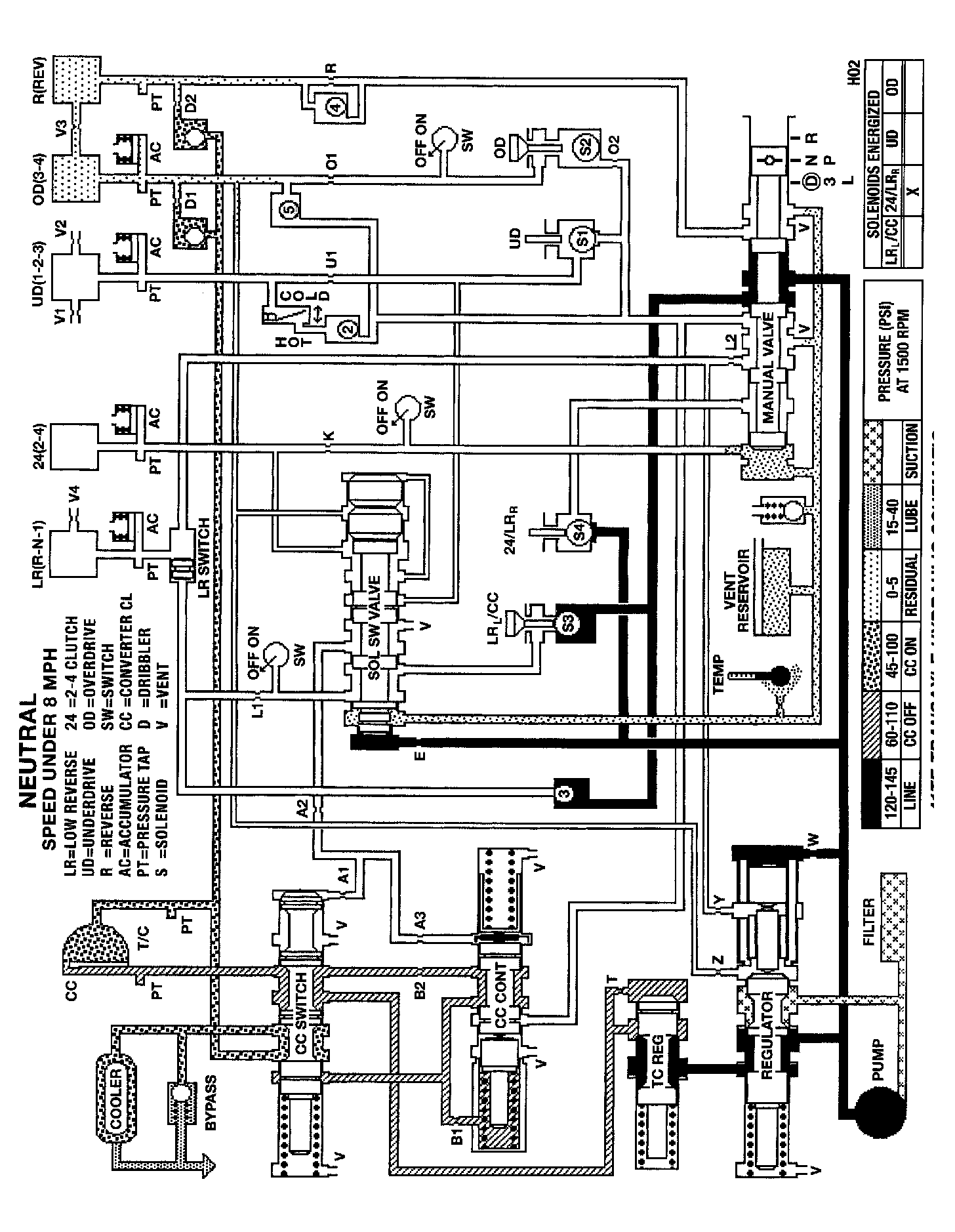

NEUTRAL - (Speed Under 8 mph)

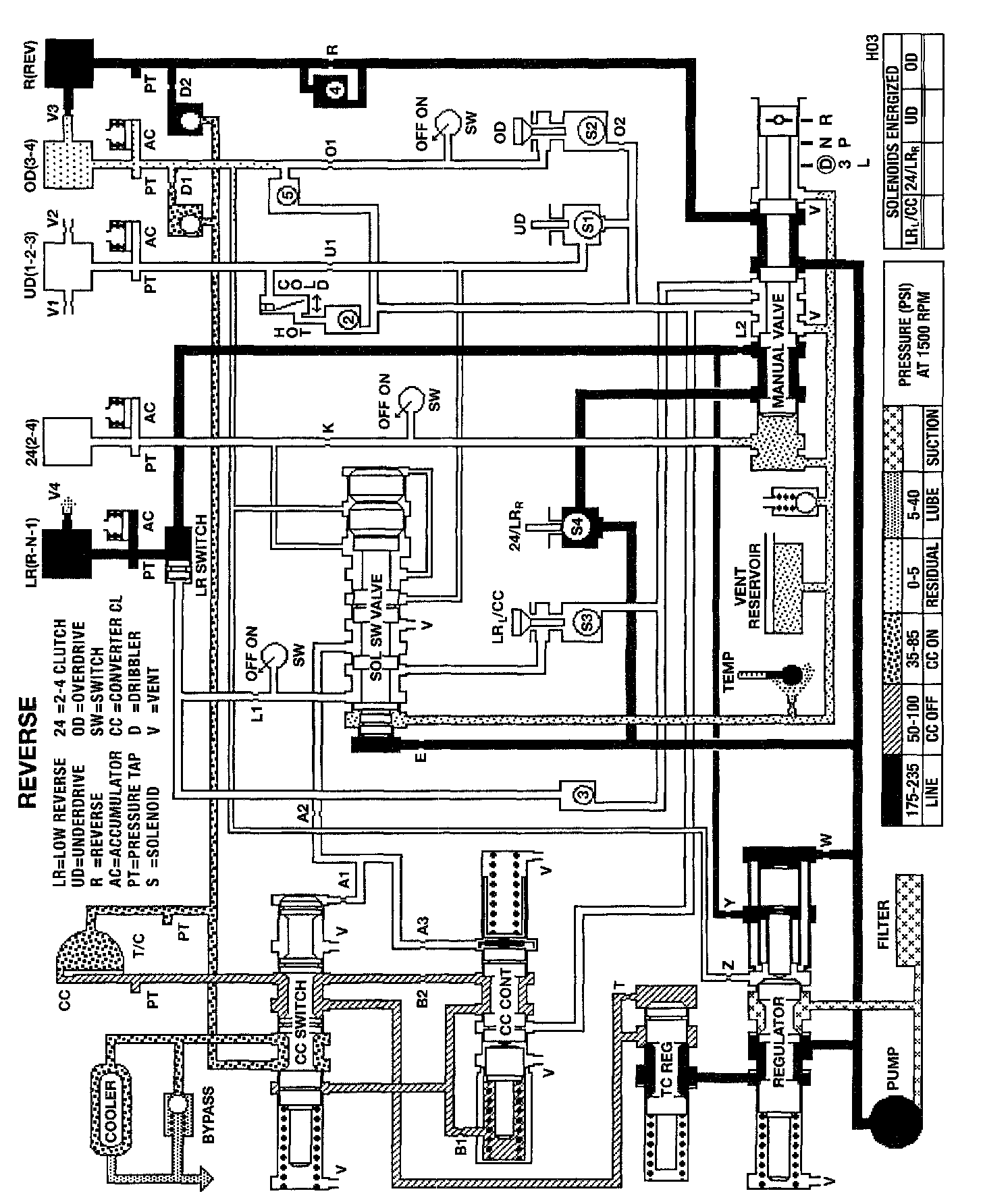

REVERSE

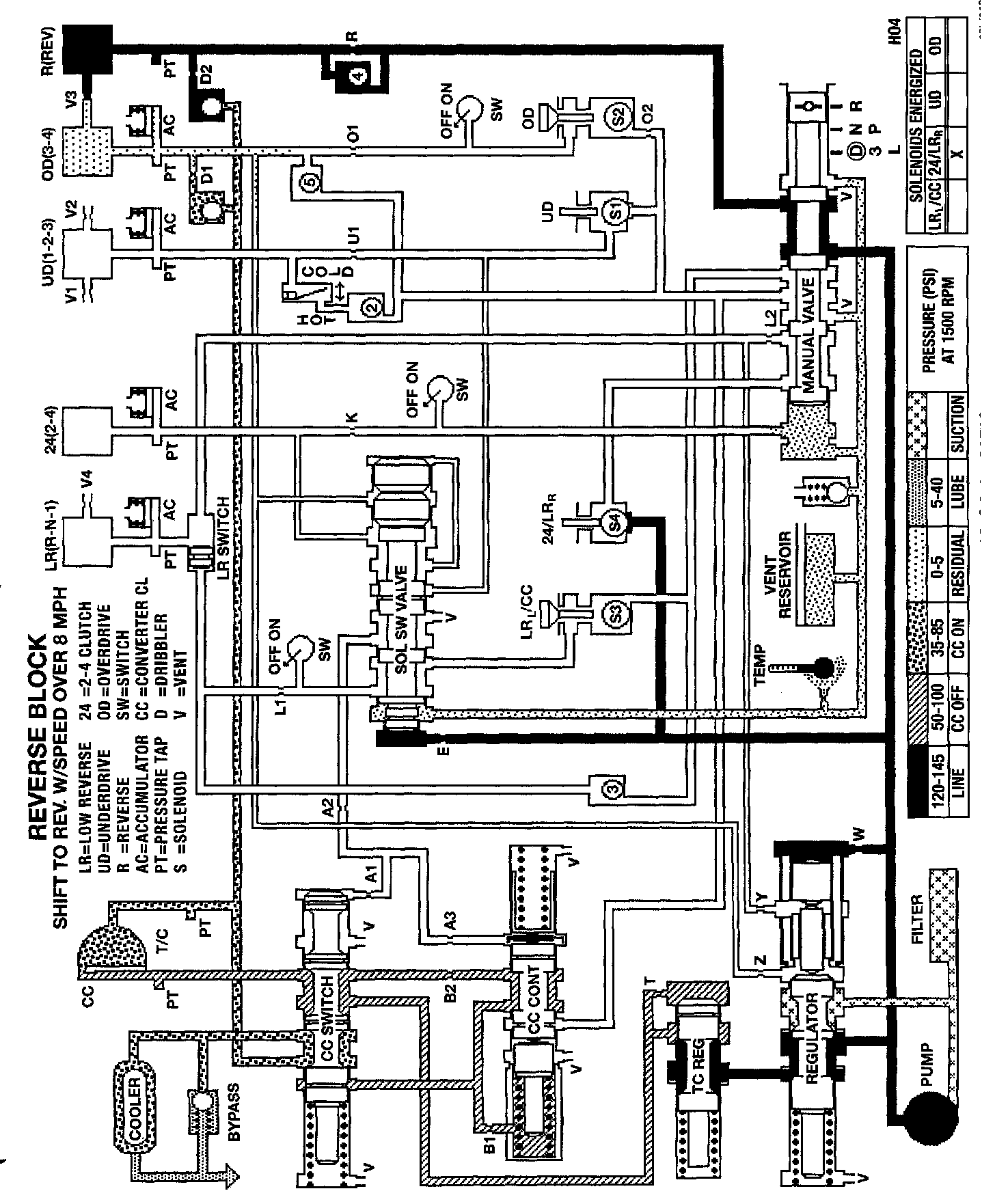

REVERSE BLOCK - Shift to Rev. w/Speed Over 8 mph)

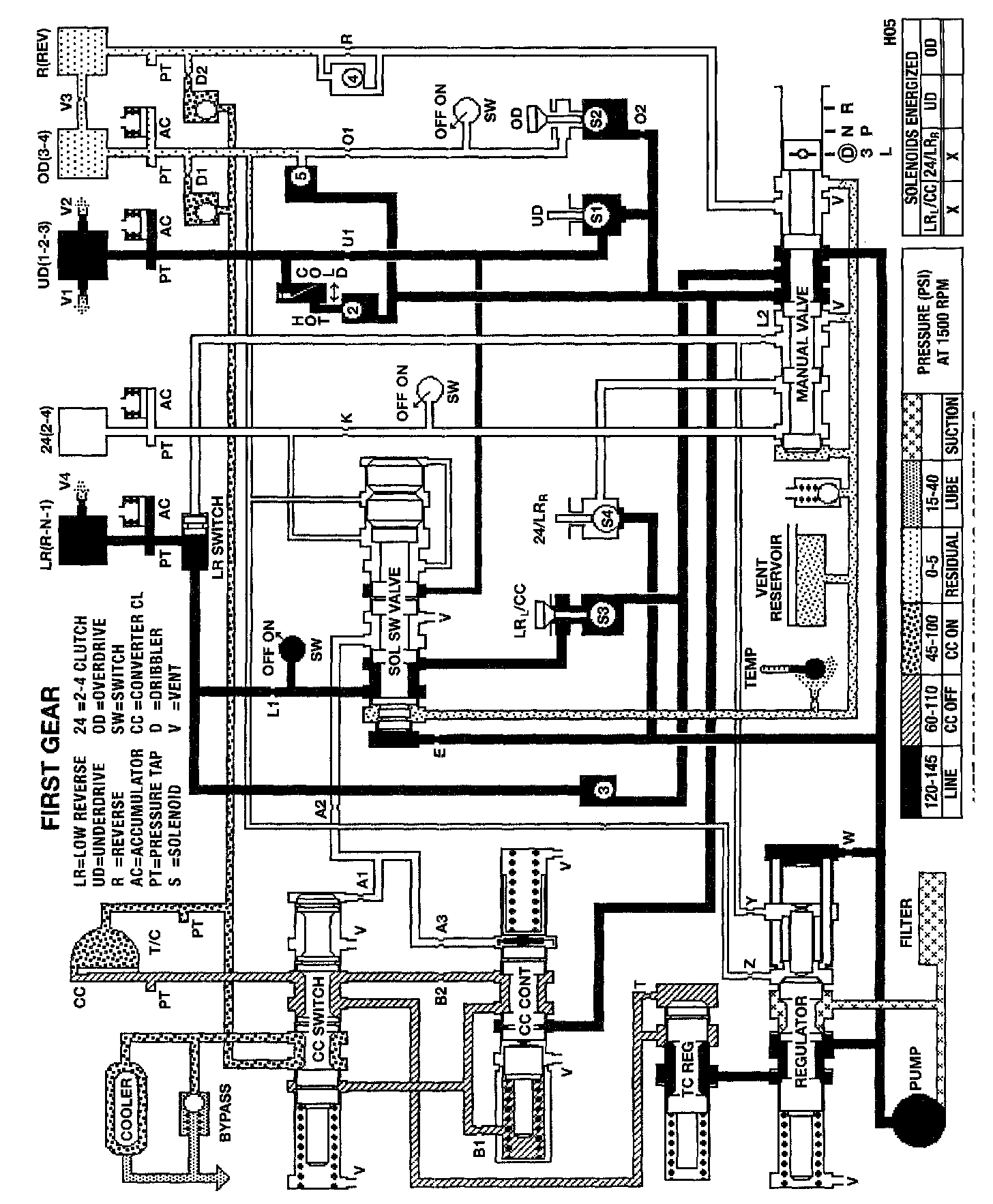

FIRST GEAR

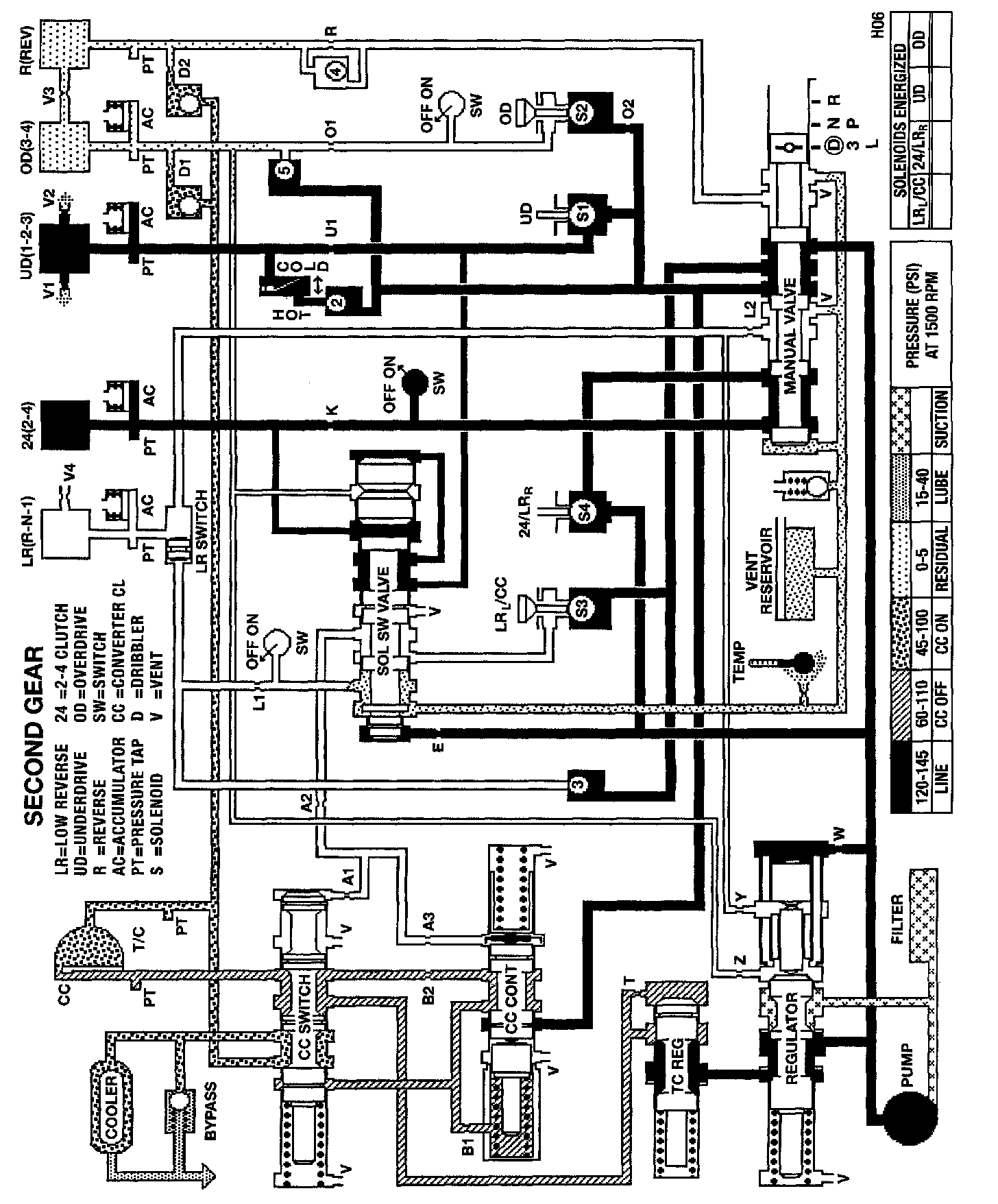

SECOND GEAR

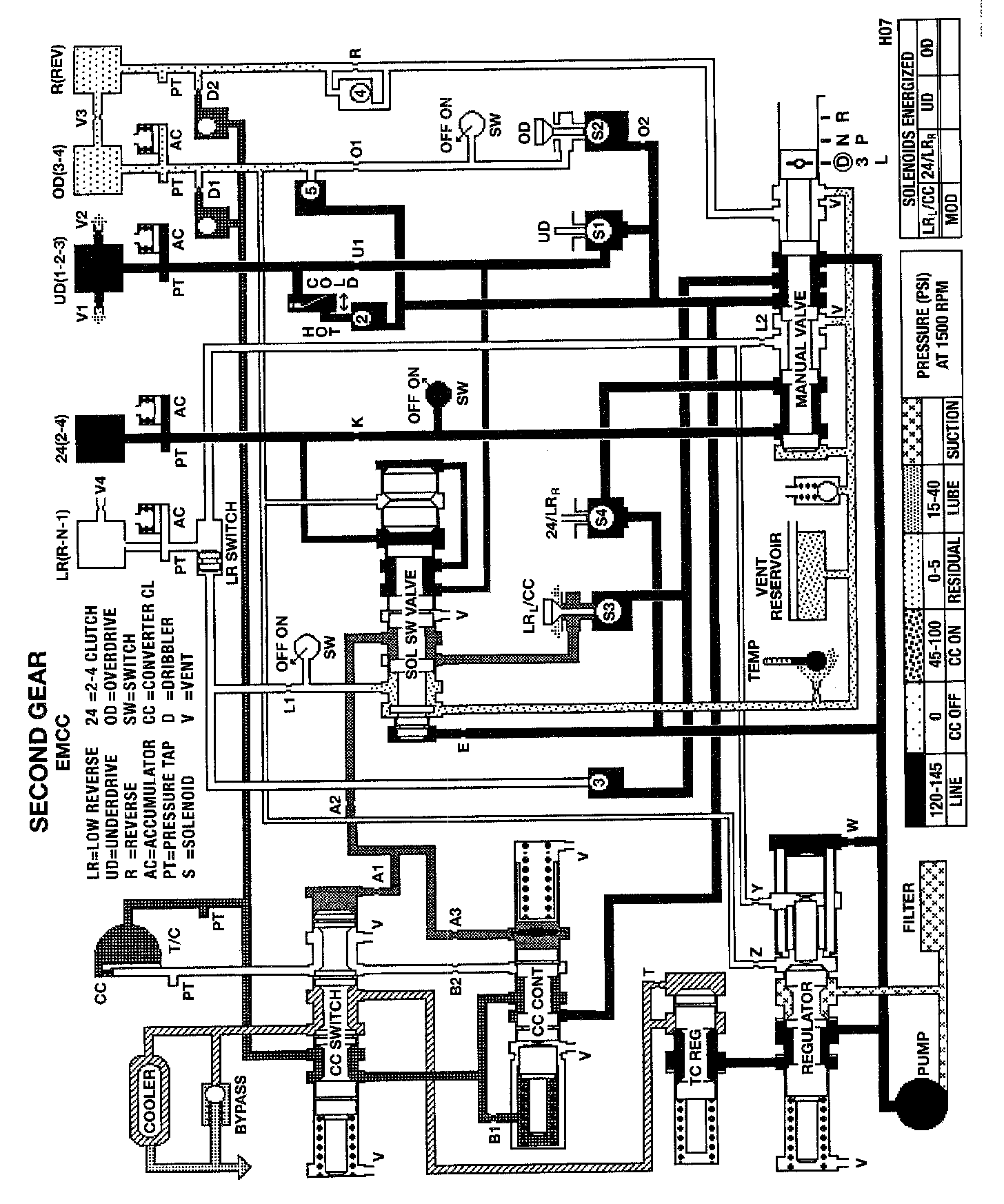

SECOND GEAR (EMCC)

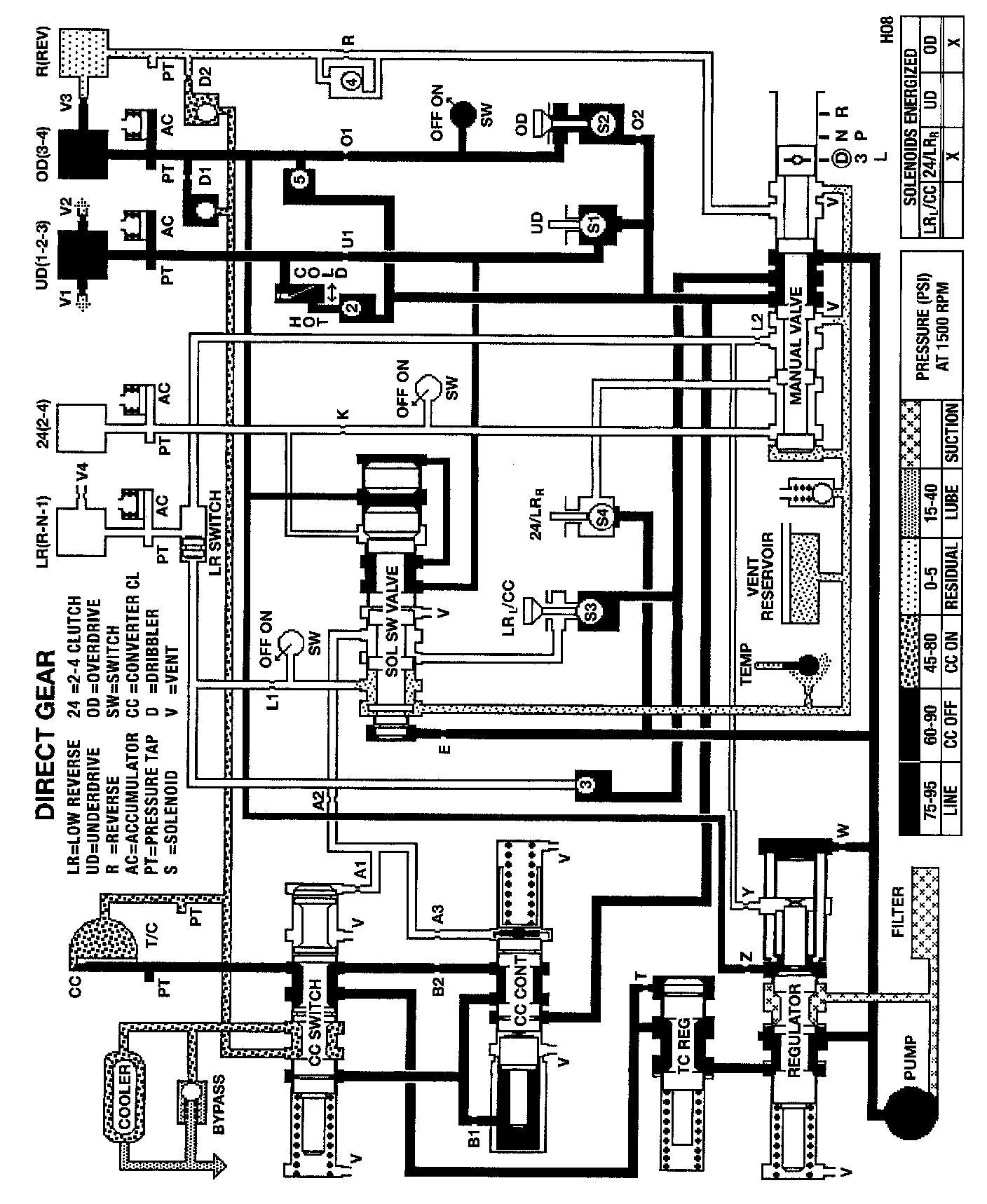

DIRECT GEAR

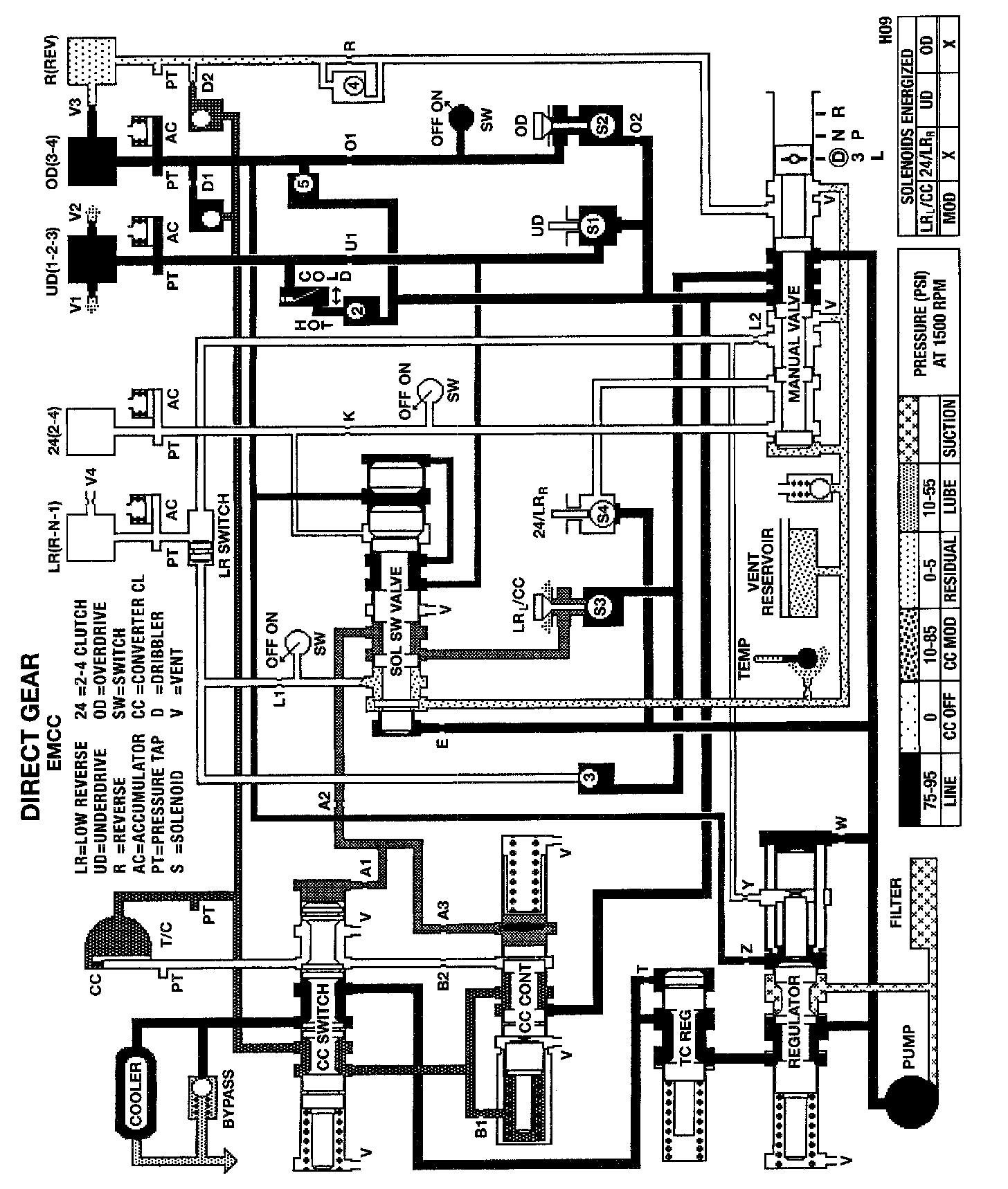

DIRECT GEAR (EMCC)

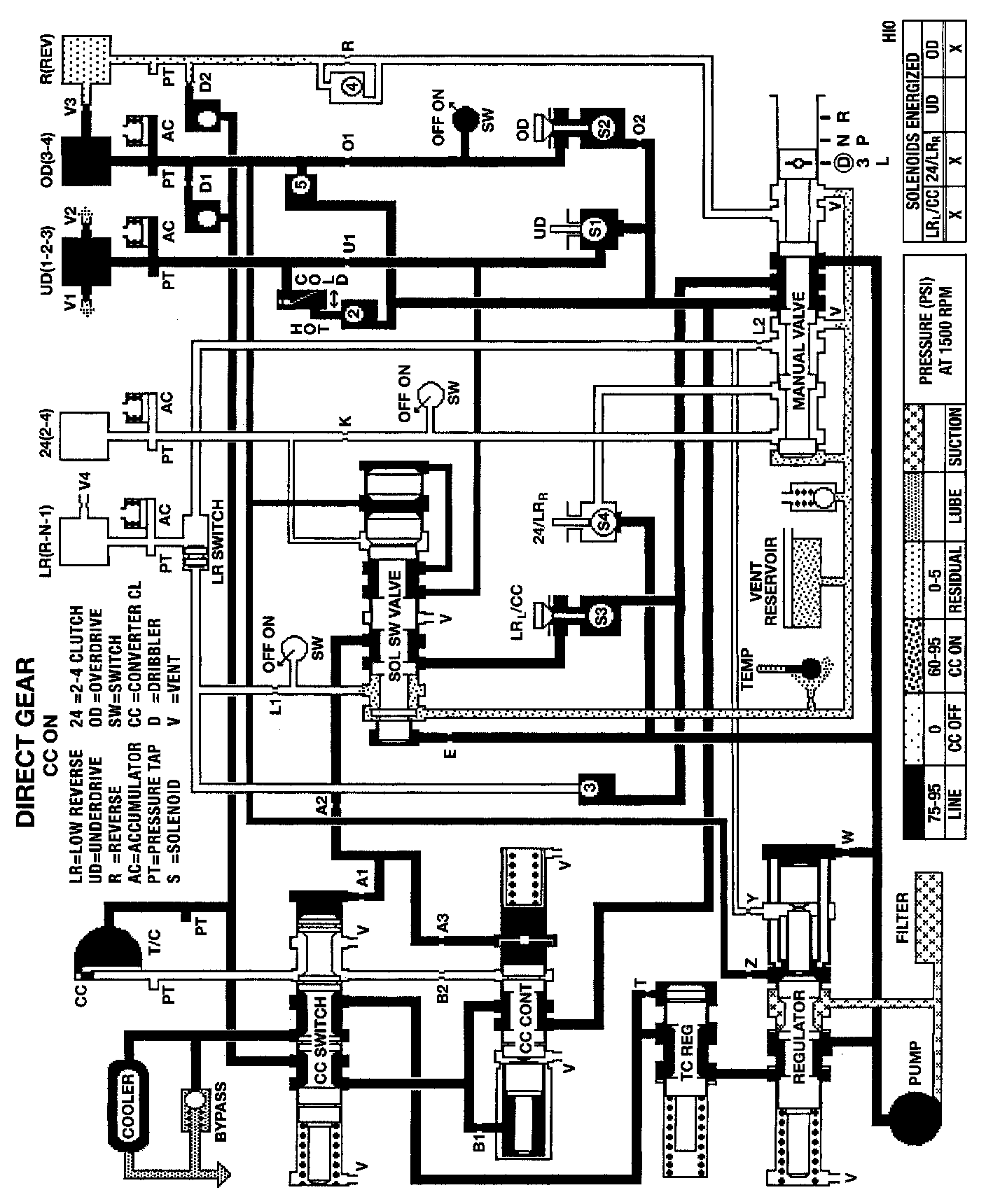

DIRECT GEAR (CC ON)

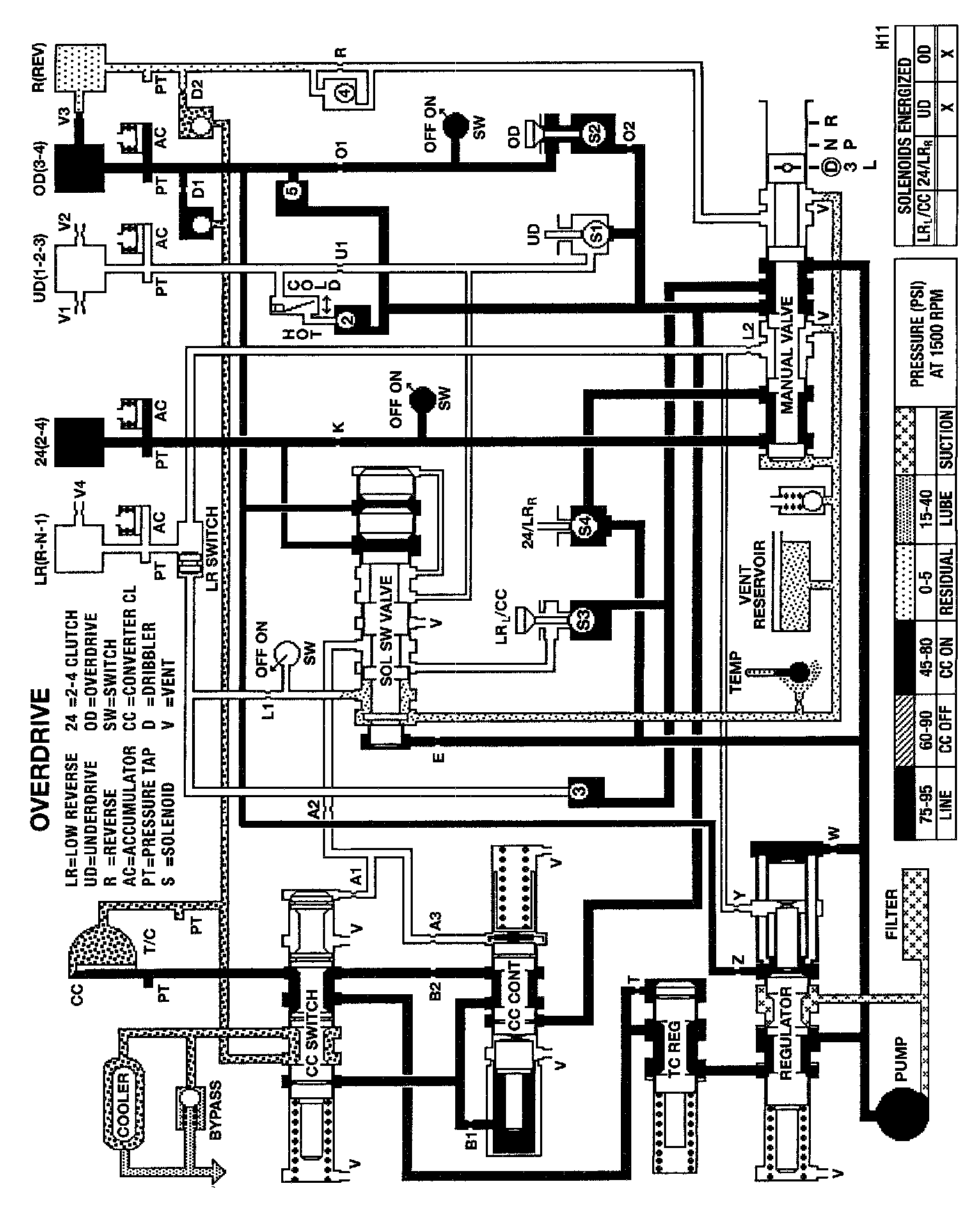

OVERDRIVE

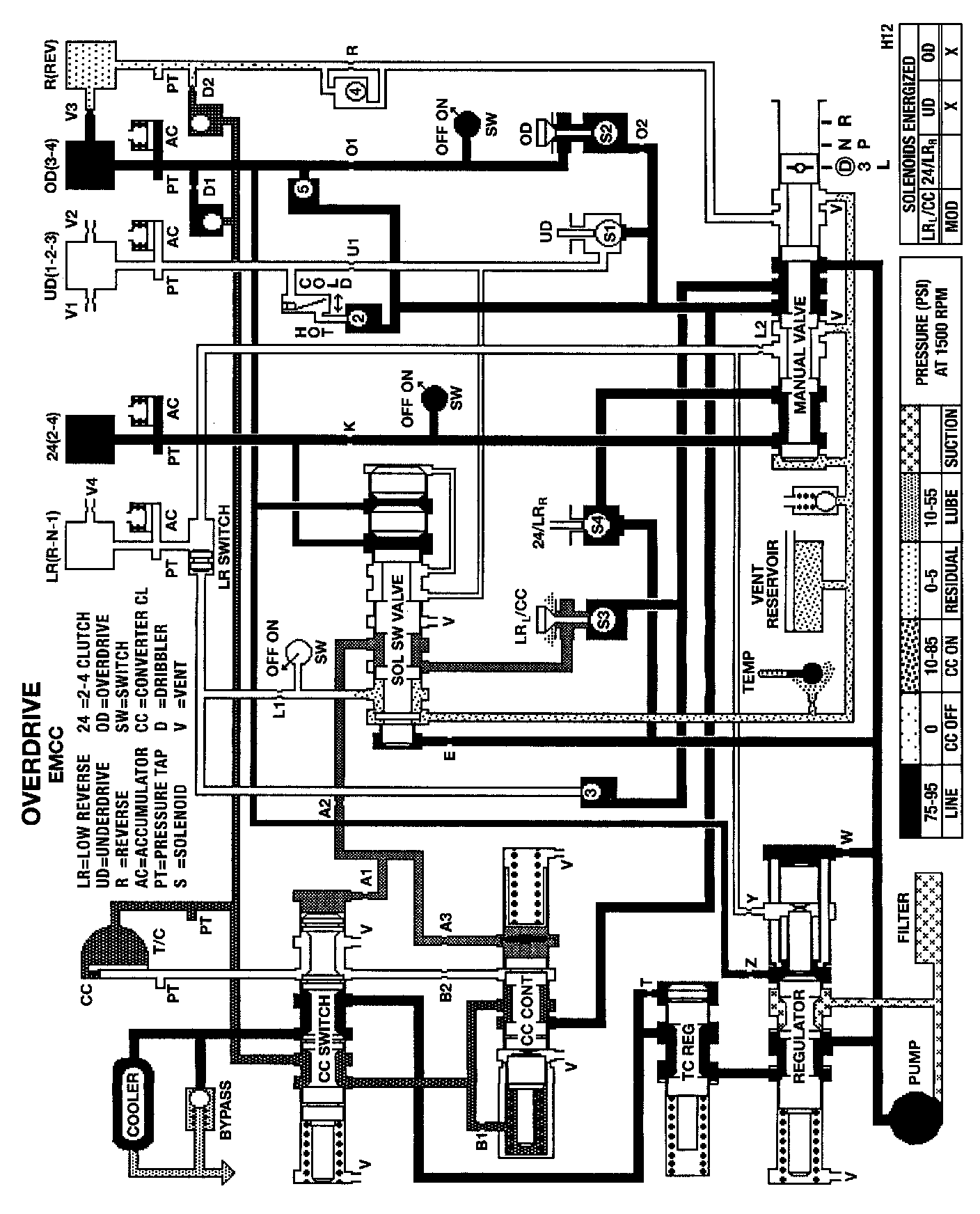

OVERDRIVE (EMCC)

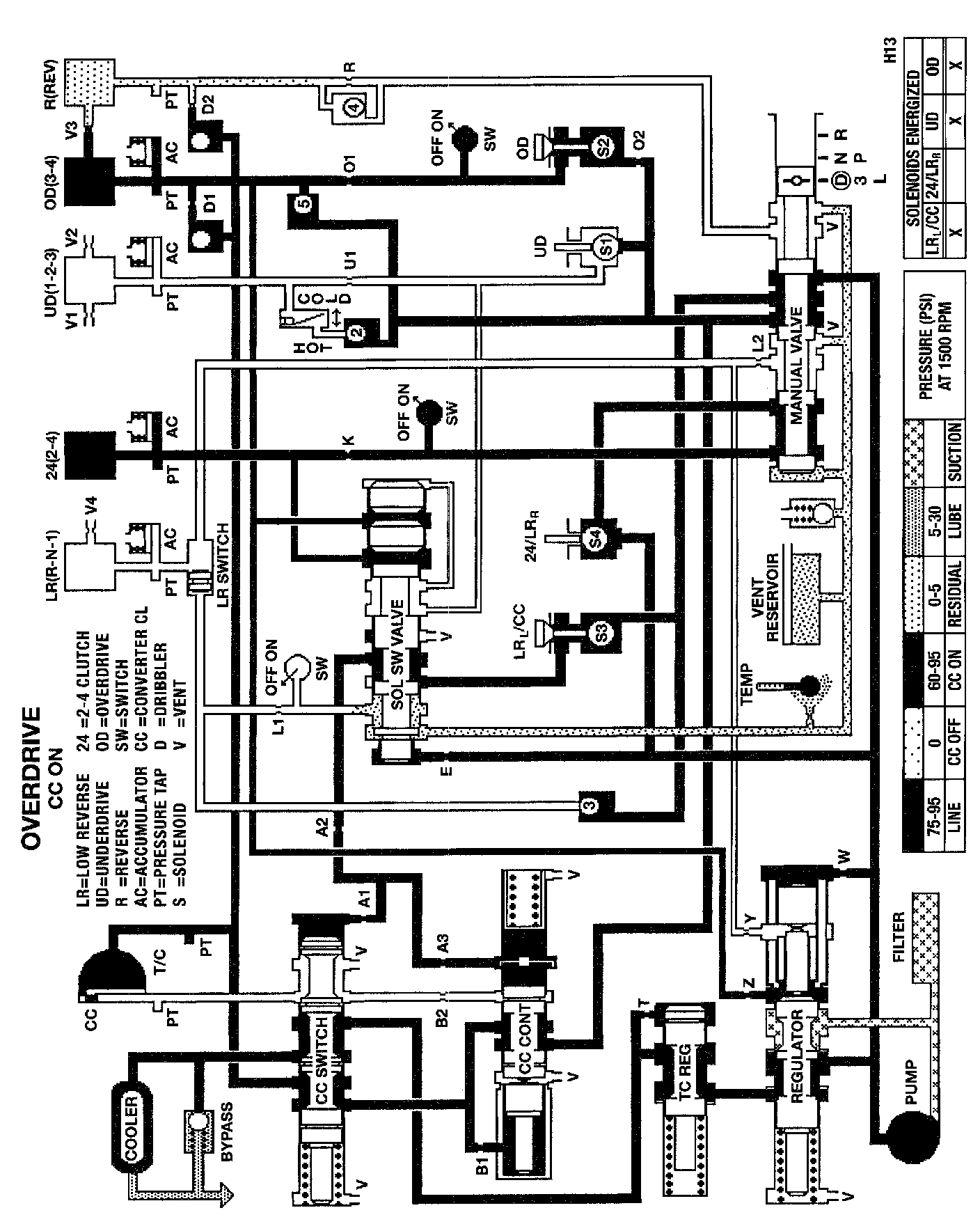

OVERDRIVE (CC ON)
