Low Pressure Sensor / Switch: Locations

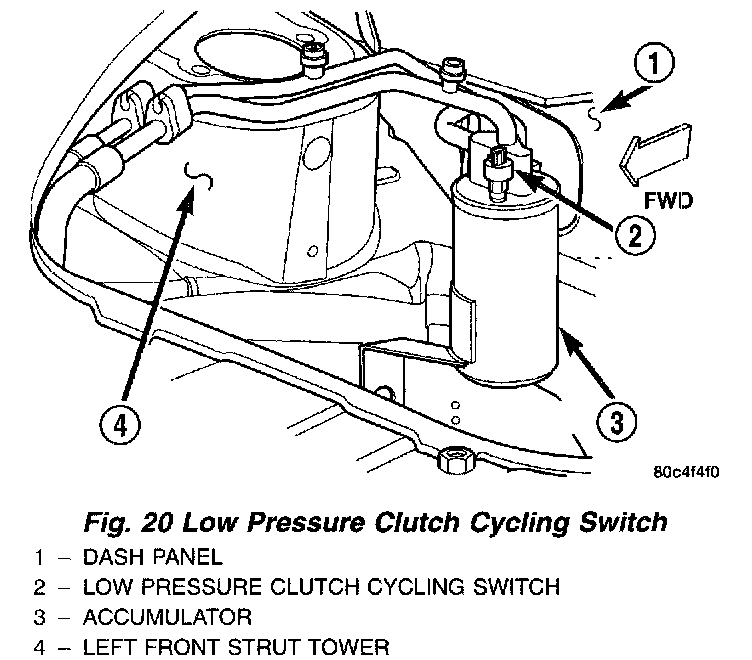

Fig.20 Low Pressure Clutch Cycling Switch:
The low pressure clutch cycling switch is a single pole, single throw, pressure actuated switch that is installed in a threaded port into the suction passage of the accumulator.
