Backup Lamp: Service and Repair

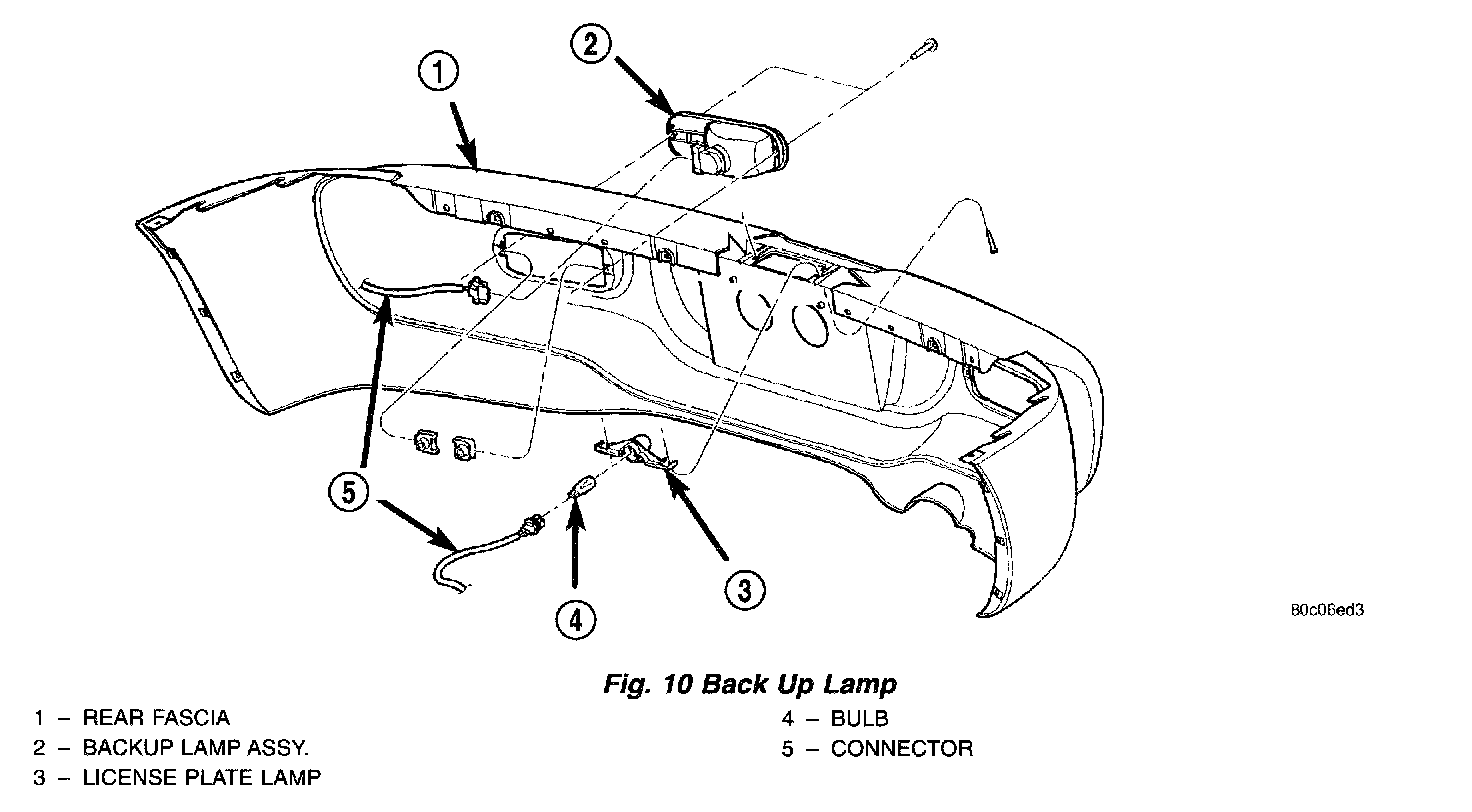

Fig.10 Back Up Lamp:

REMOVAL
1. Remove screws attaching the back up lamp assembly to the fascia.
2. Remove back up lamp assembly.
3. Remove the bulb socket from the lamp housing by rotating the socket counter-clockwise until the socket is free of the housing.

INSTALLATION
1. Install the bulb socket into the lamp housing by rotating the socket clockwise until fully seated.
2. Place back up lamp assembly into position.
3. Test lamp operation
4. Install screws attaching back up lamp to fascia.
