Idle Speed/Throttle Actuator - Electronic: Service and Repair

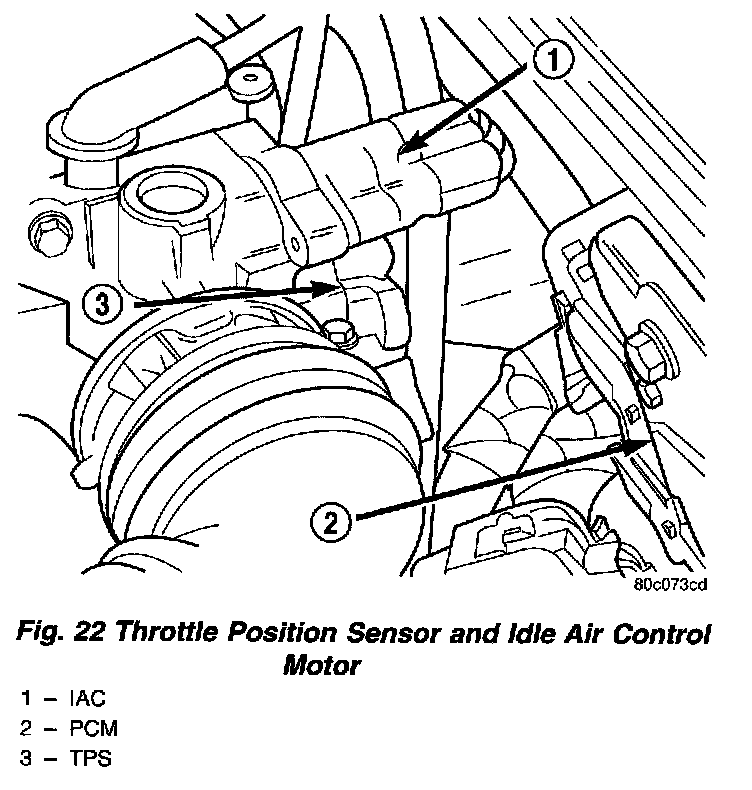

Fig.22 Throttle Position Sensor And Idle Air Control Motor:

The idle air control motor attaches to the side of the throttle body.

REMOVAL
1. Remove the air cleaner lid, disconnect the inlet air temperature sensor and makeup air hose.
2. Remove the negative battery cable.
3. Disconnect electrical connector from idle air control motor.
4. Remove idle air control motor mounting screws.
5. Remove idle air control motor. Ensure O-ring is removed with the motor.

INSTALLATION
1. The new idle air control motor has a new O-ring installed on it. If pintle measures more than 1 inch (25 mm) it must be retracted. Use the DRB AIS Motor Open/Close Test to retract the pintle (battery must be connected.)
2. Carefully place idle air control motor into throttle body.
3. Install mounting screws. Tighten screws to: 6.2 Nm (55 in. lbs.) torque.
4. Attach electrical connectors to idle air control motor.
5. Install the negative battery cable.
6. Install the air cleaner lid, connect the inlet air temperature sensor and makeup air hose.
