Windshield Washer Hose: Service and Repair

REMOVAL

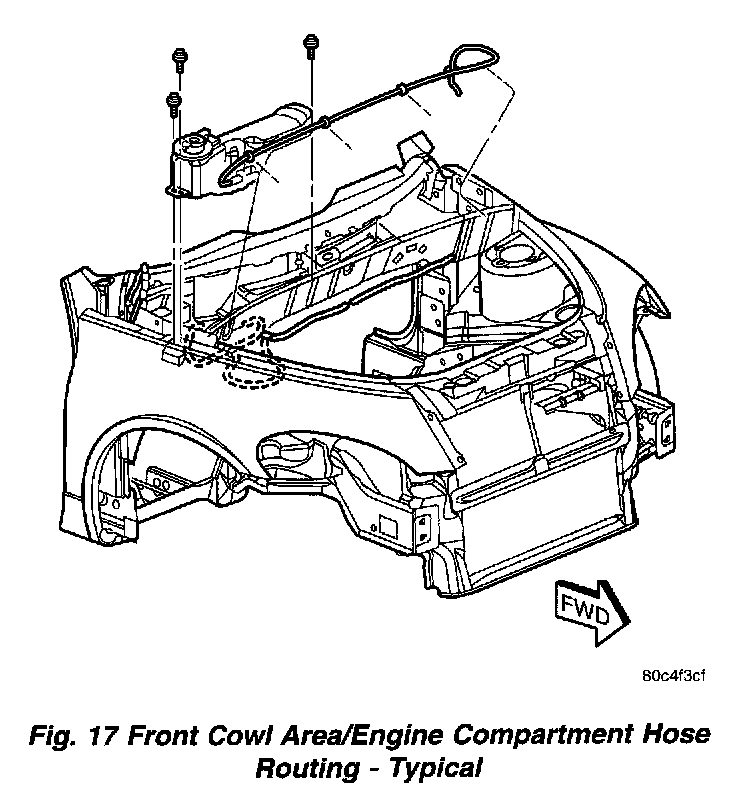

Fig.17 Front Cowl Area/Engine Compartment Hose Routing - Typical:

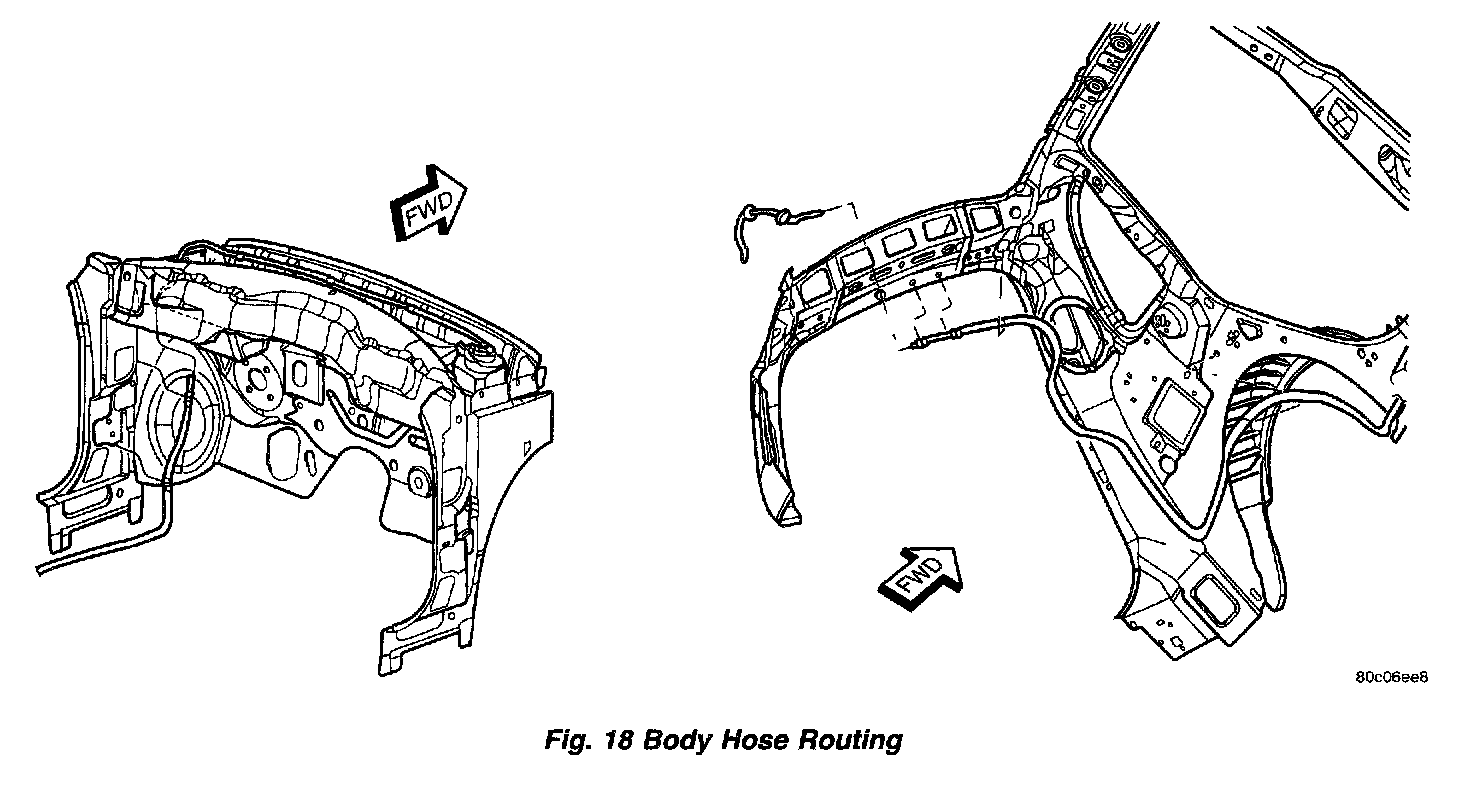

Fig.18 Body Hose Routing:

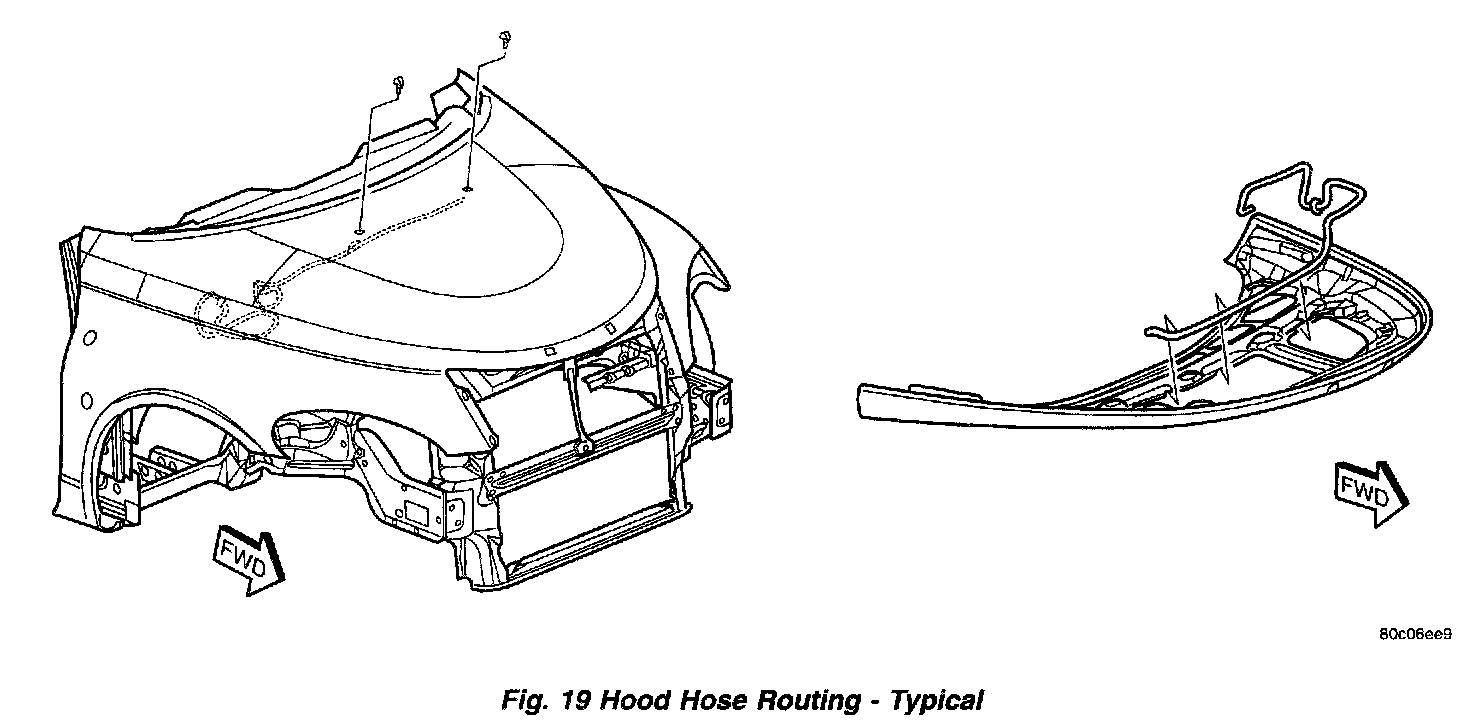

Fig.19 Hood Hose Routing - Typical:

For damaged or plugged windshield washer hose, remove the affected piece of hose and replace with bulk hose. It may be necessary to de-trim parts of the interior to locate the problem portion of hose. Refer to hose routing. Refer also to Body for interior component Removal and Installation.

INSTALLATION
Depending on how much of the vehicle has been de-trimmed, either splice in a small piece of hose or replace the entire length of affected hose. Verify vehicle and system operation upon reassembly.
