Fog/Driving Lamp: Adjustments

Prepare an alignment screen (Refer to LAMPS/LIGHTING - EXTERIOR/HEADLAMP UNIT - ADJUSTMENTS). Disengage the wire connectors from the back of the headlamp bulbs to disable the headlamps. This will allow a more accurate projection reading of the fog lamps. Turn ON the headlamp switch and actuate the fog lamp switch. A properly aligned fog lamp will project a pattern on the alignment screen 100 mm (4 in.) below the fog lamp center line and straight ahead

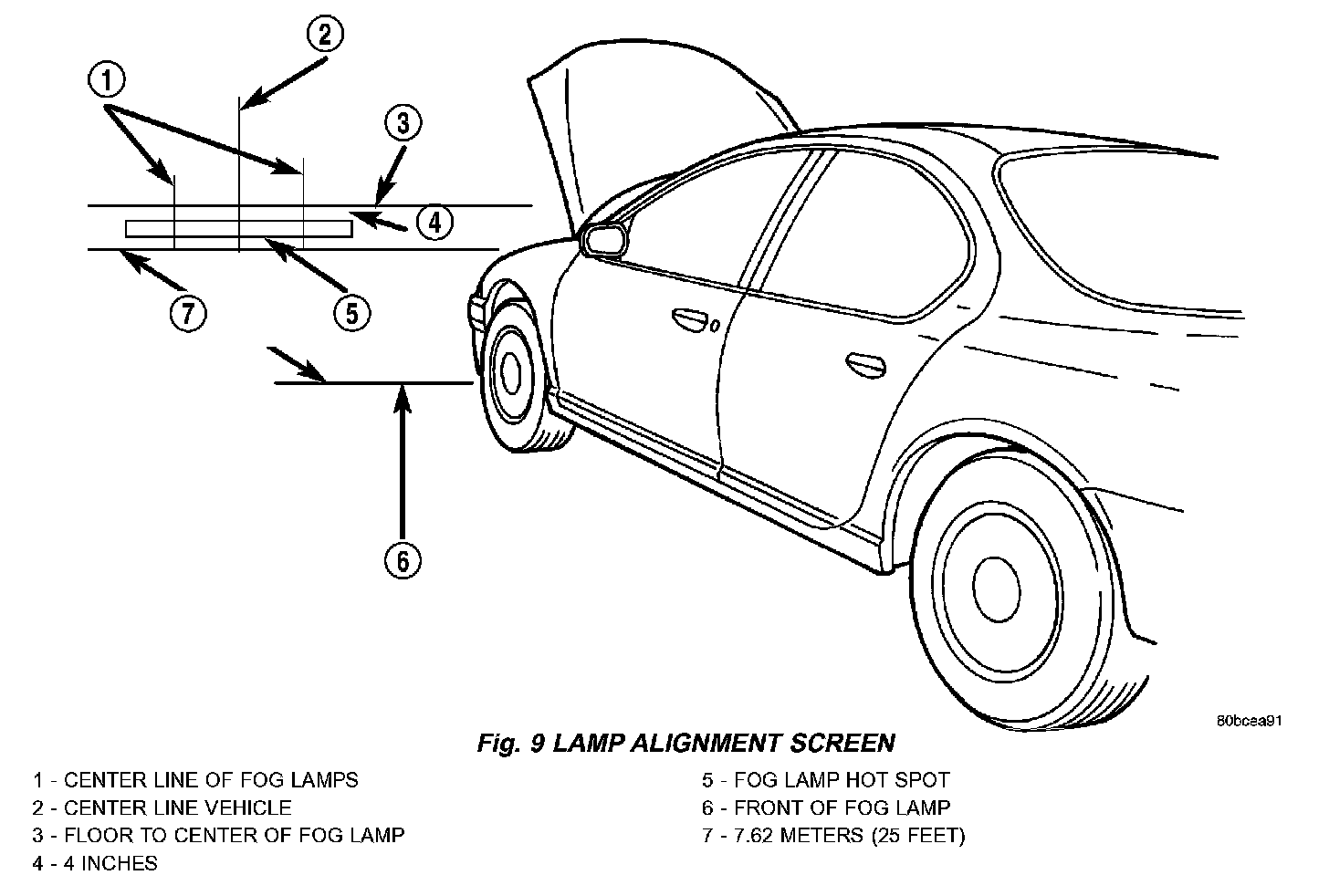

Fig.9 Lamp Alignment Screen:

To adjust fog lamp alignment, rotate the alignment screen located on the bottom of the fog lamp from under the fascia to achieve the specified pattern position..
