Headlamp Replacement

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove screws attaching headlamp module to upper crossmember.
3. Remove headlamp module from vehicle.
4. Disconnect wire connector from back of headlamp bulb.
5. Rotate retaining ring counterclockwise one quarter turn.
6. Remove retaining ring from headlamp module.

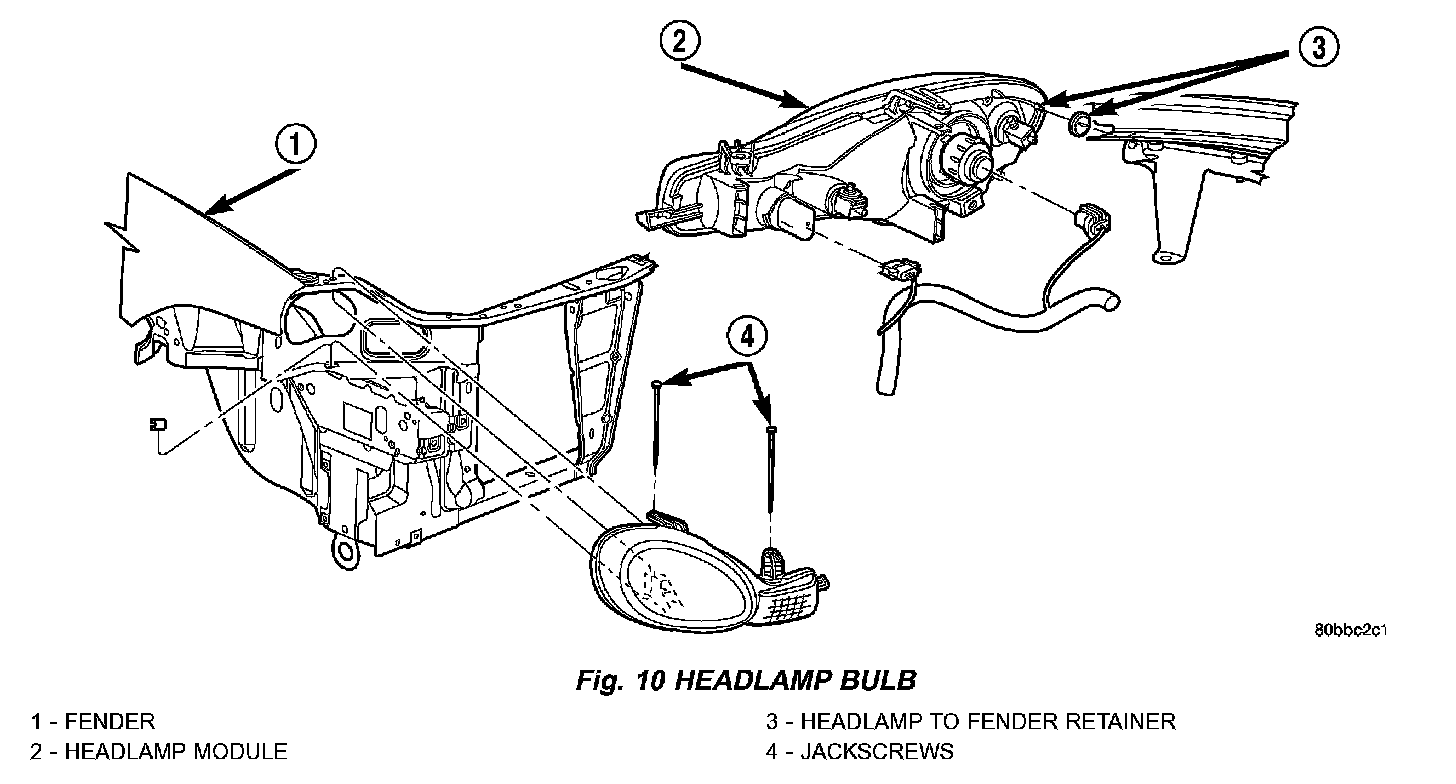

Fig.10 Headlamp Bulb:

7. Remove bulb from headlamp module.

INSTALLATION

CAUTION: Do not touch the glass of halogen bulbs with fingers or other possibly oily surface, reduced bulb life will result.

1. Install bulb into headlamp module.
2. Install retaining ring to headlamp module.
3. Rotate retaining ring clockwise one quarter turn.
4. Connect wire connector to the back of headlamp bulb.
5. Place headlamp module in position.
6. Install screws attaching headlamp module to upper crossmember.
7. Connect the battery negative cable.
