Head Rest: Service and Repair

HEADREST - FRONT/REAR

REMOVAL

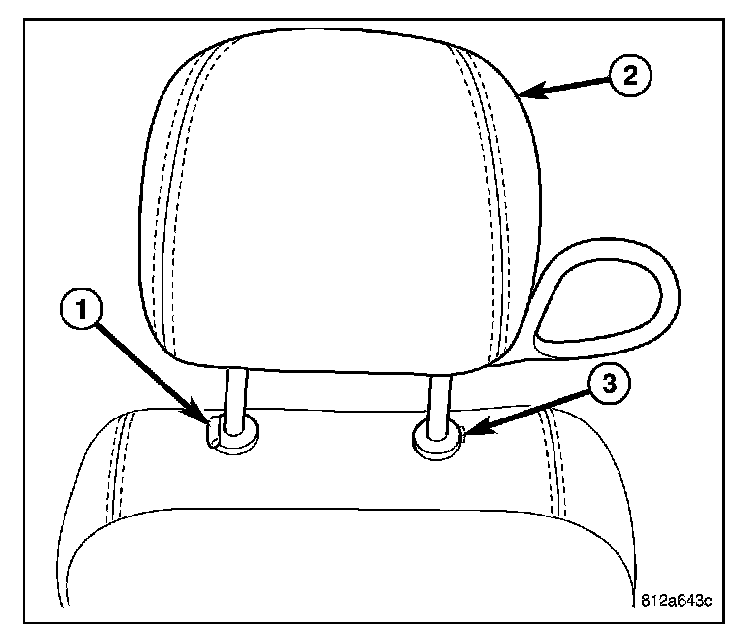

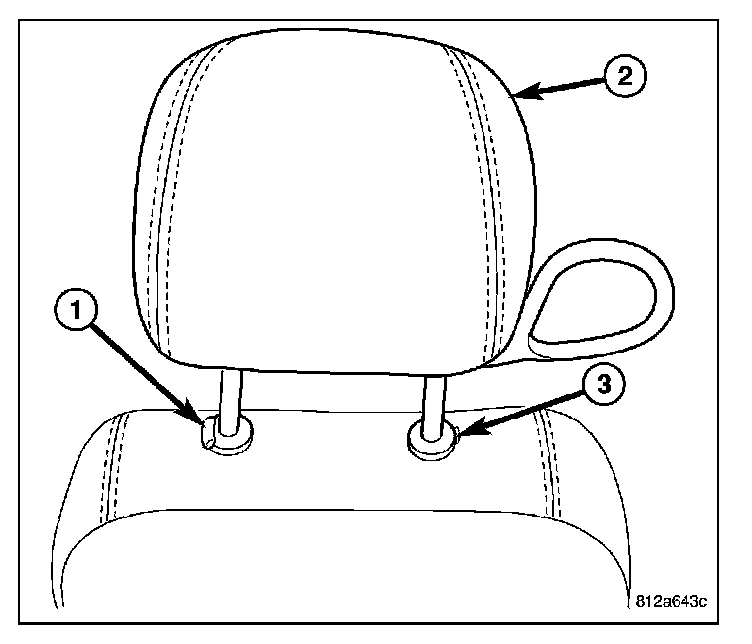

1. Raise headrest (2) by depressing adjuster cap button. To remove headrest (2) from seat depress adjuster cap button (1) and the adjuster cap release tab (3) while raising the headrest upward.

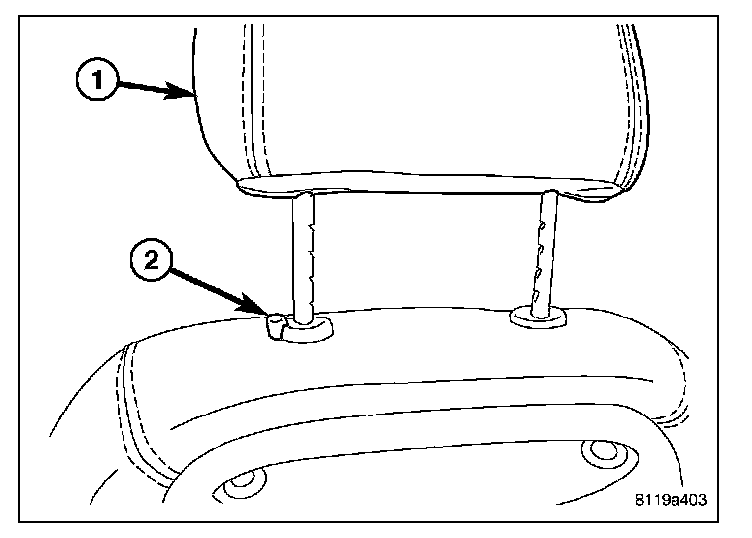

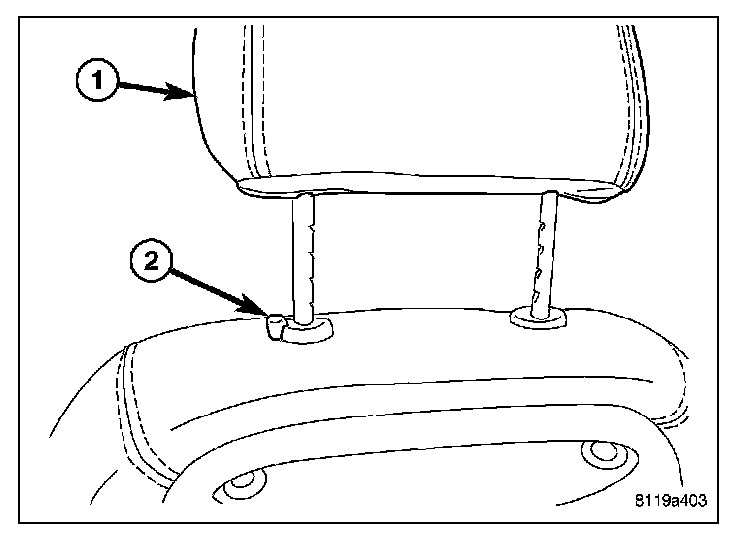

2. To remove headrest (1), at the same time press the button and release tab (2), and while pulling upward to release headrest.
3. Remove headrest from seat back.

INSTALLATION




1. Place headrest into position.
2. Push headrest down into the lock position.




3. Press button to lower headrest and to raise it.
4. Ensure headrest locks at the last stop.
