Fuse Block

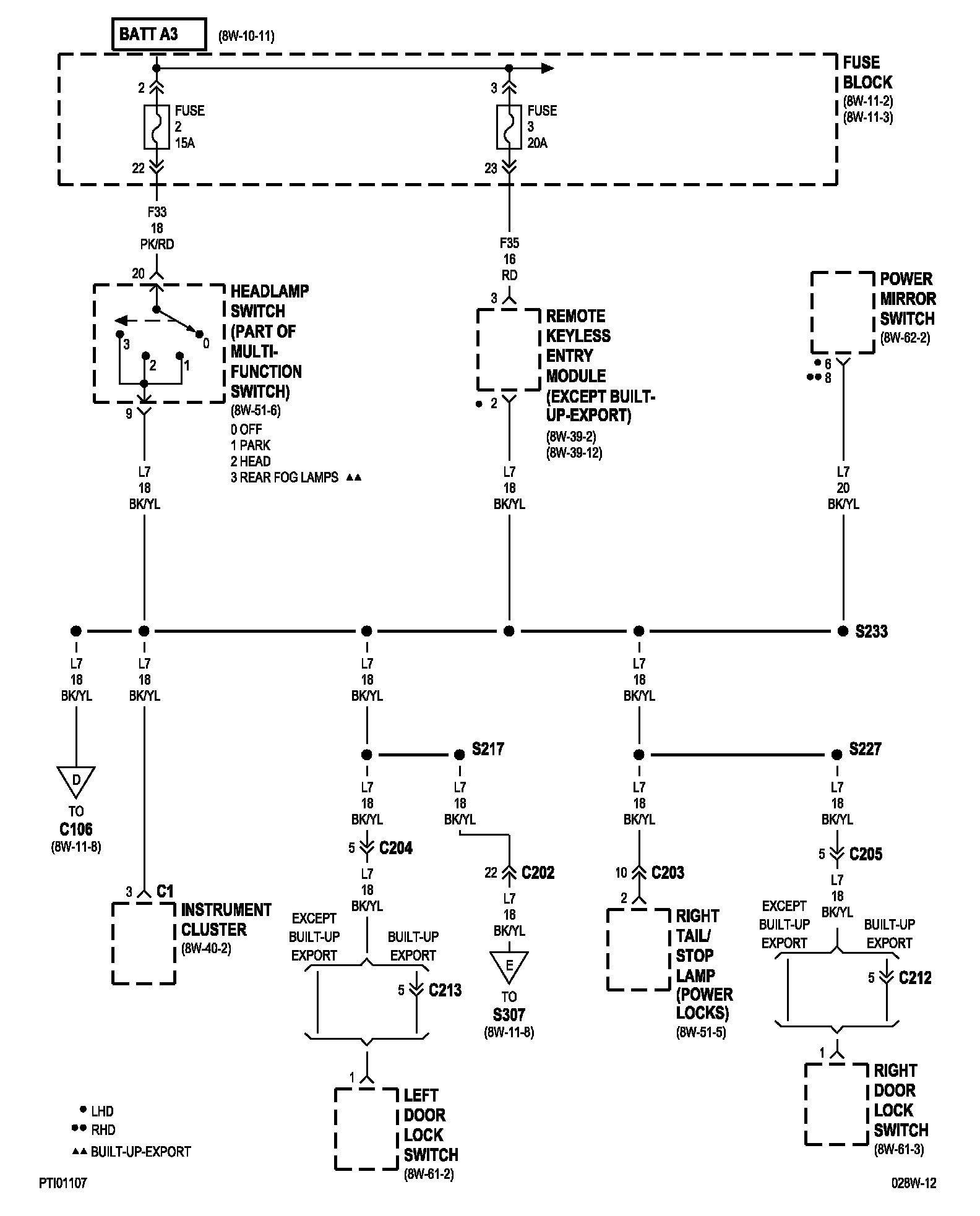

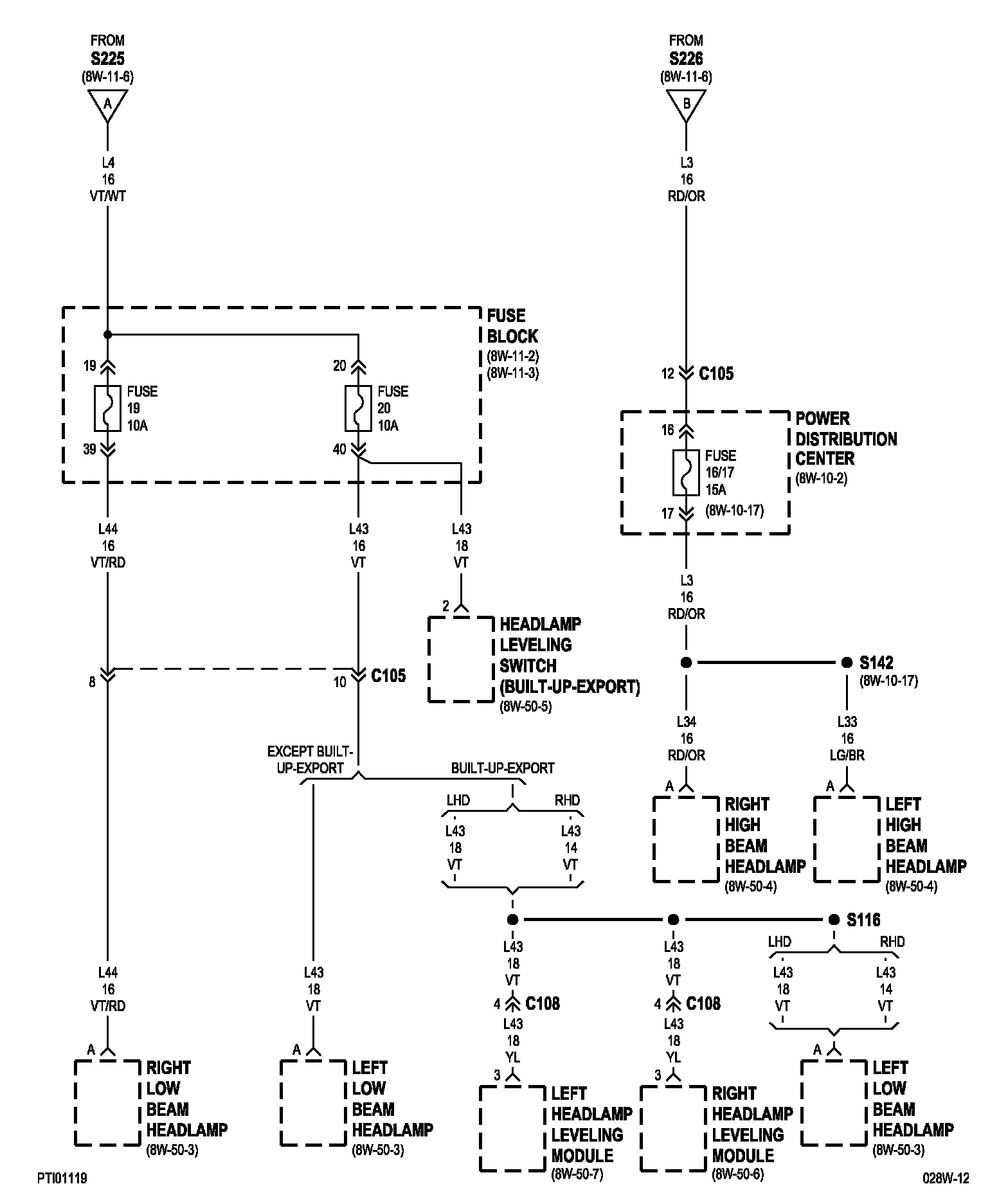

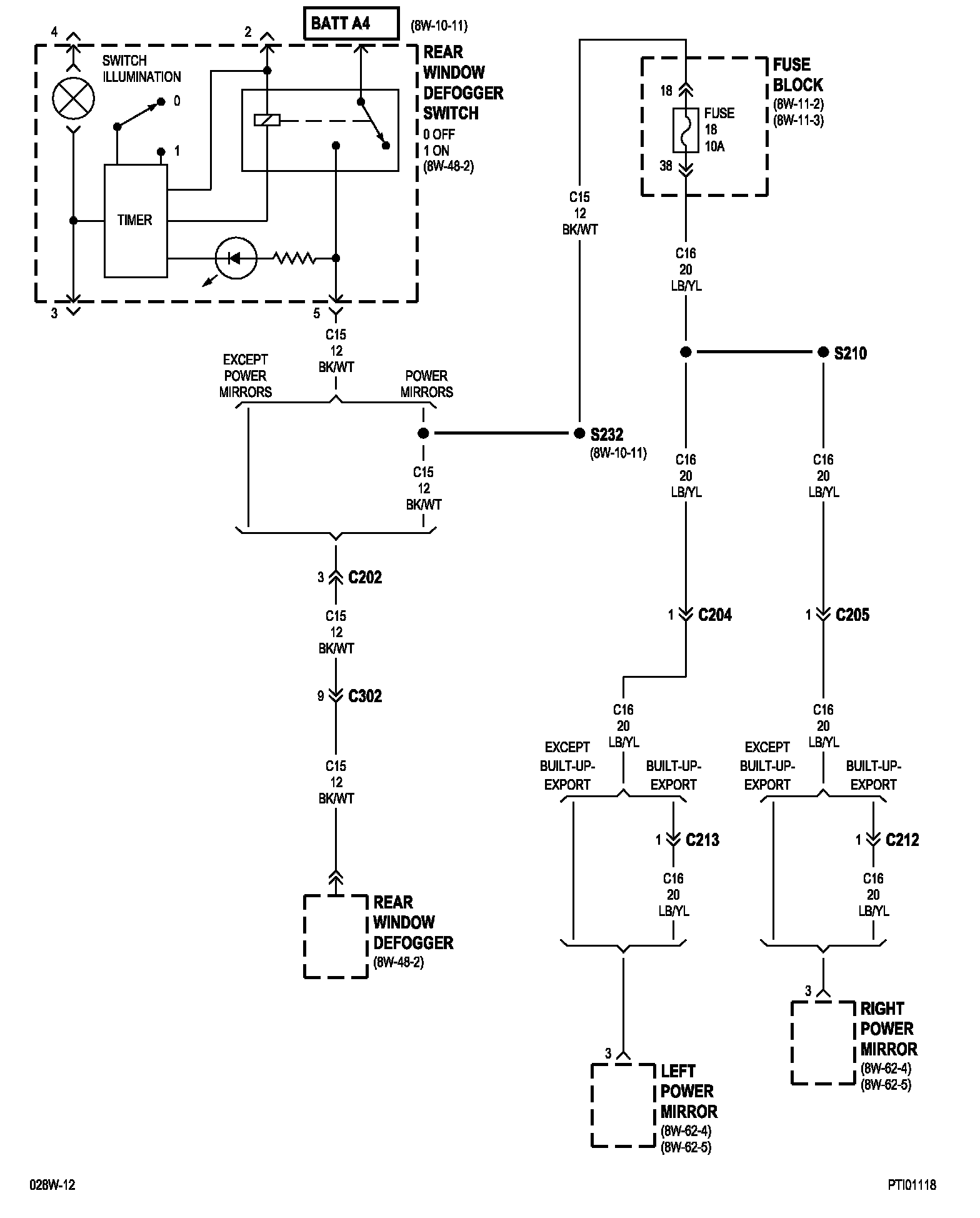

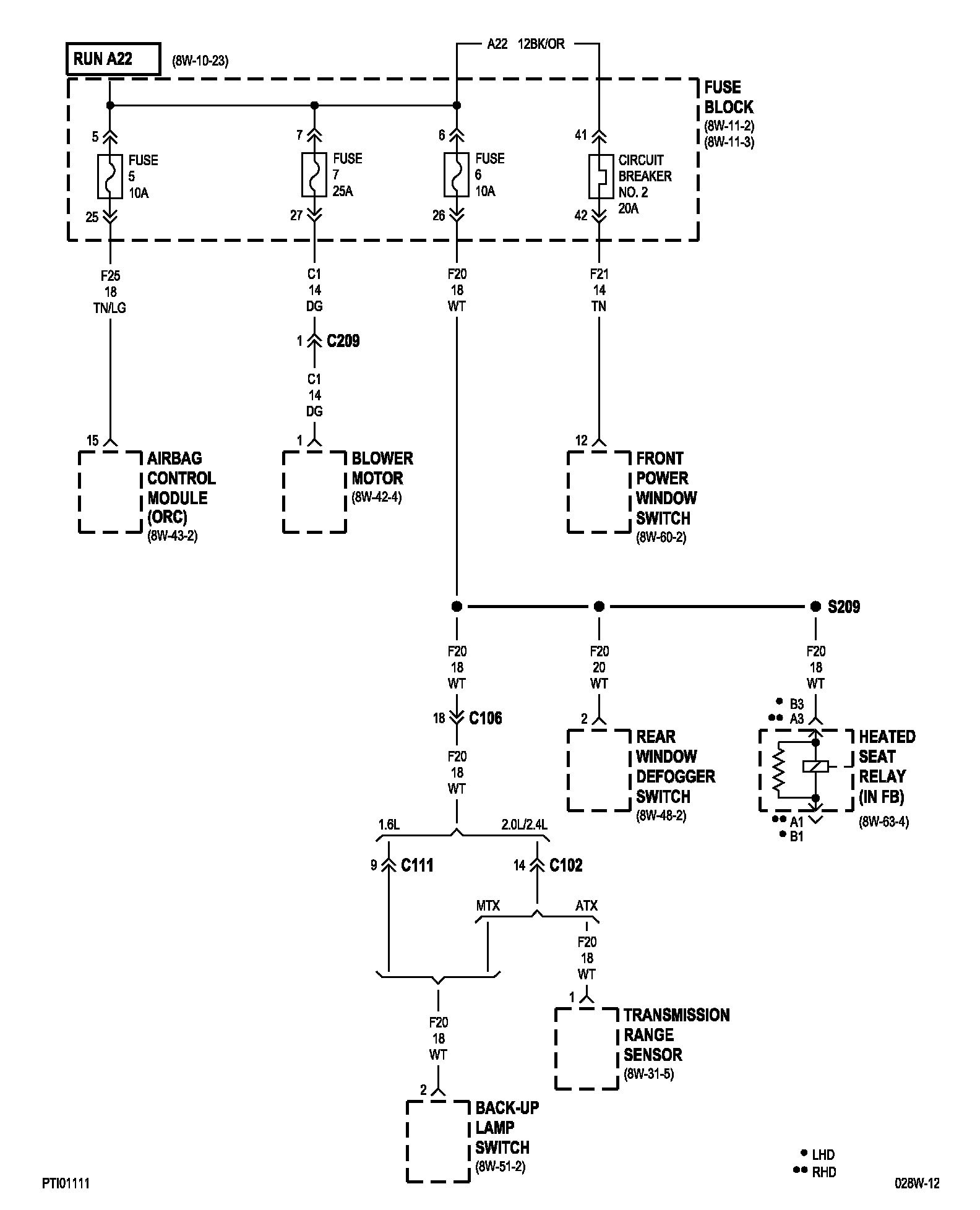

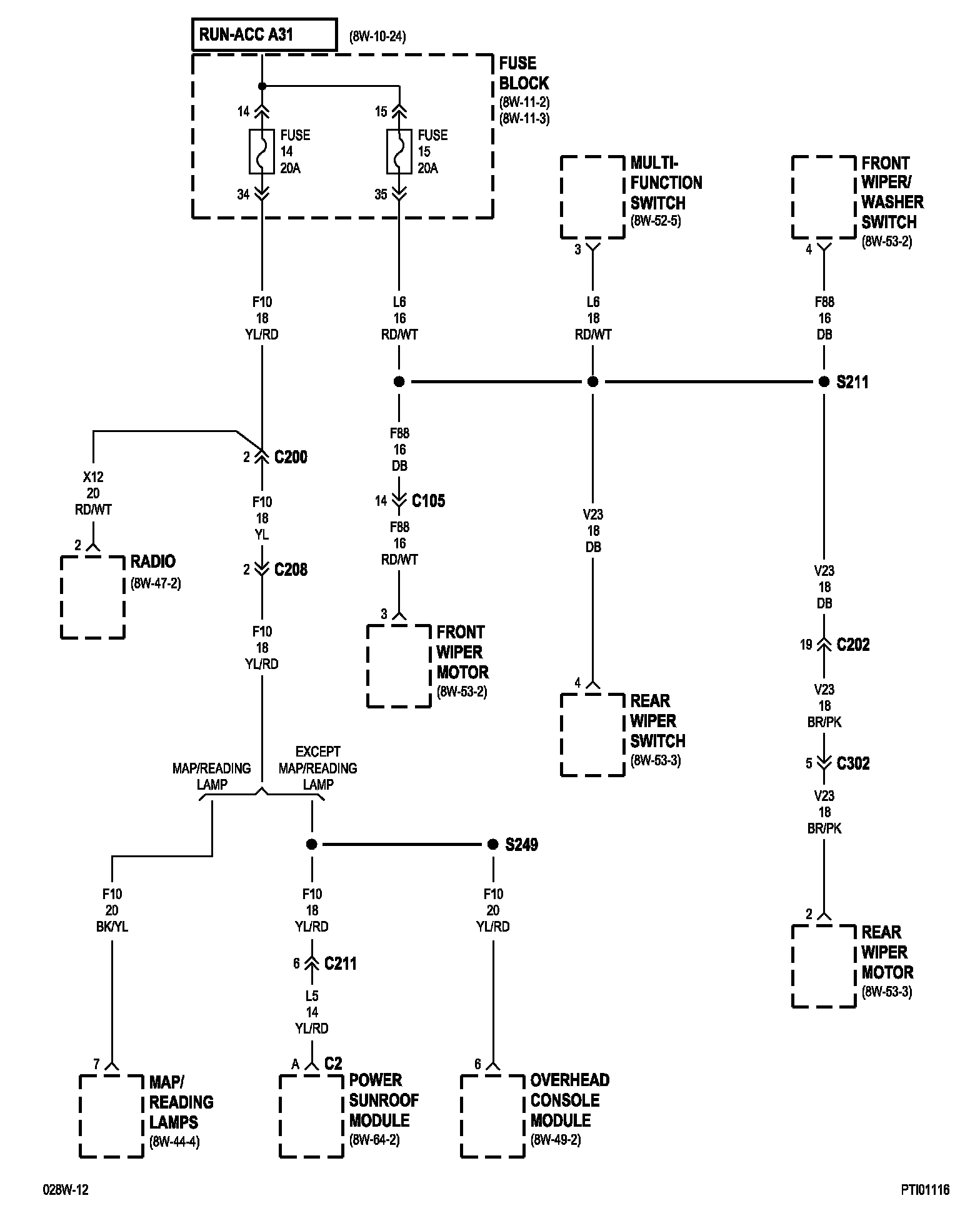

8w-11-6:
8w-11-7:
8w-11-8:
8w-11-9:
8w-11-10:
8w-11-11:
8w-11-12:
8w-11-13:
8w-11-14:
8w-11-15:
8w-11-16:
8w-11-17:

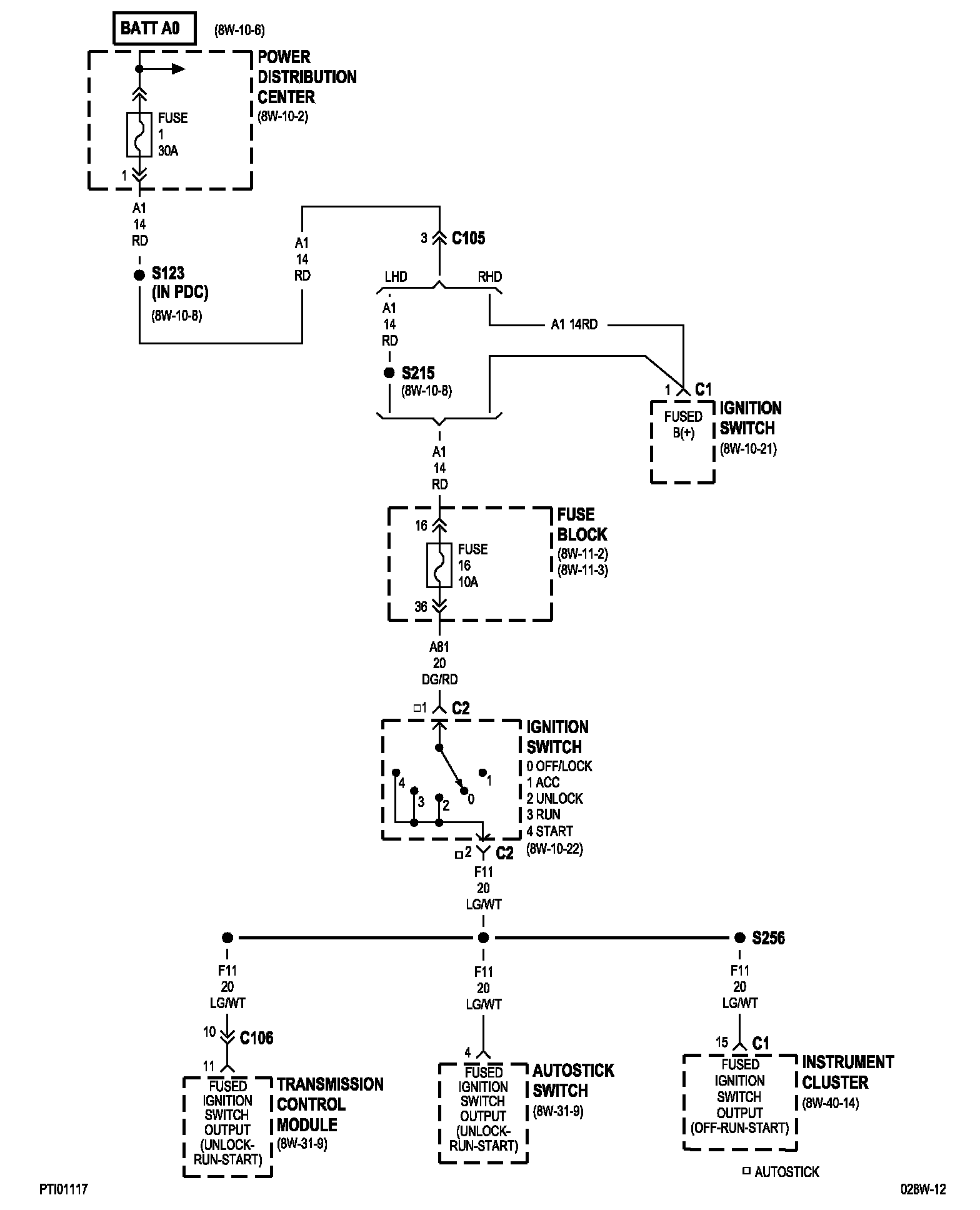

8w-11-18 (Autostick):
8w-11-19:
NOTE: To view sheets referred to in these diagrams, see
Complete Body and Chassis Diagrams.
