Headlamp Leveling Switch - Export Replacement

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the center instrument panel bezel.

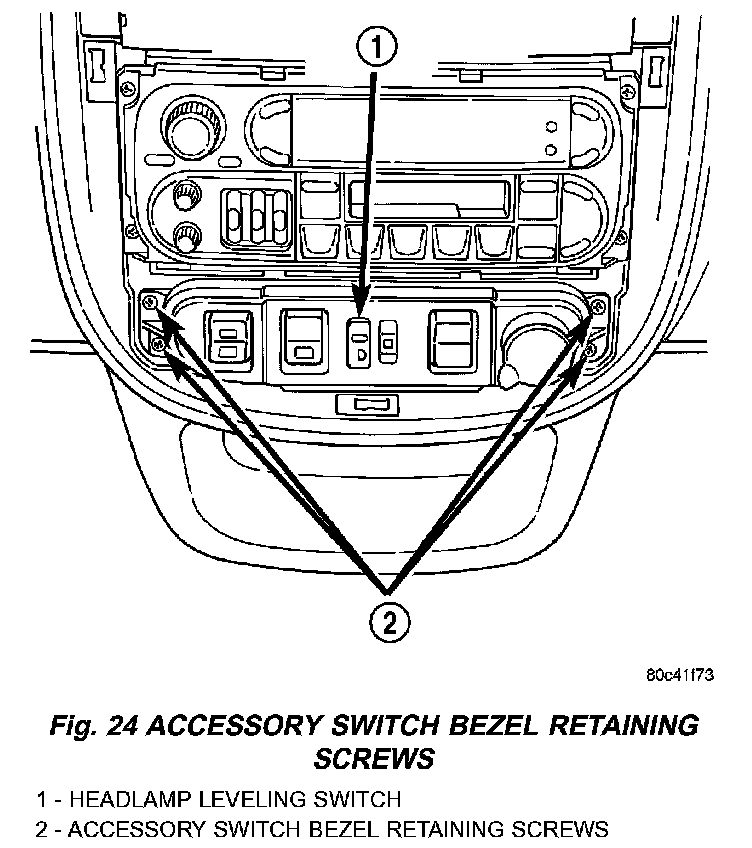

Fig. 24 Accessory Switch Bezel Retaining Screws:

3. Remove the accessory switch bezel retaining screws and pull bezel away from the instrument panel.
4. Disconnect the headlamp leveling switch electrical connector. Depress release tab and pull straight apart.
5. Remove the headlamp leveling switch from the accessory switch bezel.

INSTALLATION
1. Connect the headlamp leveling switch electrical connector.
2. Install the headlamp leveling switch in the accessory switch bezel.
3. Position and install the accessory switch bezel retaining screws.
4. Install the center instrument panel bezel.
5. Connect the battery negative cable.
6. Verify headlamp leveling system operation.
