Checking EVAP System (Without LDP)

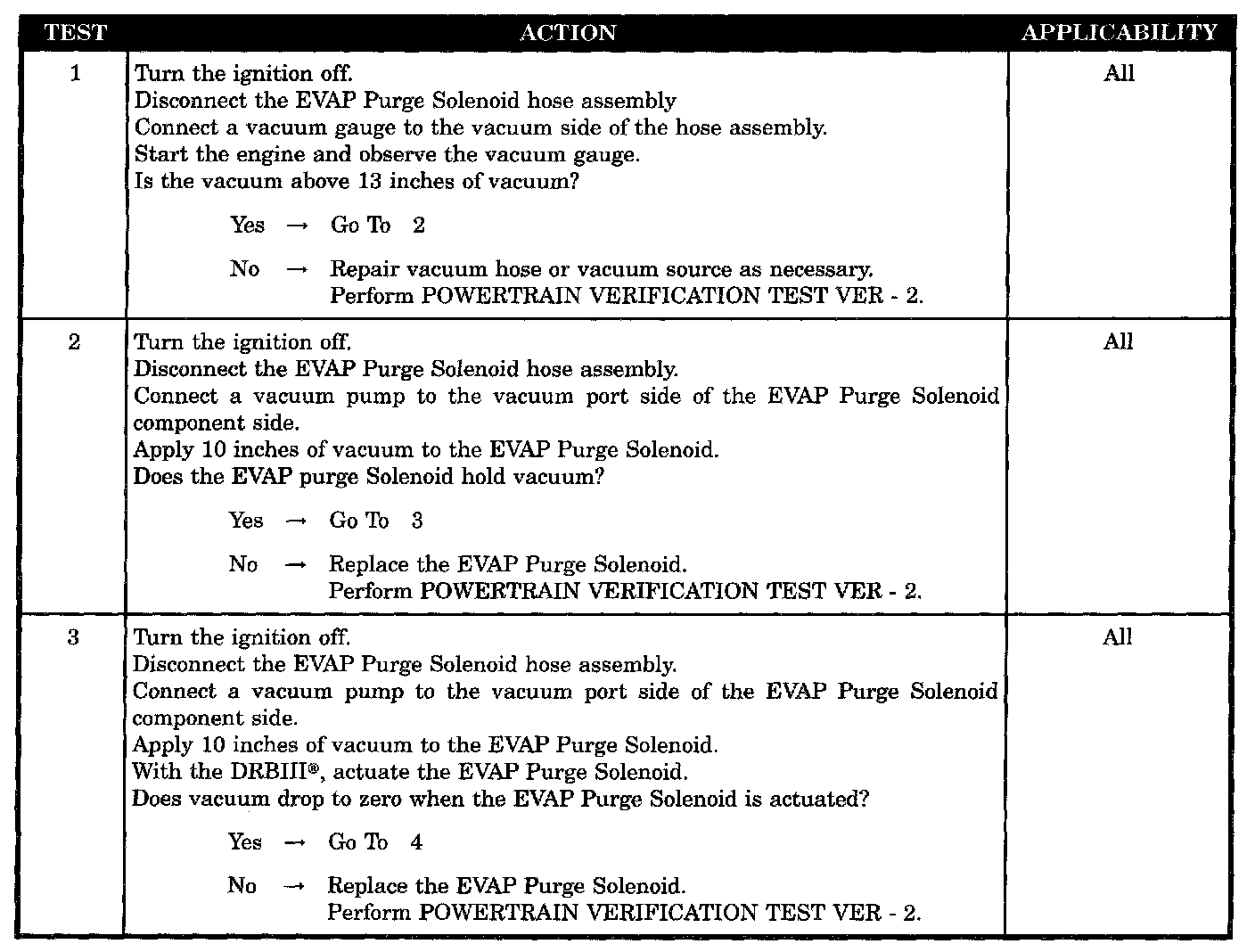

Tests 1 - 3:

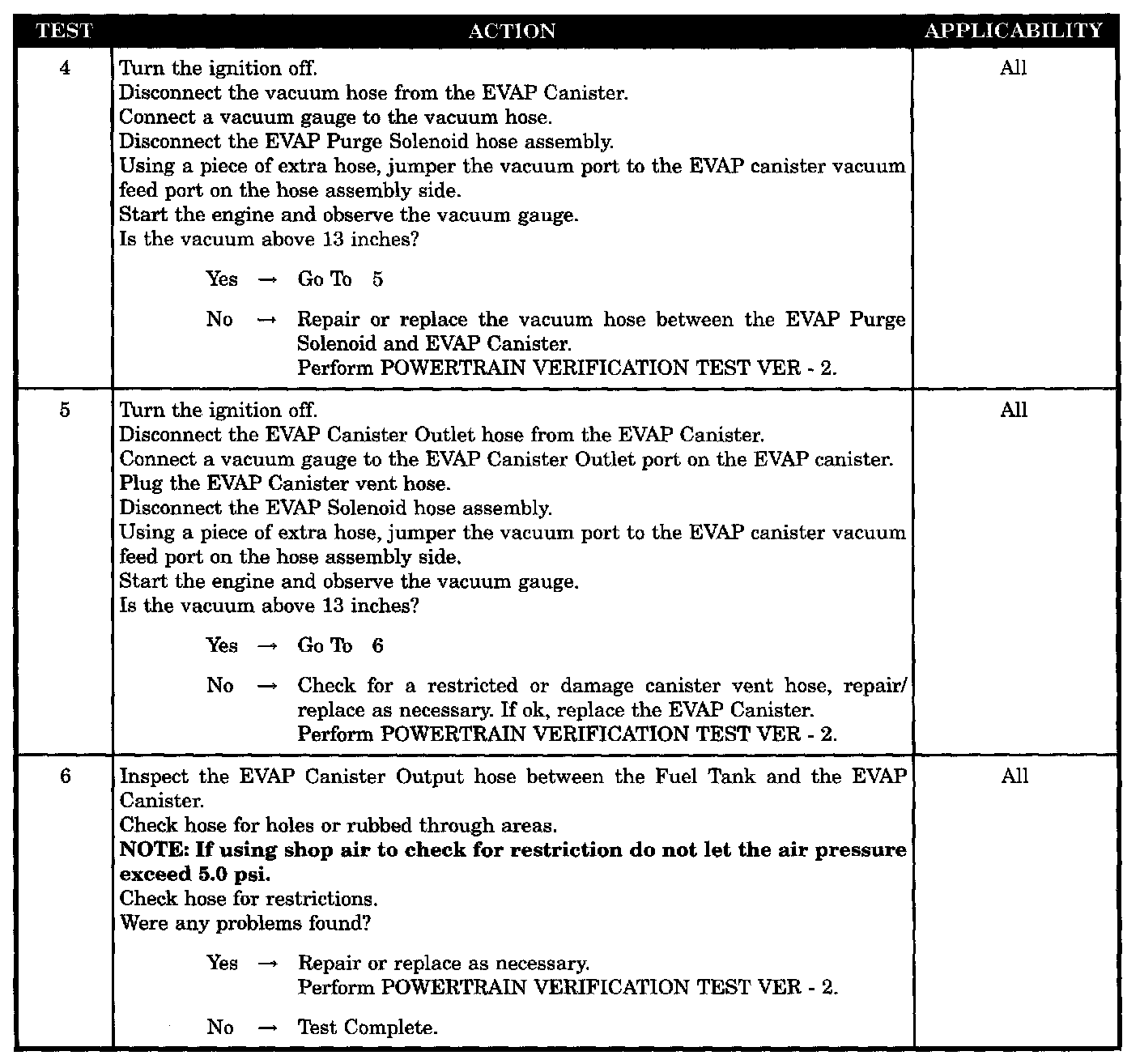

Tests 4 - 6:




SYMPTOM
CHECKING THE EVAP SYSTEM (WITHOUT LDP)

POSSIBLE CAUSES
- EVAP Purge Solenoid Vacuum Hose
- EVAP Purge Solenoid Leaking
- EVAP Purge Solenoid Restiction
- EVAP Canister Vacuum Feed Hose
- EVAP Canister Vent Valve Hose
- EVAP Canister Output Hose Between The Canister And The Fuel Tank
