Shift Boot: Service and Repair

GEAR SHIFT BOOT

REMOVAL





1. Pull up on gearshift knob with moderate force to remove from gearshift mechanism (Fig. 101).

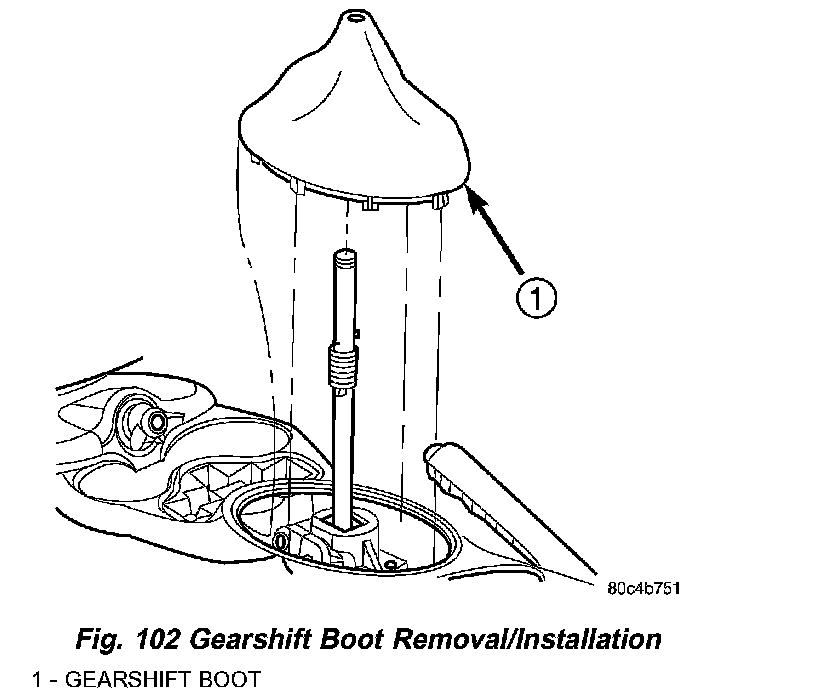

2. Remove shifter boot/bezel assembly from console by lifting up at mounting ring area (Fig. 102).

INSTALLATION
1. Position gearshift boot (Fig. 102) over the gearshift mechanism and engage tab on mount ring at front to opening in console. Apply hand pressure to engage bosses on mount ring of boot to console opening slots.
2. Position gearshift knob hole over the gearshift mechanism (Fig. 101) and align the shift pattern.
3. Strike knob with rubber mallet to engage knob to mechanism.
4. Verify that shift pattern is aligned properly.
