Frame: Description and Operation

FRAME

DESCRIPTION

FRAME FASTENERS

All Prowler fasteners are coated to prevent galvanic corrosion. Any fasteners that require replacement MUST be replaced with the same specific OEM coated fasteners.

SPECIFICATIONS - FRAME DIMENSIONS

Frame dimensions are listed in metric scale. All dimensions are from center to center of Principal Locating Point (PLP), or from center to center of PLP and fastener location.

VEHICLE PREPARATION

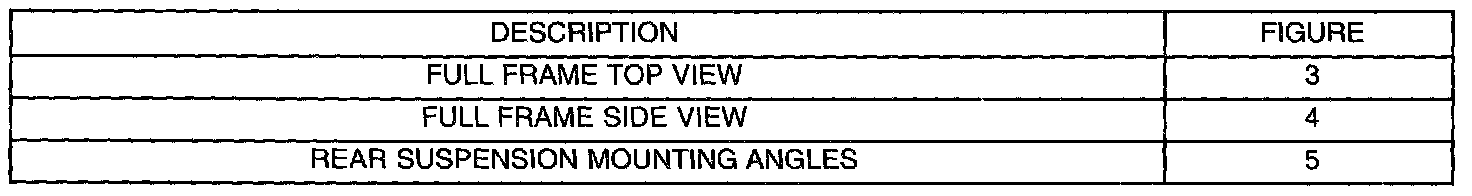

Index:

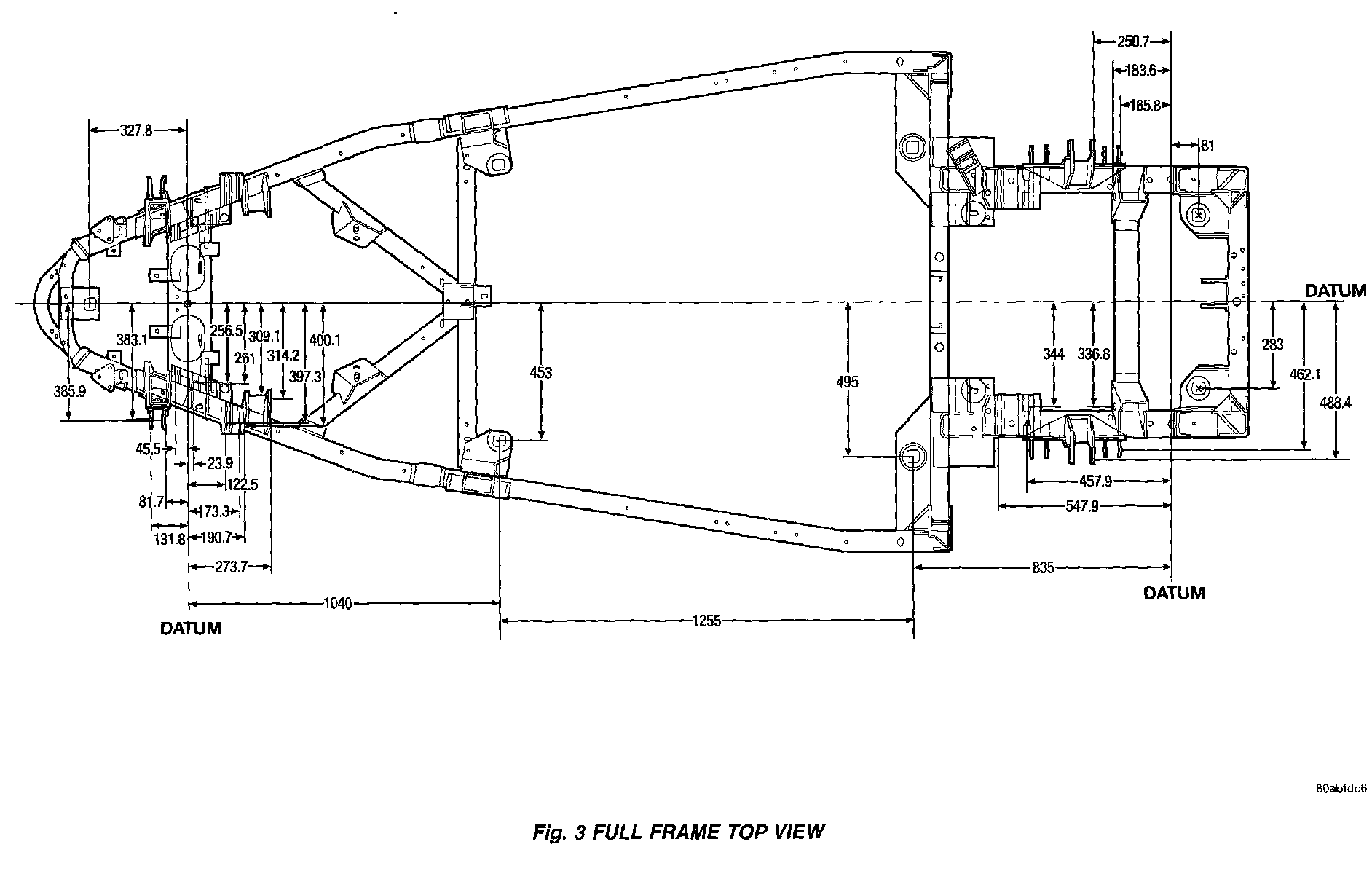

Fig. 3:

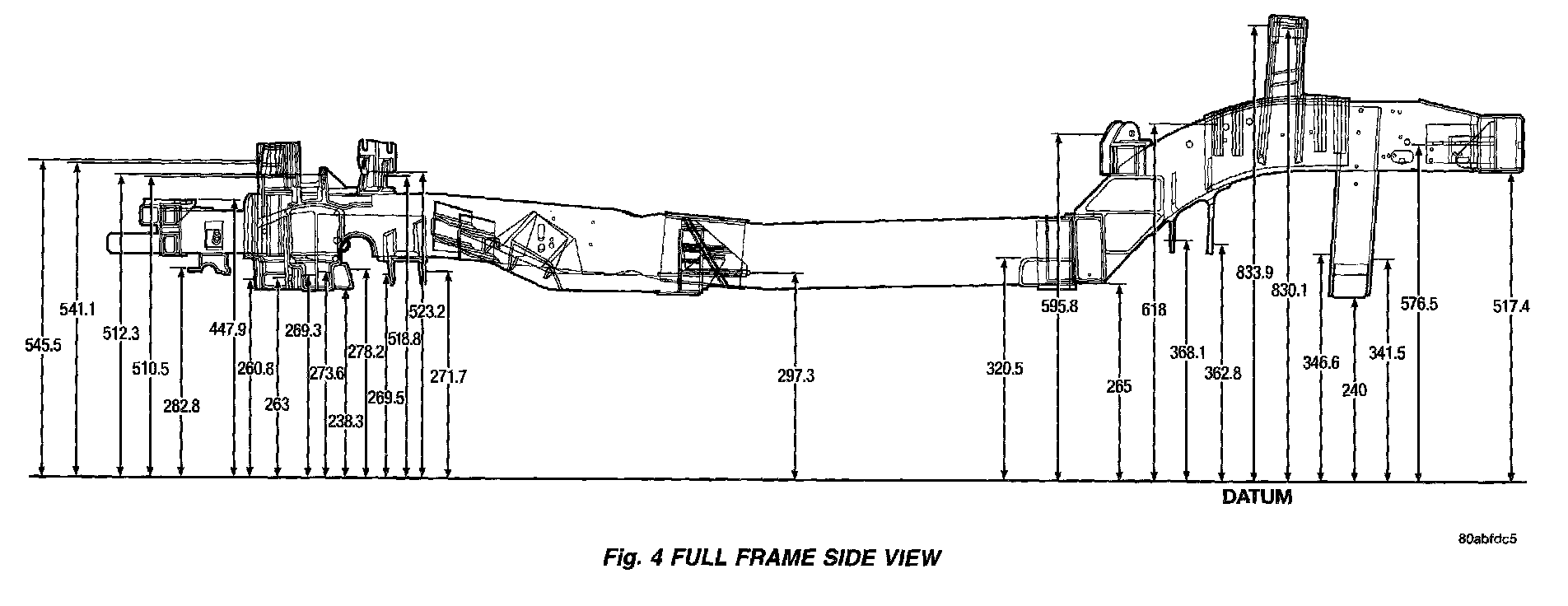

Fig. 4:

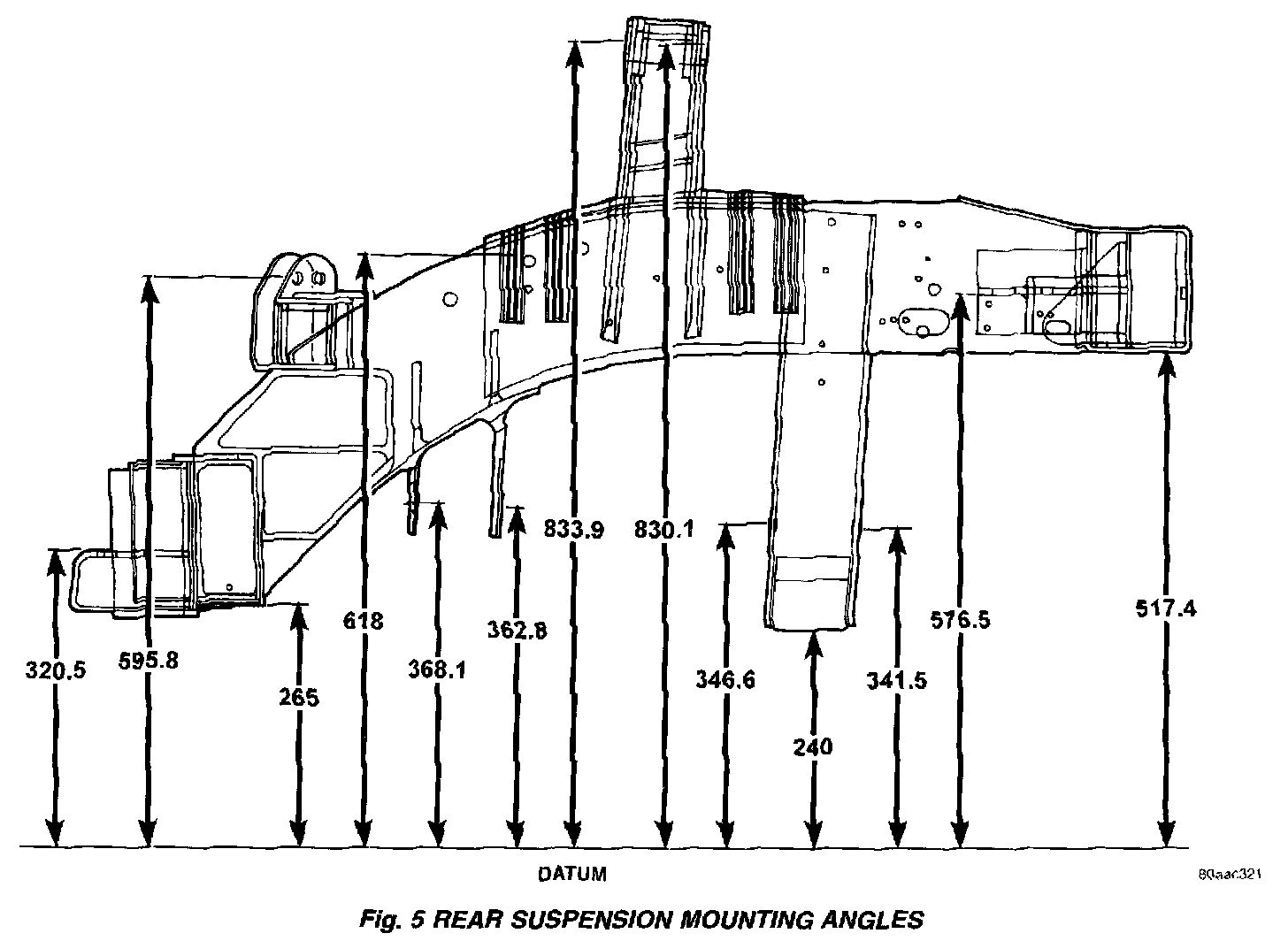

Fig. 5:

Position the vehicle on a level work surface. Using screw or bottle jacks, adjust the vehicle PLP heights to the specified dimension above a level work surface. Vertical dimensions can be taken from the work surface to the locations indicated were applicable.

NOTE: All dimensions in mm.
